UnifyApps enables seamless integration with Amazon Redshift as a source for your data pipelines. This article covers essential configuration elements and best practices for connecting to Redshift sources.
Overview
Amazon Redshift is a fully managed, petabyte-scale data warehouse service optimized for analytics workloads. UnifyApps provides native connectivity to extract data from Redshift clusters efficiently and securely, supporting both historical data loads and continuous data synchronization.
Connection Configuration
| Description | Example |
| Descriptive identifier for your connection | "Production Redshift Analytics" |
| Redshift cluster endpoint | "redshift-cluster.abc123xyz.us-east-1.redshift.amazonaws.com" |
| Database port | 5439 (default) |
| Database username with read permissions | "unify_reader" |
| Authentication credentials | "********" |
| Name of your Redshift database | "analytics_db" |
| Database server's timezone | "UTC" |
| Method of connecting to the database | Direct or Via SSH |

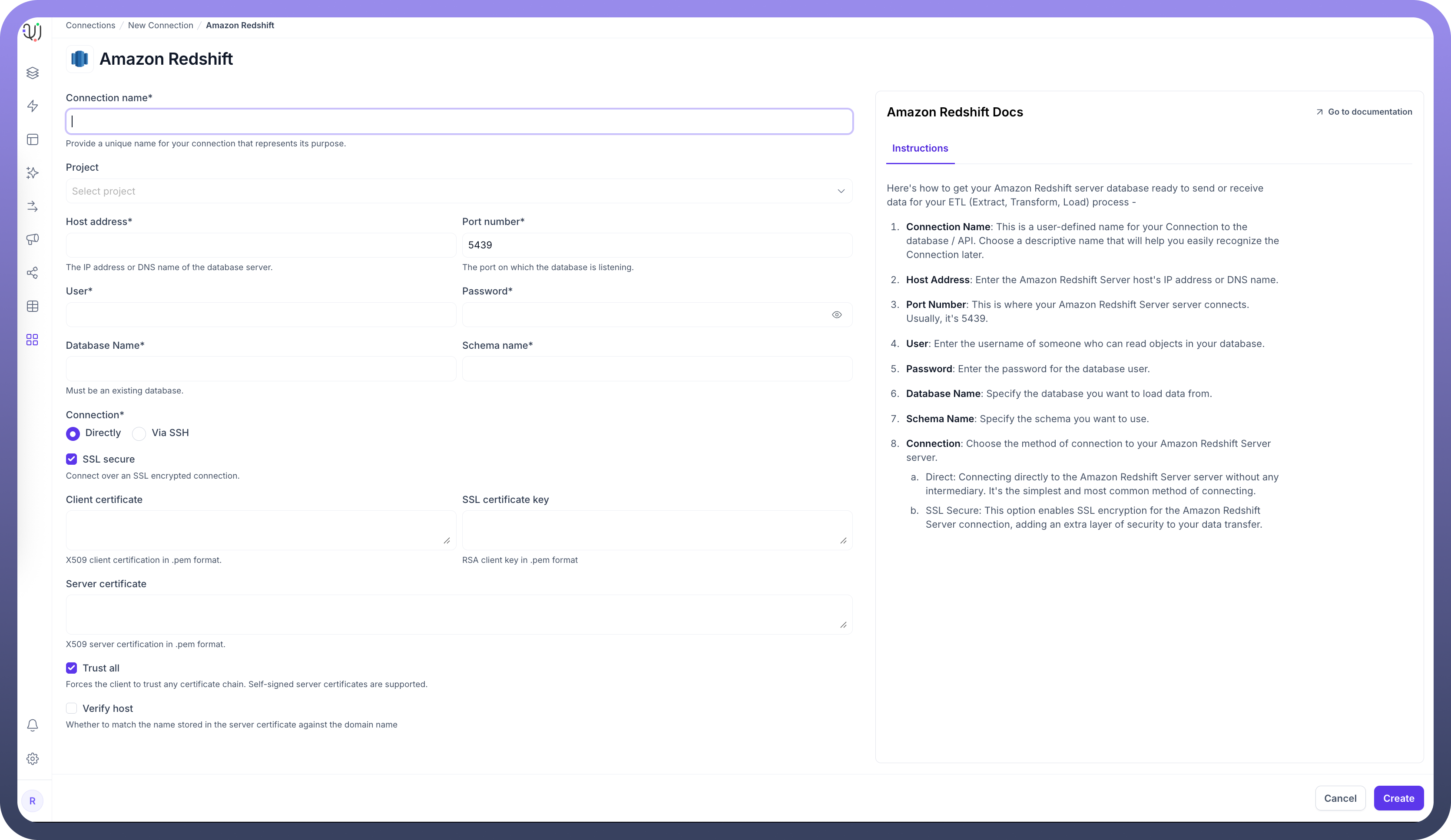

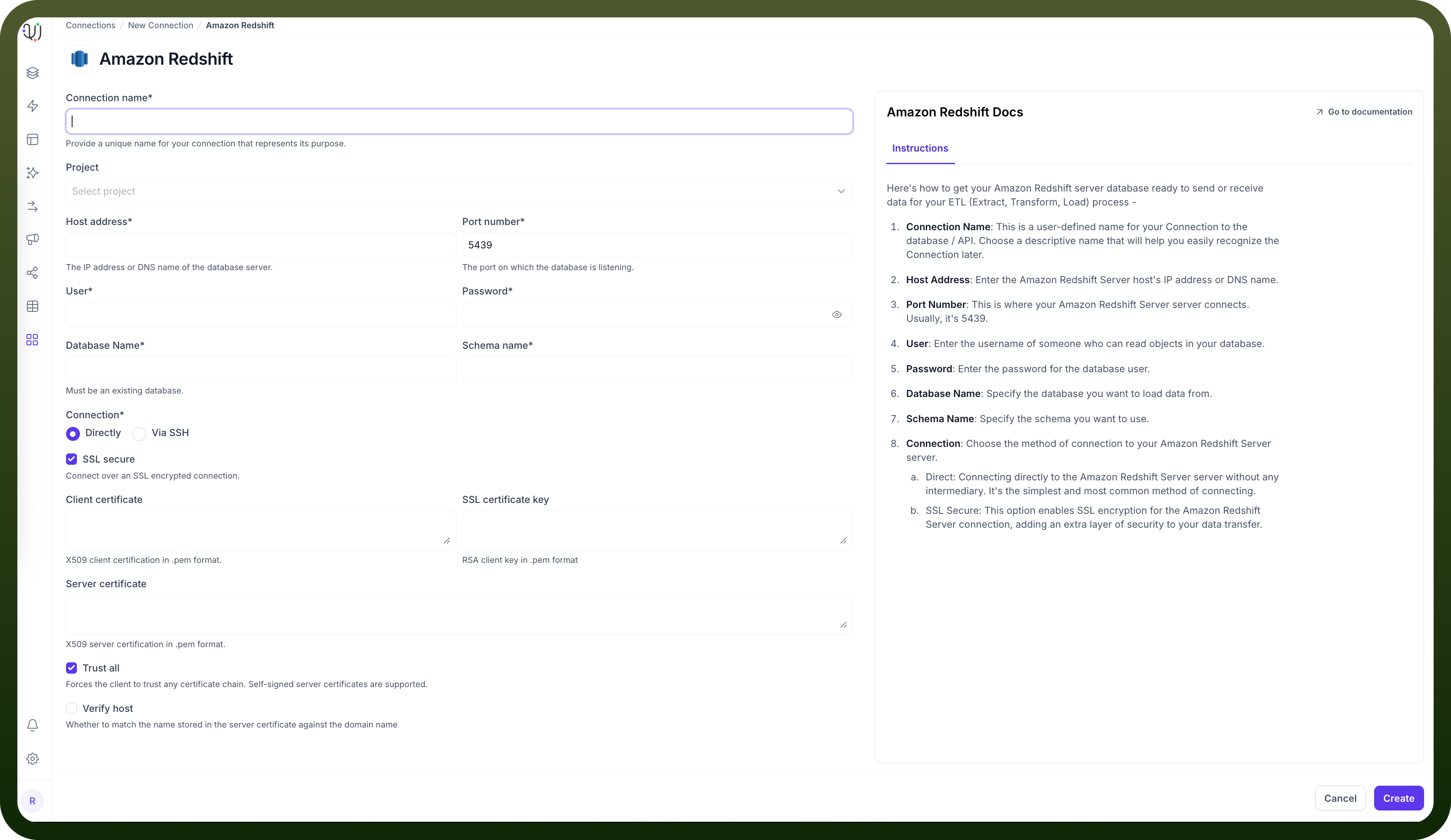

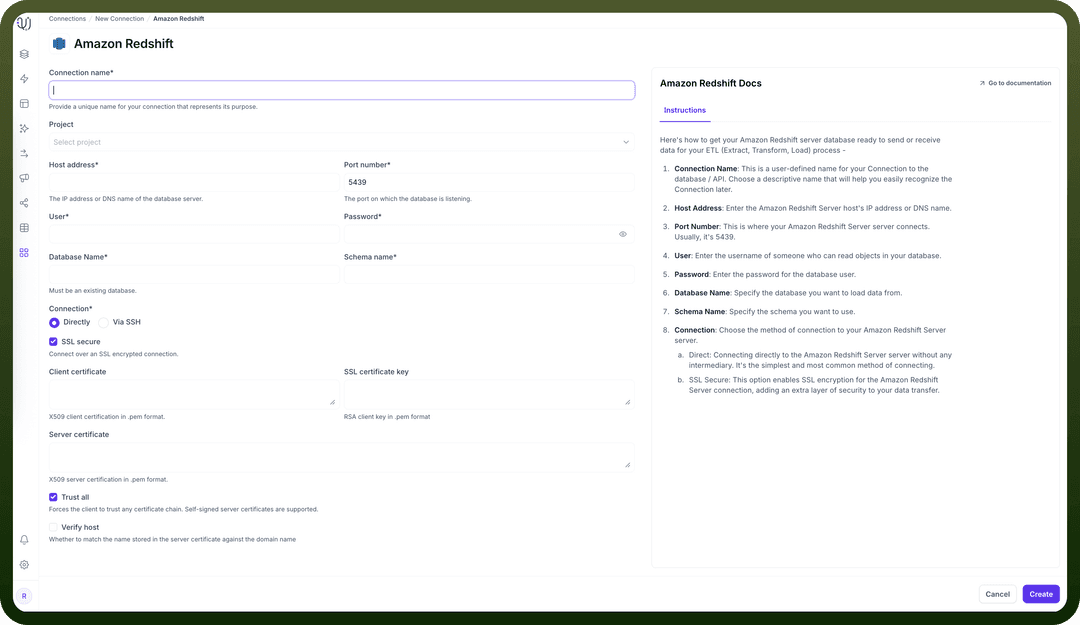

To set up a Redshift source, navigate to the Connections section, click New Connection, and select Amazon Redshift. Fill in the parameters above based on your Redshift environment details.
Server Timezone Configuration
When adding objects from a Redshift source, you'll need to specify the database server's timezone. This setting is crucial for proper handling of date and time values.

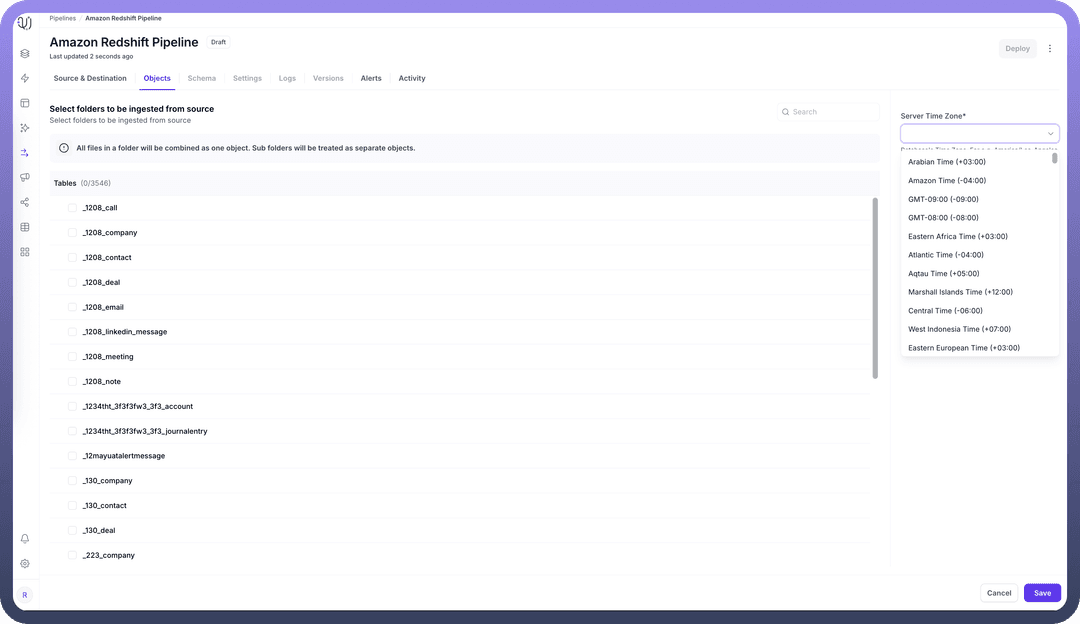

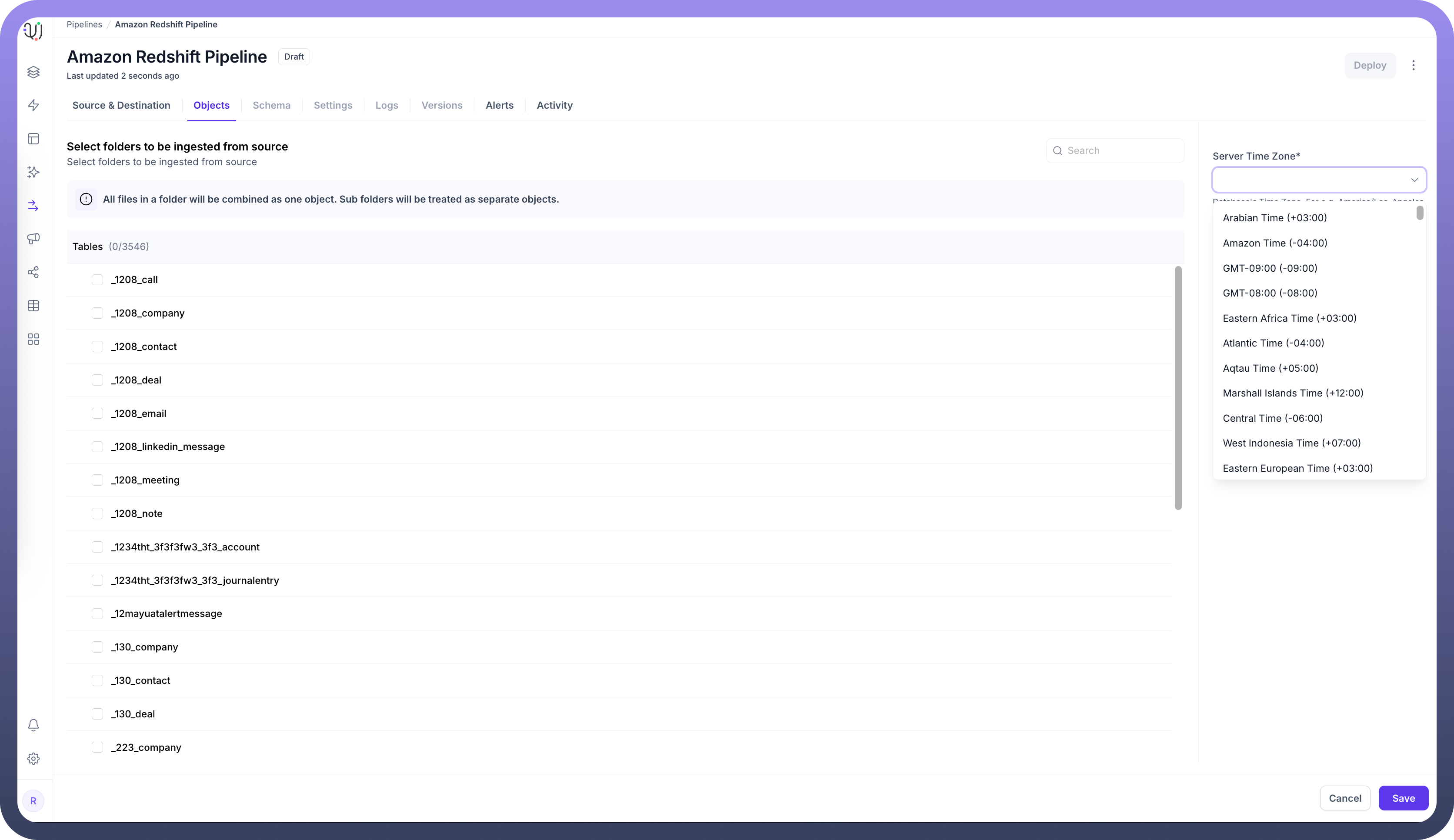

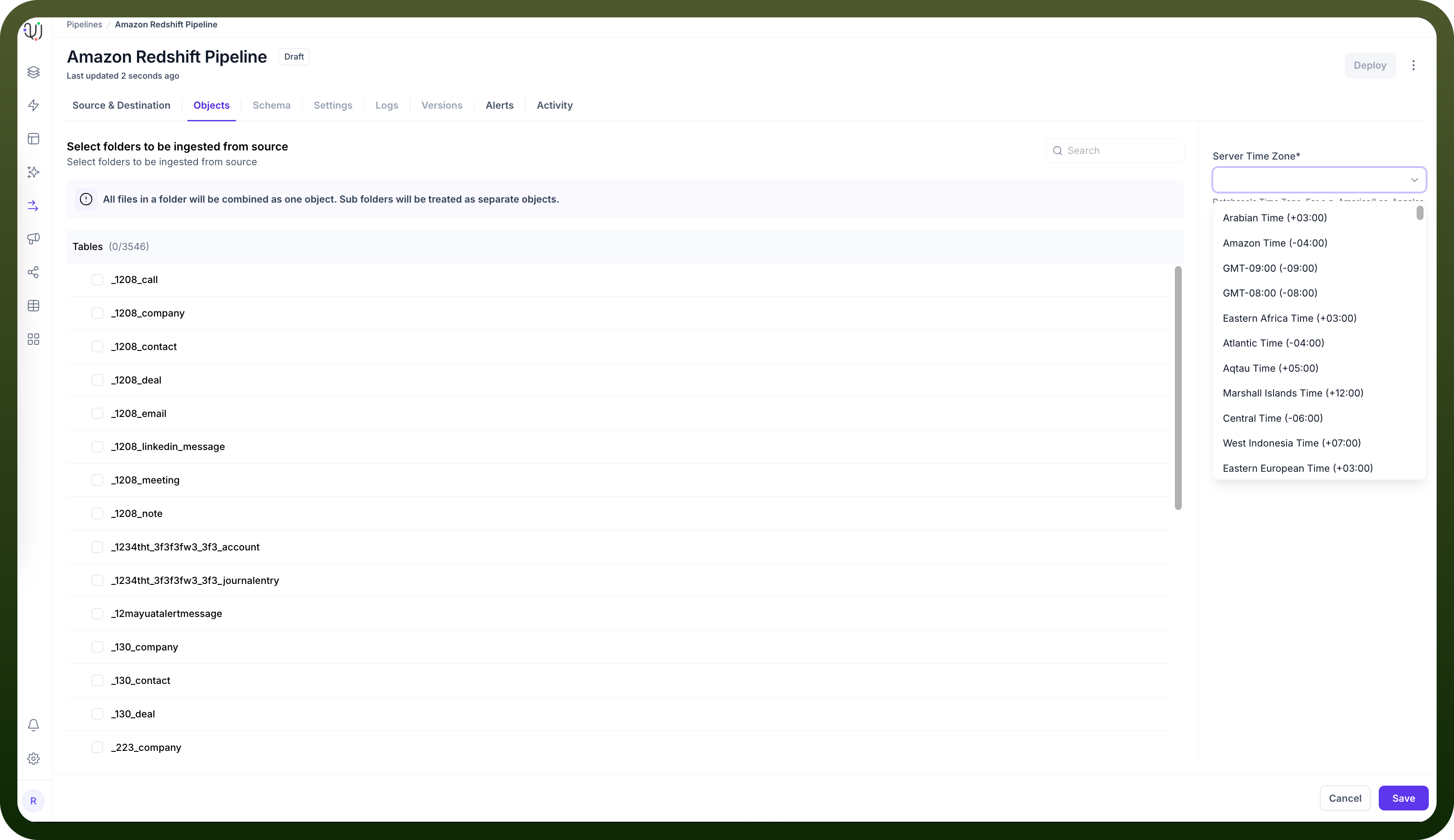

In the Add Objects dialog, find the Server Time Zone setting
Select your Redshift server's timezone
This ensures all timestamp data is normalized to UTC during processing, maintaining consistency across your data pipeline.
Data Extraction Methods
UnifyApps uses specialized techniques for Redshift data extraction:
Historical Data (Initial Load)
For historical data, UnifyApps uses a snapshot-based approach:
Data is extracted in chunks from Redshift tables
These chunks are temporarily staged in Amazon S3
The data is processed and loaded into the destination
S3 staging objects are automatically cleaned up after successful processing
This method optimizes for Redshift's architecture and minimizes impact on your cluster performance.
Live Data (Incremental Updates)
For ongoing changes, UnifyApps implements cursor-based polling
You must select a cursor field (typically a timestamp or sequential ID)
The pipeline tracks the highest value processed in each run
Subsequent runs query only for records with cursor values higher than the last checkpoint
Recommended cursor fields are datetime columns that track record modifications
Note
Important: A validation error will be thrown if no cursor is configured when using "Historical and Live" or "Live Only" ingestion modes.
Supported Data Types for Cursor Fields
Category | Supported Cursor Types |
| INTEGER, DECIMAL, SMALLINT, BIGINT |
| VARCHAR, CHAR (lexicographically ordered) |
| DATE, TIMESTAMP, TIMESTAMPTZ, TIME, TIMETZ |
Ingestion Modes
Mode | Description | Business Use Case | Requirements |
| Loads all existing data and captures ongoing changes | Data warehouse migration with continuous synchronization | Valid cursor field required |
| Captures only new data from deployment forward | Real-time dashboard without historical context | Valid cursor field required |
| One-time load of all existing data | Point-in-time analytics or compliance snapshot | No cursor field needed |
Choose the mode that aligns with your business requirements during pipeline configuration.
CRUD Operations Tracking
When tracking changes from Redshift sources:
Operation | Support | Notes |
| ✓ Supported | New record insertions are detected |
| ✓ Supported | Data retrieval via full or incremental queries |
| ✓ Supported | Updates are detected as new inserts with the updated values |
| ✗ Not Supported | Delete operations cannot be detected |
Note
Due to Redshift's architecture, update operations appear as new inserts in the destination, and delete operations are not tracked. Consider this when designing your data synchronization strategy.
Supported Data Types
Category | Supported Types |
| SMALLINT, INTEGER, BIGINT |
| DECIMAL, REAL, DOUBLE PRECISION |
| DATE, TIME, TIMESTAMP, TIMESTAMPTZ, TIMETZ |
| CHAR, VARCHAR |
| BOOLEAN |
| SUPER, VARBYTE |
All standard Redshift data types are supported, enabling comprehensive data extraction from various analytics workloads.
Prerequisites and Permissions
To establish a successful Redshift source connection, ensure:
Access to an active Amazon Redshift cluster
Network connectivity between UnifyApps and your Redshift cluster
IAM permissions for S3 staging if in the same AWS account
Database user with the following minimum permissions:
GRANT SELECT ON ALL TABLES IN SCHEMA public TO unify_reader;
Common Business Scenarios
Analytics Data Consolidation
Extract processed analytics data from Redshift
Combine with operational data for comprehensive reporting
Configure appropriate cursor fields on timestamp columns
Data Warehouse Migration
Extract schema and data from legacy Redshift clusters
Transform and optimize for new target platforms
Maintain continuous synchronization during migration
Business Intelligence Enhancement
Extract aggregated datasets from Redshift
Combine with real-time operational data
Create unified dashboards across data sources
Best Practices
Category | Recommendations |
| Use distribution key columns as chunking fields where possible Schedule extractions during off-peak hours Use column pruning to extract only necessary fields |
| Prefer timestamp columns with last modified information Ensure chosen cursor fields are indexed Use monotonically increasing fields for consistent ordering |
| Use the same AWS region for Redshift and S3 staging Configure appropriate S3 bucket lifecycle policies Use VPC endpoints for enhanced security |
| Limit large table extractions with appropriate WHERE clauses Avoid cursors on columns with many duplicate values Use sort key columns when possible for range queries |
By properly configuring your Redshift source connections and following these guidelines, you can ensure reliable, efficient data extraction while meeting your business requirements for data timeliness, completeness, and compliance.
