Upload Content to S3

Upload Content to S3

Logo

4 mins READ

The Upload Content to S3 transformation moves your data directly to Amazon S3 cloud storage from within your data pipeline. This powerful capability bridges the gap between data processing and storage, enabling seamless integration with the AWS ecosystem and beyond.


Why Use Upload Content to S3?

  • Centralize Your Data - Store processed information in a reliable, highly available cloud repository

  • Enable Downstream Processes - Trigger AWS Lambda functions, data analytics, or machine learning workflows

  • Simplify Distribution - Share data with other teams, systems, or business partners

  • Create Data Archives - Maintain historical records for compliance or reference purposes

Thumbnail

Note

Before implementing this transformation, verify you have proper AWS credentials and bucket write permissions configured in your environment.

Setting Up the S3 Upload Transformation

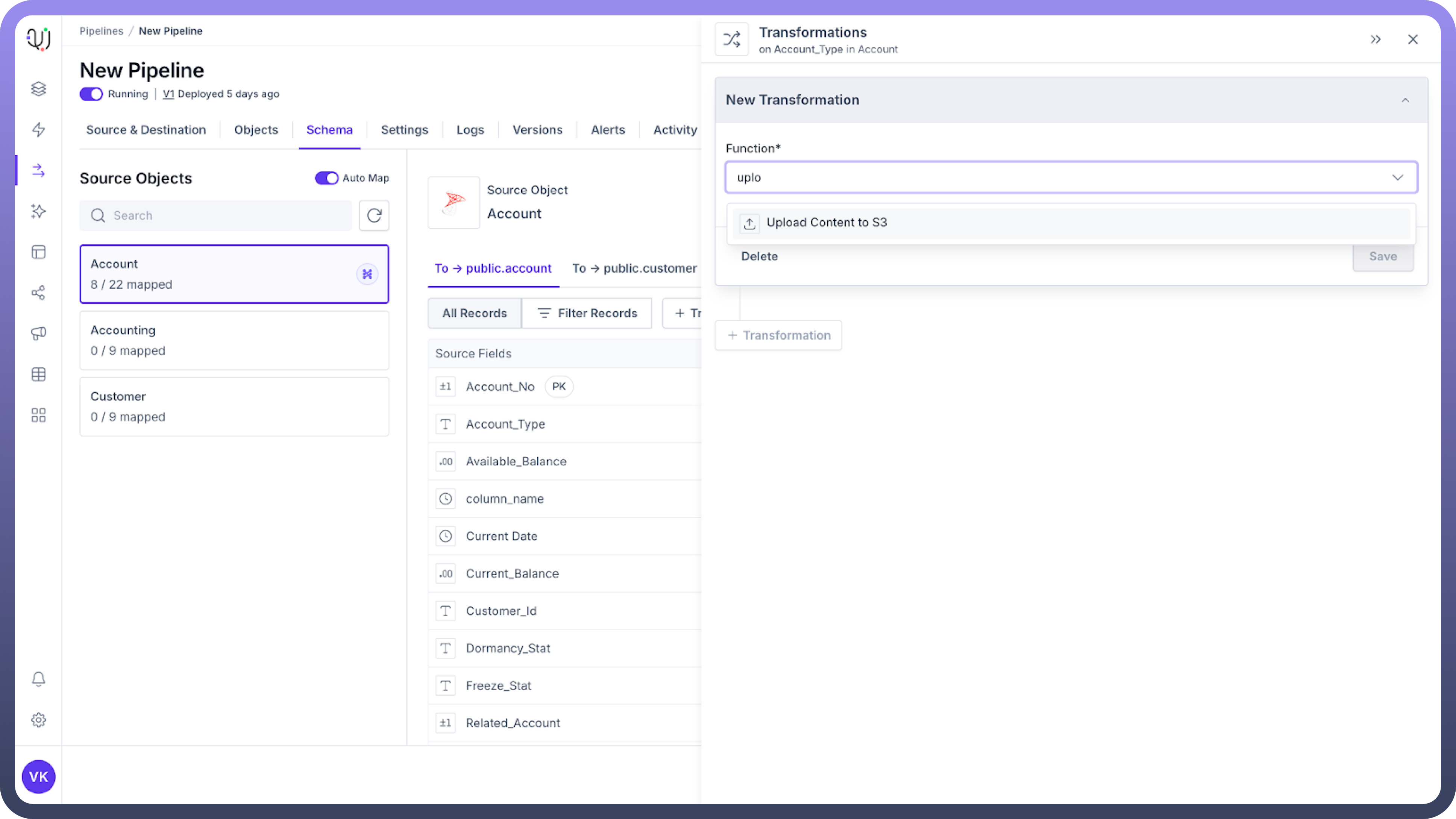

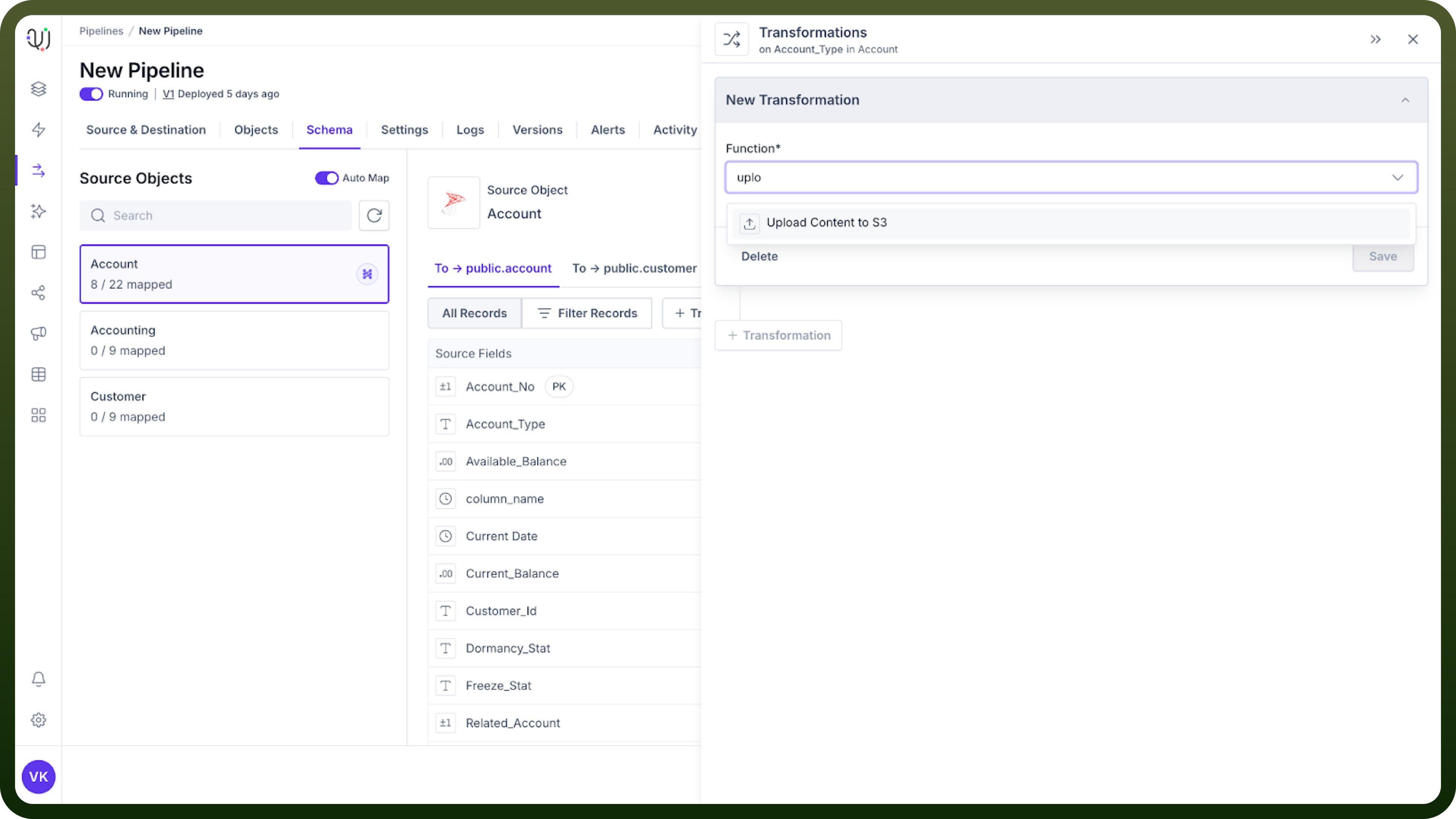

  1. Navigate to your transformation menu and select "Upload Content to S3"

  2. Choose or create an Amazon S3 connection

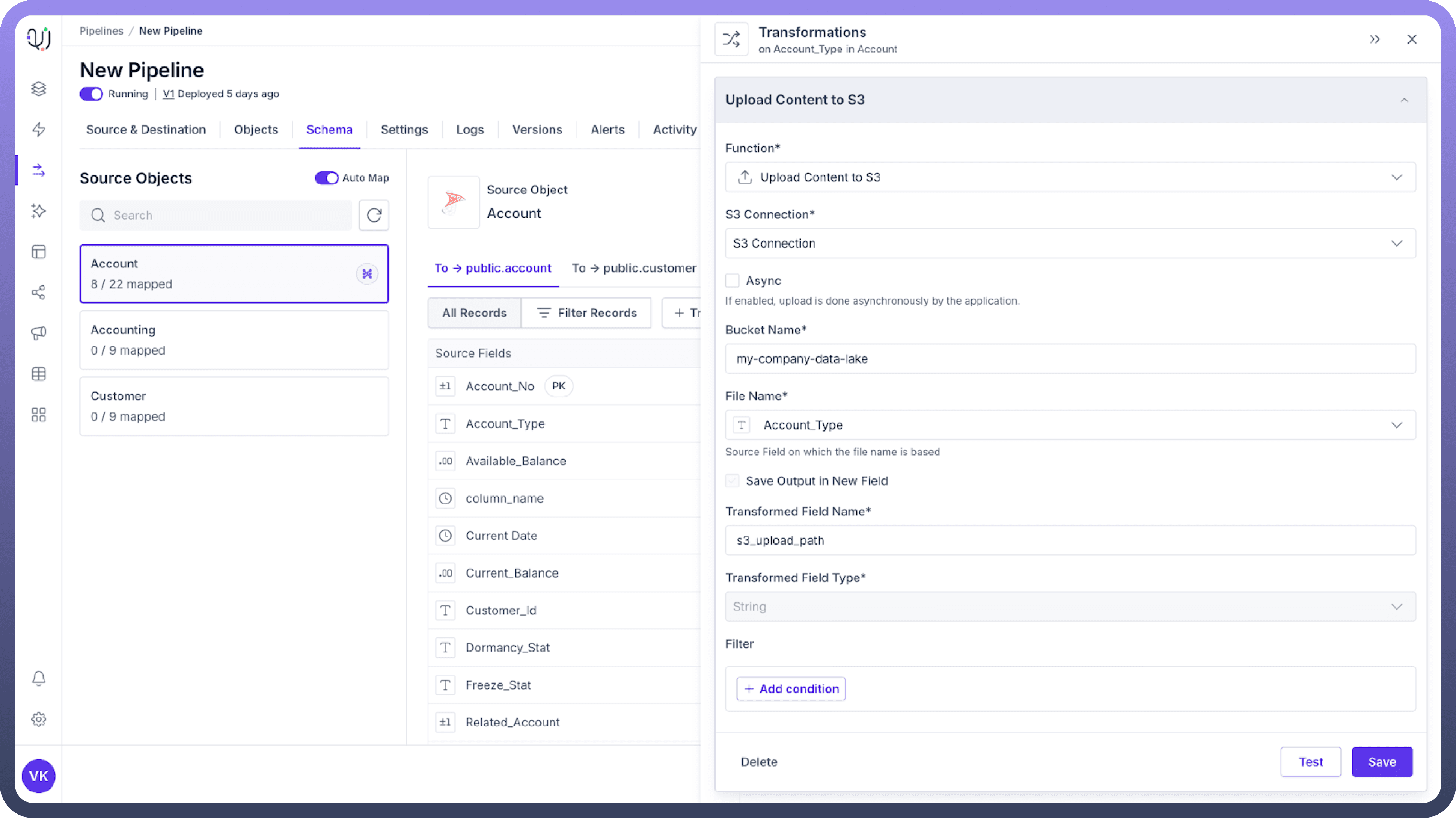

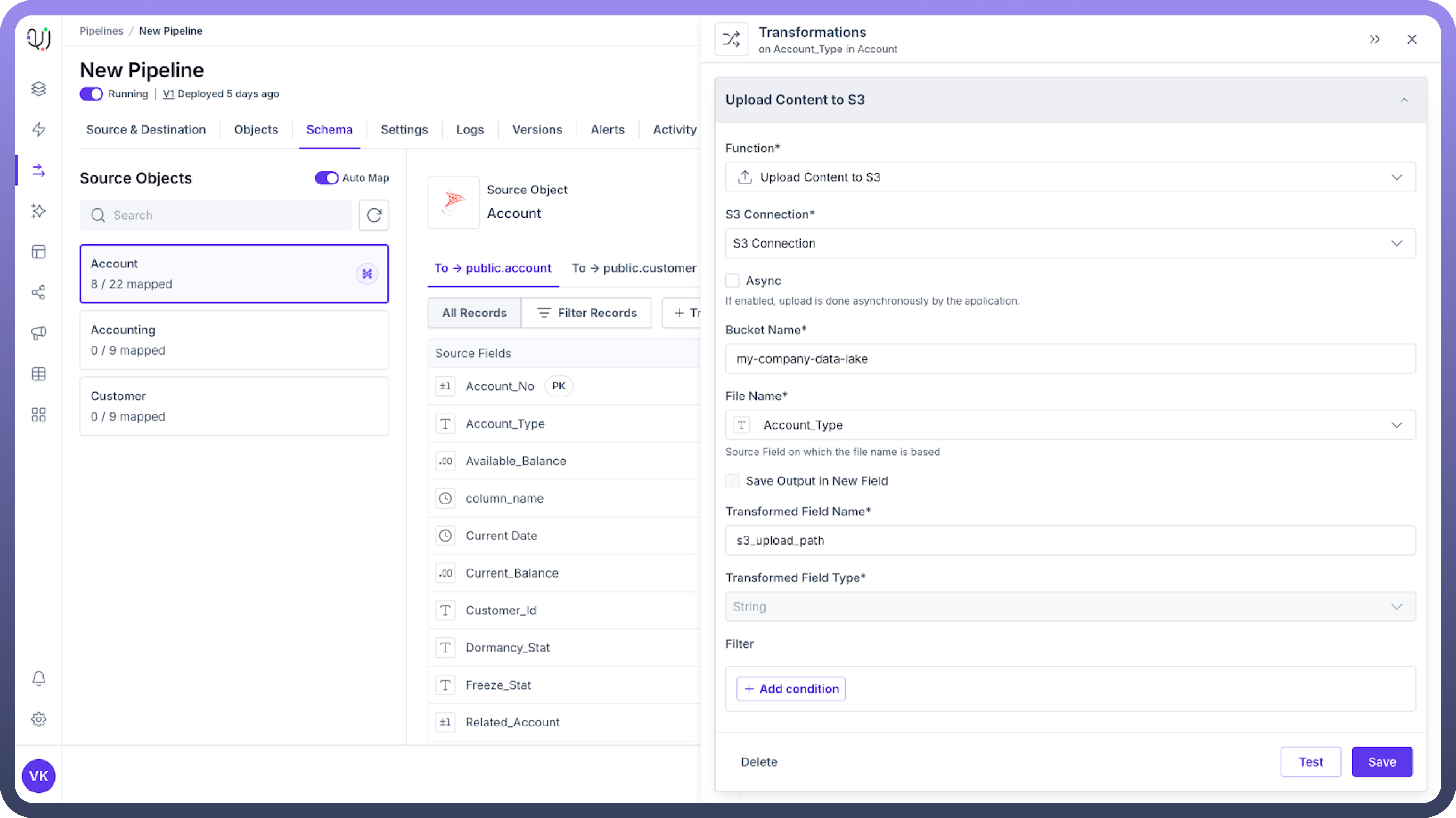

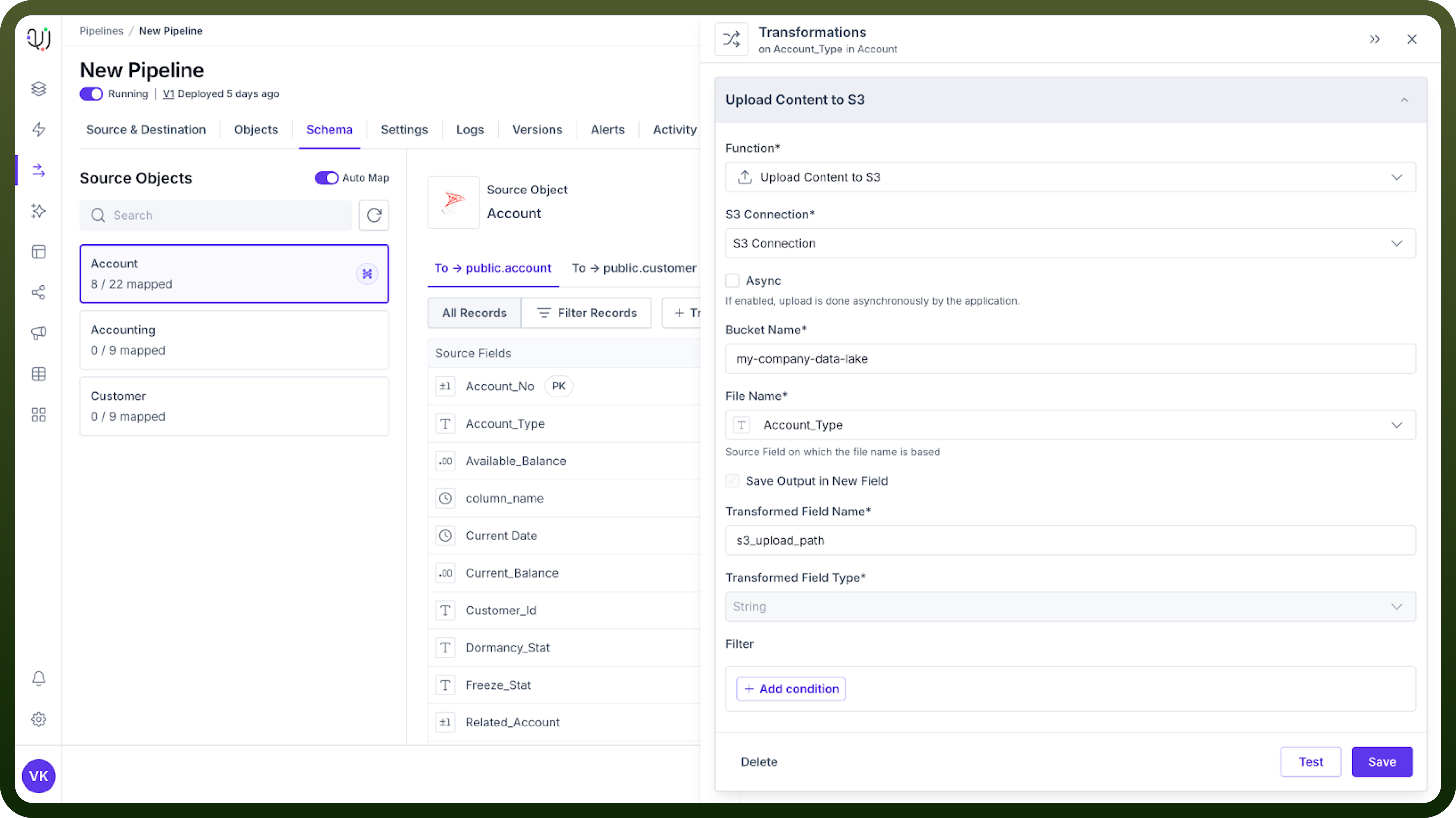

  3. Configure the required parameters (detailed below)

  4. Test the connection with sample data

  5. Save and apply the transformation

Configuration Parameters

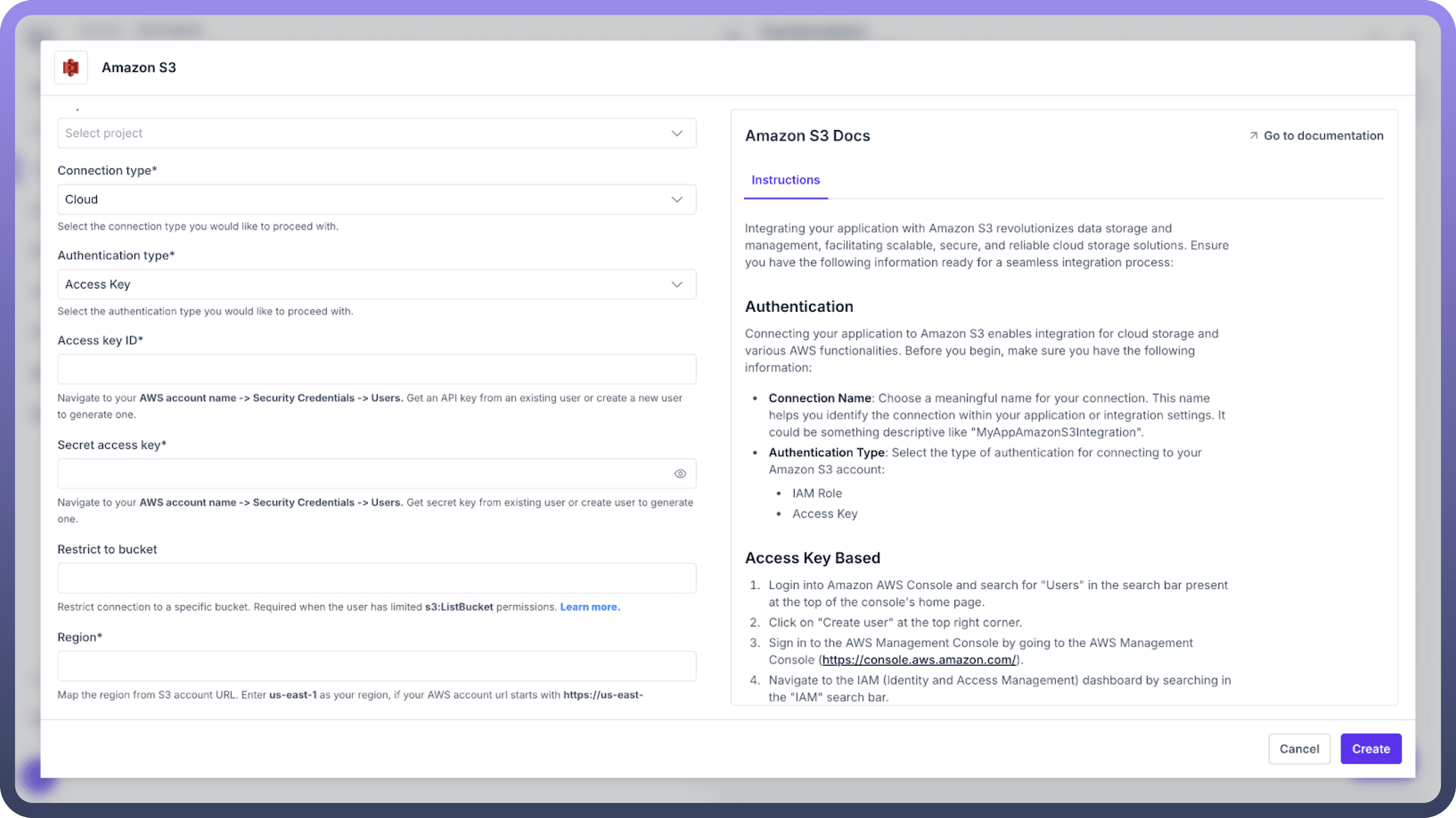

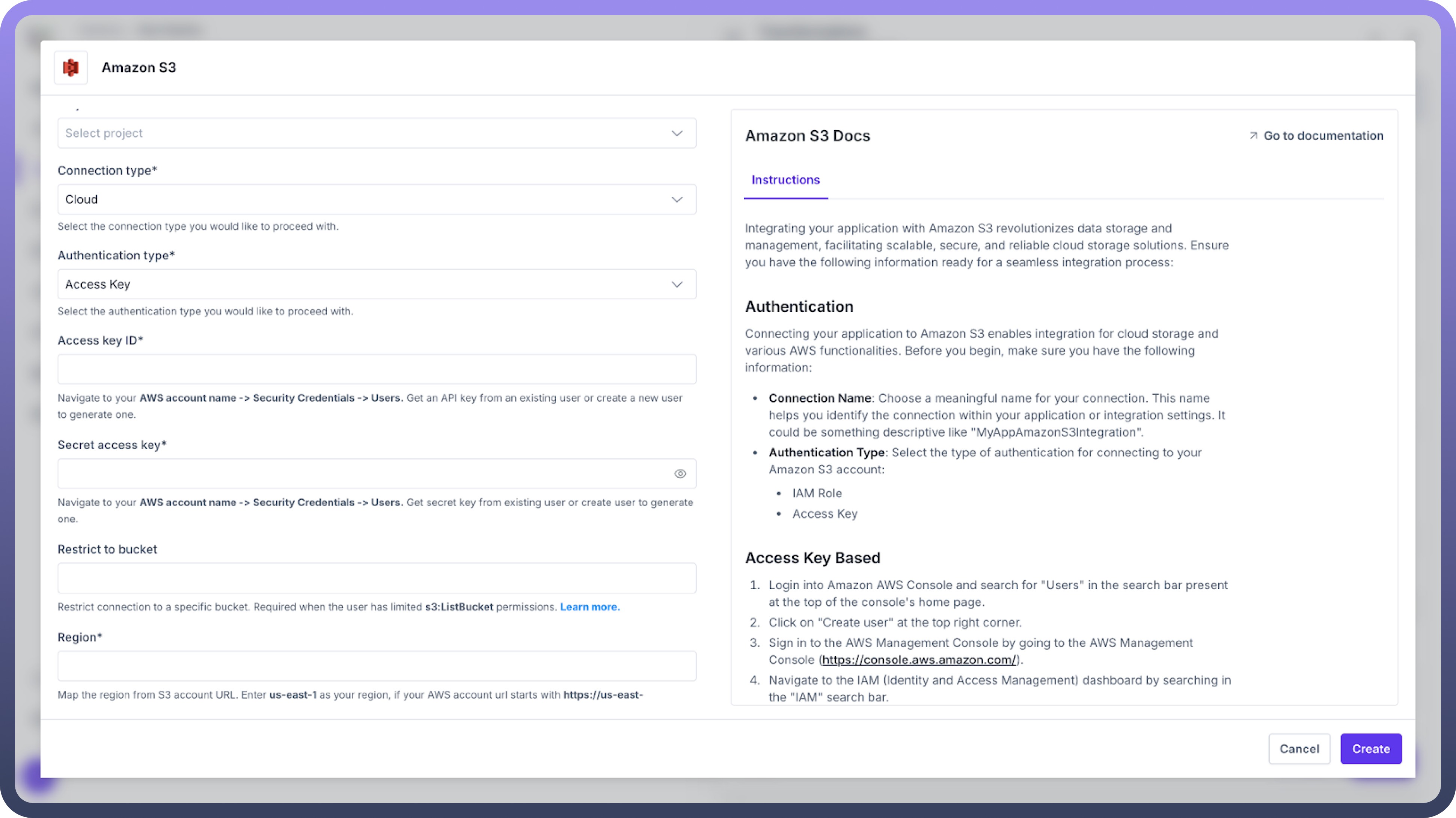

  1. S3 Connection Establishes authentication with AWS using your credentials.




    Options:

    • Select an existing connection from your saved connections

    • Create a new connection with your AWS access key, secret key, and region


    Security Best Practice: Use IAM roles with temporary credentials rather than long-term access keys when possible.

    Thumbnail

    Refer

    Check the documentation for Amazon S3 connector here.

  2. Bucket Name Specify the destination S3 bucket for your uploads.

    Examples:

    • company-data-lake

    • customer-analytics-prod

    • financial-reports-archive

  3. File Name Field Specifies which field in your dataset contains the name to use for the uploaded file in S3.

    How It Works:

    • Select an existing field from your dataset that contains the desired filename

    • The value in this field will be used as the actual filename in S3

    • The field can contain just the filename or include a path structure

    Examples:

    • Field value: report.csv → Uploads to s3://bucket-name/report.csv

    • Field value: customer_123/profile.json → Uploads to s3://bucket-name/customer_123/profile.json

    • Field value: reports/2024/04/daily.parquet → Uploads to s3://bucket-name/reports/2024/04/daily.parquet

  4. Transformed Field Name


    Creates a new field in your data that stores the complete S3 URL of the uploaded file.

    Example Value: s3://company-data-lake/reports/monthly/2024/04/data.parquet

How It Works?

This transformation follows these steps during execution:

  1. Reads the current record's data from the pipeline

  2. Establishes a secure connection to your S3 bucket

  3. Uploads the content with the specified file name

  4. Generates the complete S3 path/URL

  5. Adds this path as a new field in your data record

Common Use Cases

Scenario

File Type

Naming Strategy

Benefit

Daily reports

CSV files

reports/${DATE}/summary.csv

Automatic date organization

Customer data

JSON objects

customers/${CUSTOMER_ID}.json

Easy lookup by ID

Image processing

Binary files

images/processed/${TIMESTAMP}.jpg

Chronological tracking

Log archiving

Text files

logs/${APP_NAME}/${DATE}/${HOUR}.log

Hierarchical organization

Best Practices

  • Structure Your Data - Use folder paths in your file names to create logical organization

  • Consider File Formats - Choose appropriate formats (CSV, JSON, Parquet) based on downstream needs

  • Set Up Lifecycle Rules - Configure S3 lifecycle policies to automatically archive or delete old files

  • Monitor Costs - Watch your S3 storage usage and implement appropriate storage classes

  • Implement Error Handling - Create fallback procedures for failed uploads

Troubleshooting

Issue: Upload failures

  • Check your AWS credentials and permissions

  • Verify network connectivity to AWS

  • Ensure the bucket name is correct and accessible

Issue: Files overwritten unexpectedly

  • Implement unique naming with timestamps or UUIDs

  • Enable S3 versioning on your bucket

  • Use conditional checks before uploads

Issue: Slow performance

  • Consider compressing large files before upload

  • Evaluate your network bandwidth limitations

  • For very large files, explore multipart uploads
