Overview

Spreadsheet Formula transformations bring familiar Excel-like formulas to your data pipeline, enabling complex calculations and manipulations using syntax that spreadsheet users already know. This powerful feature bridges the gap between spreadsheet expertise and data pipeline development.


Why Use Spreadsheet Formulas in Your Pipeline?

  • Leverage Existing Skills: Use familiar Excel-like syntax without learning complex programming

  • Accelerate Development: Implement complex logic quickly with pre-built functions

  • Enhance Data Quality: Create validation rules and cleansing operations with simple formulas

  • Improve Consistency: Standardize calculations across your entire data ecosystem

How to Apply a Spreadsheet Formula Transformation?

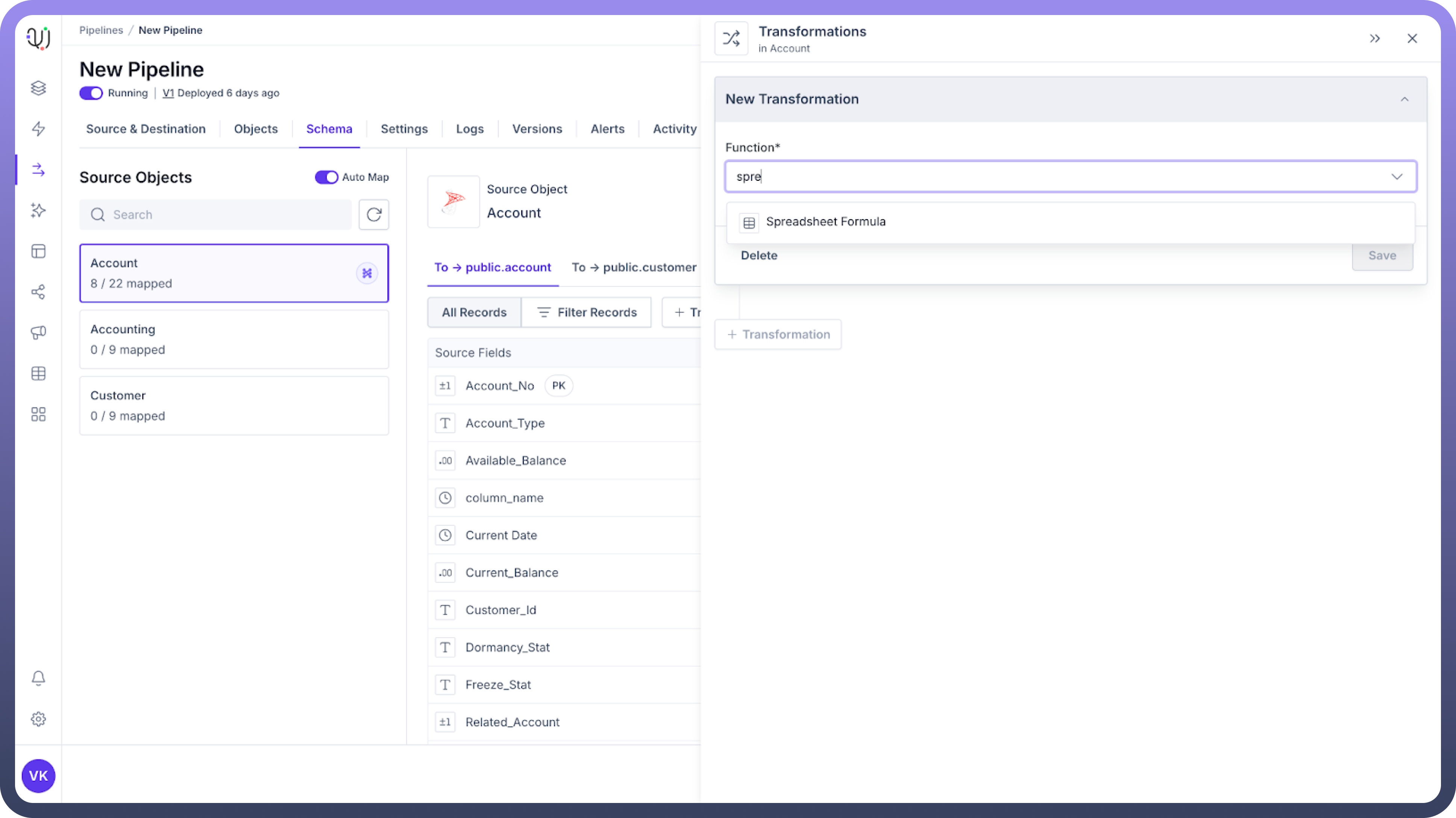

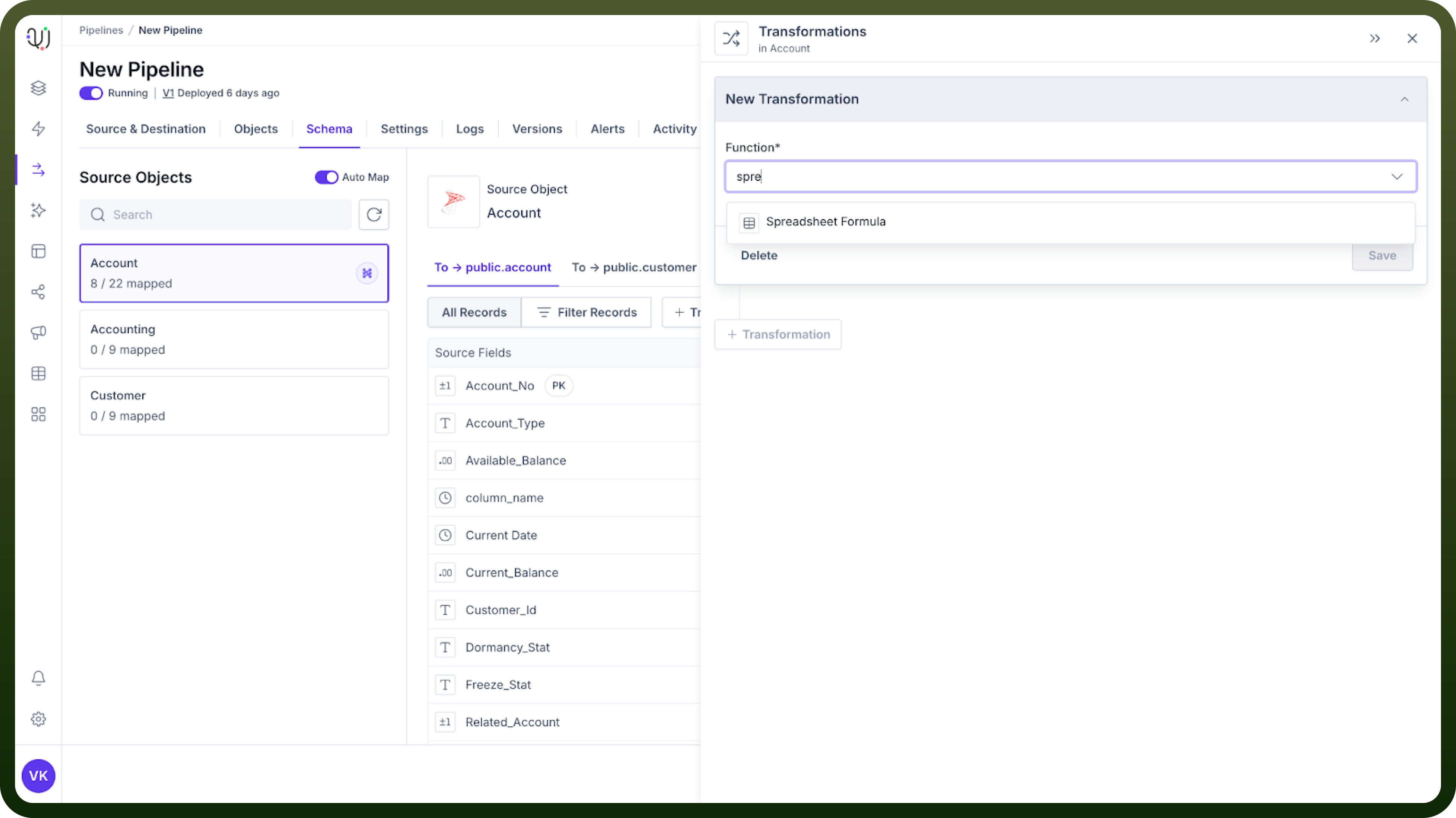

  1. Click on the "+ Transformed Field" button.

  2. Select "Spreadsheet Formula" from the Transformations list.

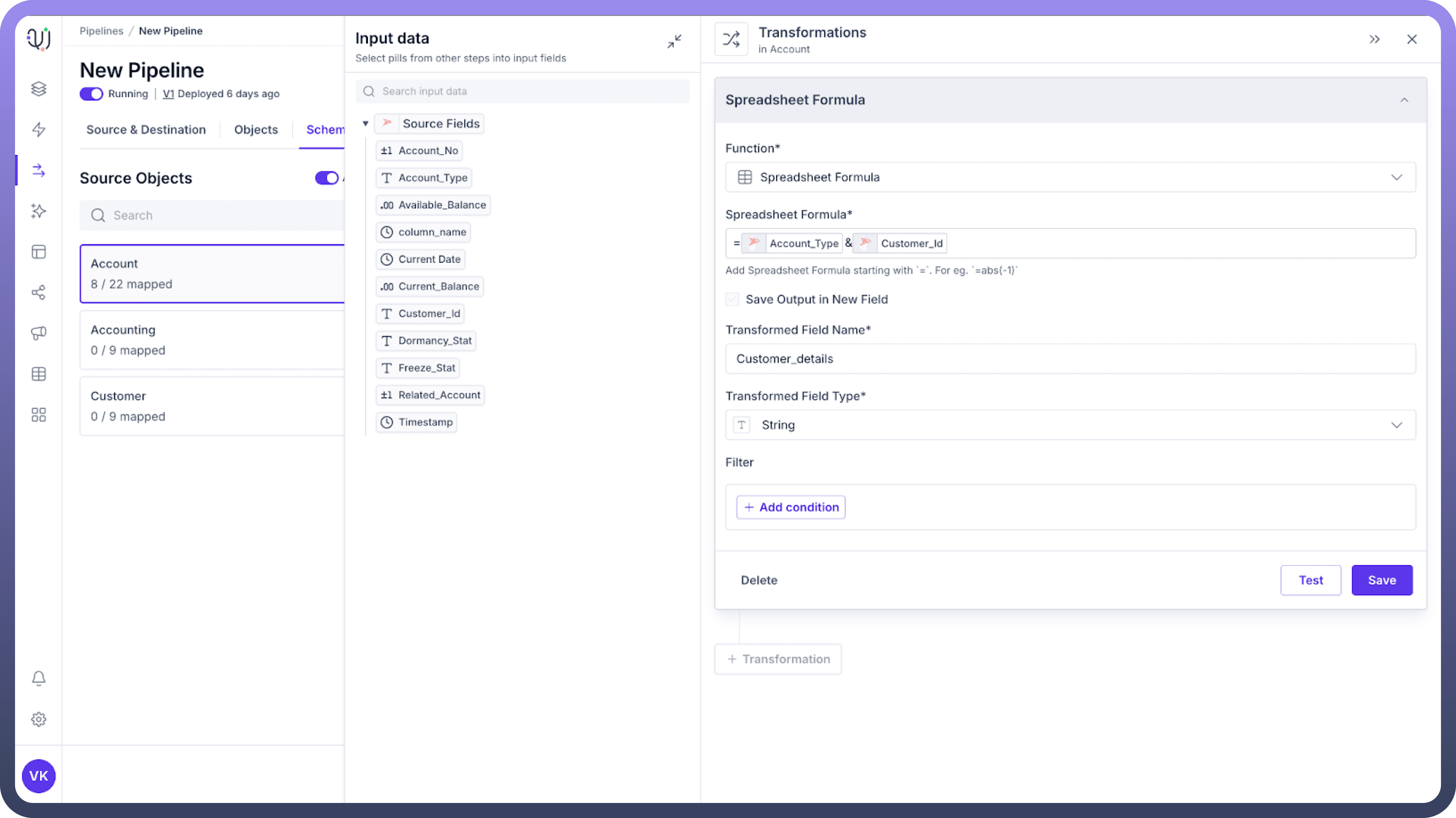

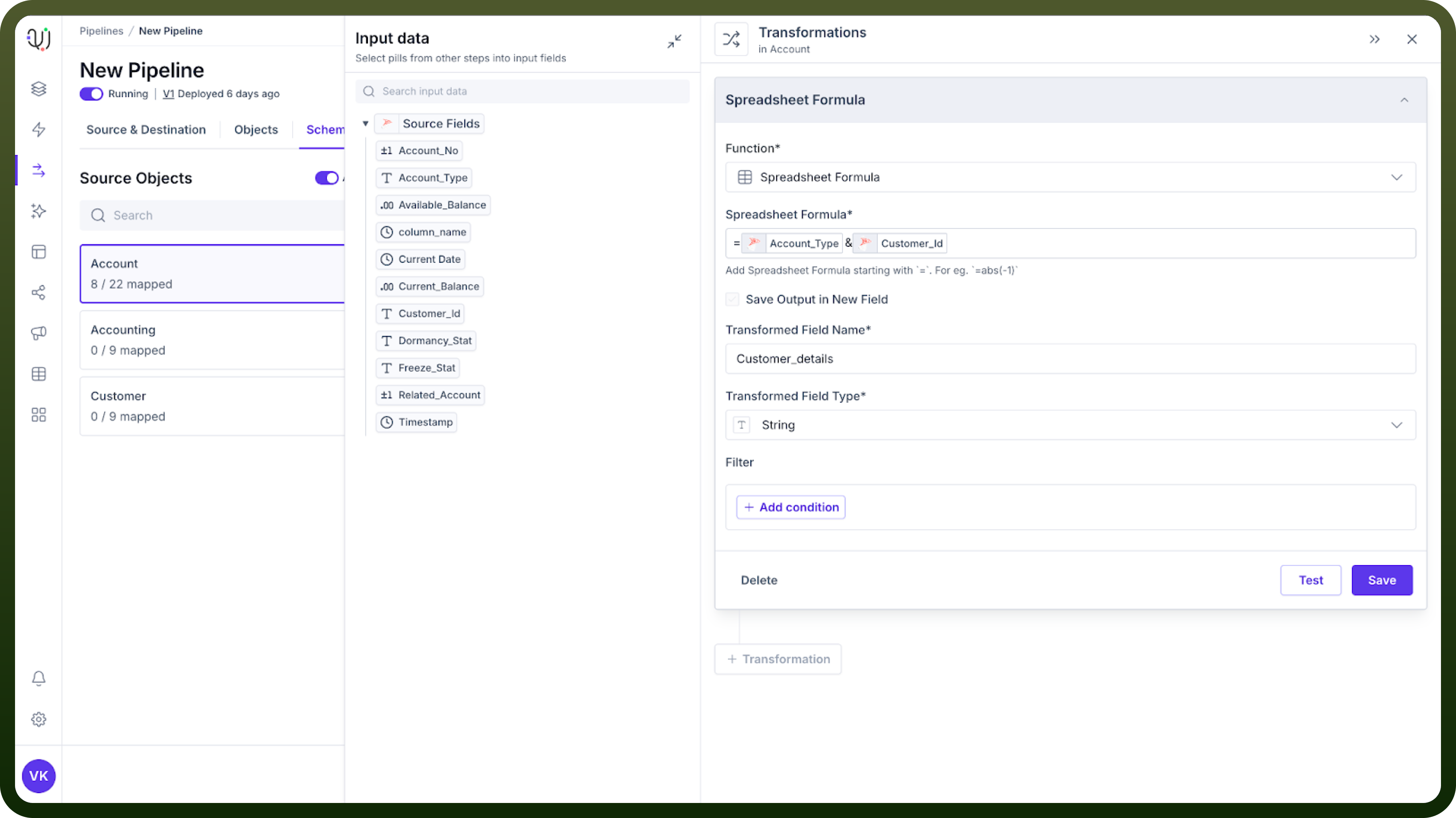

  3. Enter your formula using source fields as datapills.

  4. Specify the name and datatype for the transient field that will contain the results.

  5. Test your formula with sample data before applying to the entire dataset.


Function Categories and Common Pipeline Use Cases

Text Processing Functions

Function

Description

Pipeline Use Case

CONCATENATE

Joins text values

Combine first and last names or build complete addresses

LEFT, RIGHT, MID

Extract substrings

Parse product codes or extract specific portions of identifiers

TRIM

Remove extra spaces

Clean messy data from external sources

UPPER, LOWER, PROPER

Change text case

Standardize inconsistent text formatting

SUBSTITUTE, REPLACE

Replace text

Fix common typos or standardize terminology

LEN

Return string length

Validate field length requirements

Pipeline Example: CONCATENATE(PROPER(First Name), " ", PROPER(Last Name)) - Create properly formatted full names from inconsistent source data.

Date and Time Functions

Function

Description

Pipeline Use Case

DATE, TIME

Create date/time values

Convert separate date components into standard format

DAY, MONTH, YEAR

Extract date parts

Enable date-based aggregation and analysis

WEEKDAY

Get day of week

Support day-of-week based business rules

TODAY

Current date

Calculate time-based metrics (age, expiration, etc.)

DATEDIF

Difference between dates

Calculate duration metrics (days outstanding, age)

Pipeline Example: IF(DATEDIF(Invoice Date, Payment Date, "D") > 30, "Overdue", "Current") - Create payment status indicators based on date differences.

Numeric and Statistical Functions

Function

Description

Pipeline Use Case

ROUND, ROUNDUP, ROUNDDOWN

Control rounding

Standardize decimal precision

SUM, AVERAGE, MIN, MAX

Basic calculations

Aggregates for derived metrics

ABS

Absolute value

Calculate magnitudes (e.g., price differences)

CEILING, FLOOR

Round to multiples

Create price bands or size categories

PRODUCT

Multiply values

Calculate area, volume, or compound metrics

Pipeline Example: ROUND(Quantity * Unit Price * (1 - Discount Rate), 2) - Calculate standardized line-item totals.

Lookup and Reference Functions

Function

Description

Pipeline Use Case

VLOOKUP, HLOOKUP

Look up values in tables

Map codes to descriptions or implement business rules

INDEX, MATCH

Advanced lookups

Create complex category mappings

CHOOSE

Select from alternatives

Implement conditional value mapping

Pipeline Example: VLOOKUP(Country Code, Country_Mapping_Table, 2, FALSE) - Map country codes to full country names.

Logical Functions

Function

Description

Pipeline Use Case

IF

Conditional logic

Implement business rules and data-driven decisions

AND, OR, NOT

Boolean operations

Create complex conditional transformations

ISBLANK, ISERROR, ISTEXT

Data validation

Implement data quality checks

Pipeline Example: IF(AND(Credit Score > 700, Income > 50000), "Approved", "Review") - Create approval status based on multiple criteria.

Advanced Pipeline Applications

Data Cleansing and Standardization

// Phone number formatting
IF(LEN(Phone) = 10,
   CONCATENATE("(", LEFT(Phone, 3), ") ", MID(Phone, 4, 3), "-", RIGHT(Phone, 4)),
   Phone)

Derived Business Metrics

// Calculate customer lifetime value
ROUND(
  Average Order Value *
  Purchase Frequency *
  Customer Lifespan,
  2)

Data Validation and Quality Checks

// Validate email format
IF(AND(
   SEARCH("@", Email) > 1,
   SEARCH(".", Email, SEARCH("@", Email)) > SEARCH("@", Email)
), "Valid", "Invalid")

Enhanced Categorization

// Create price bands
CHOOSE(
  IF(Price < 10, 1,
    IF(Price < 50, 2,
      IF(Price < 100, 3, 4))),
  "Budget", "Economy", "Standard", "Premium")

Testing and Troubleshooting

To ensure your formulas are working as expected:

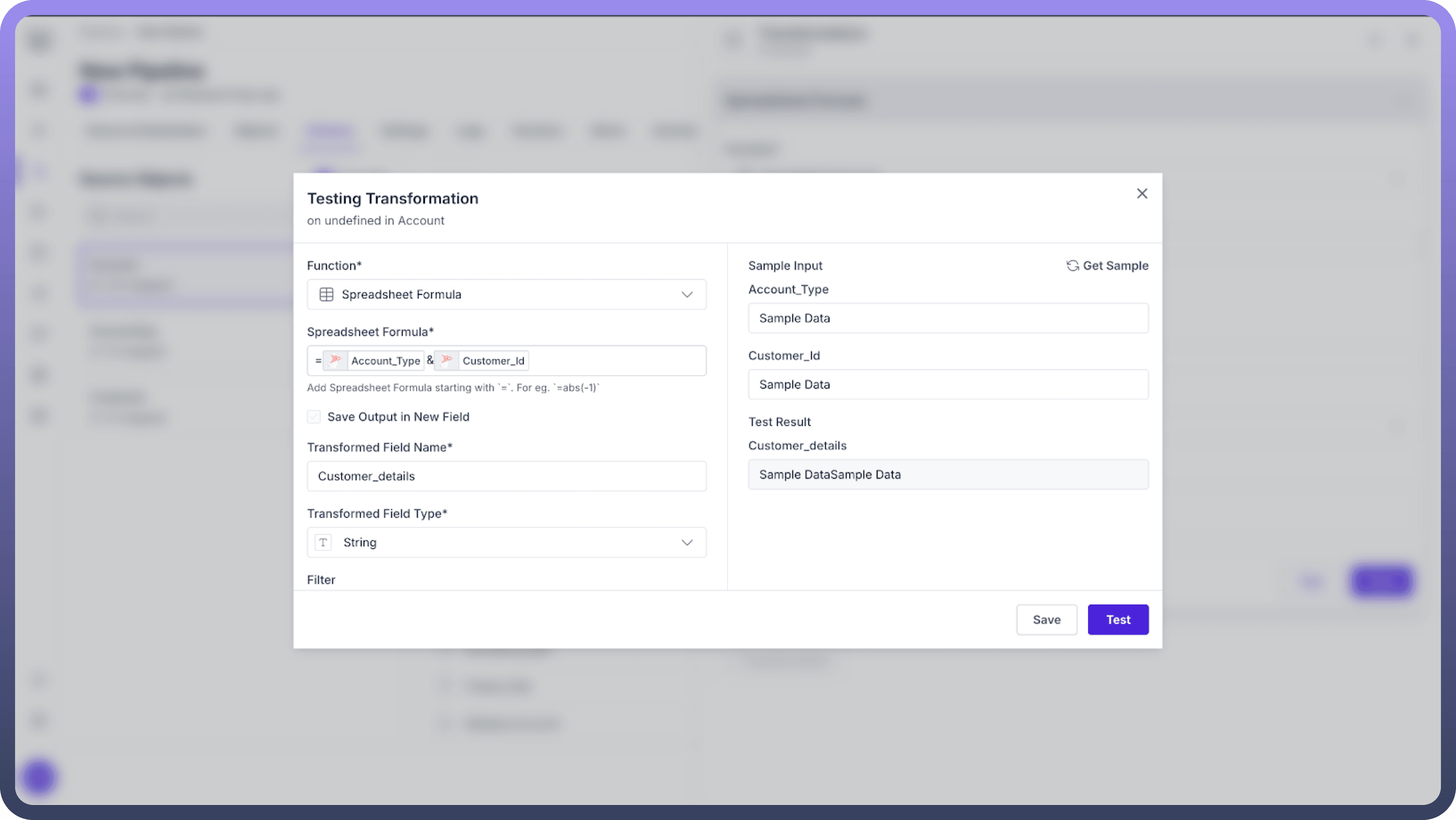

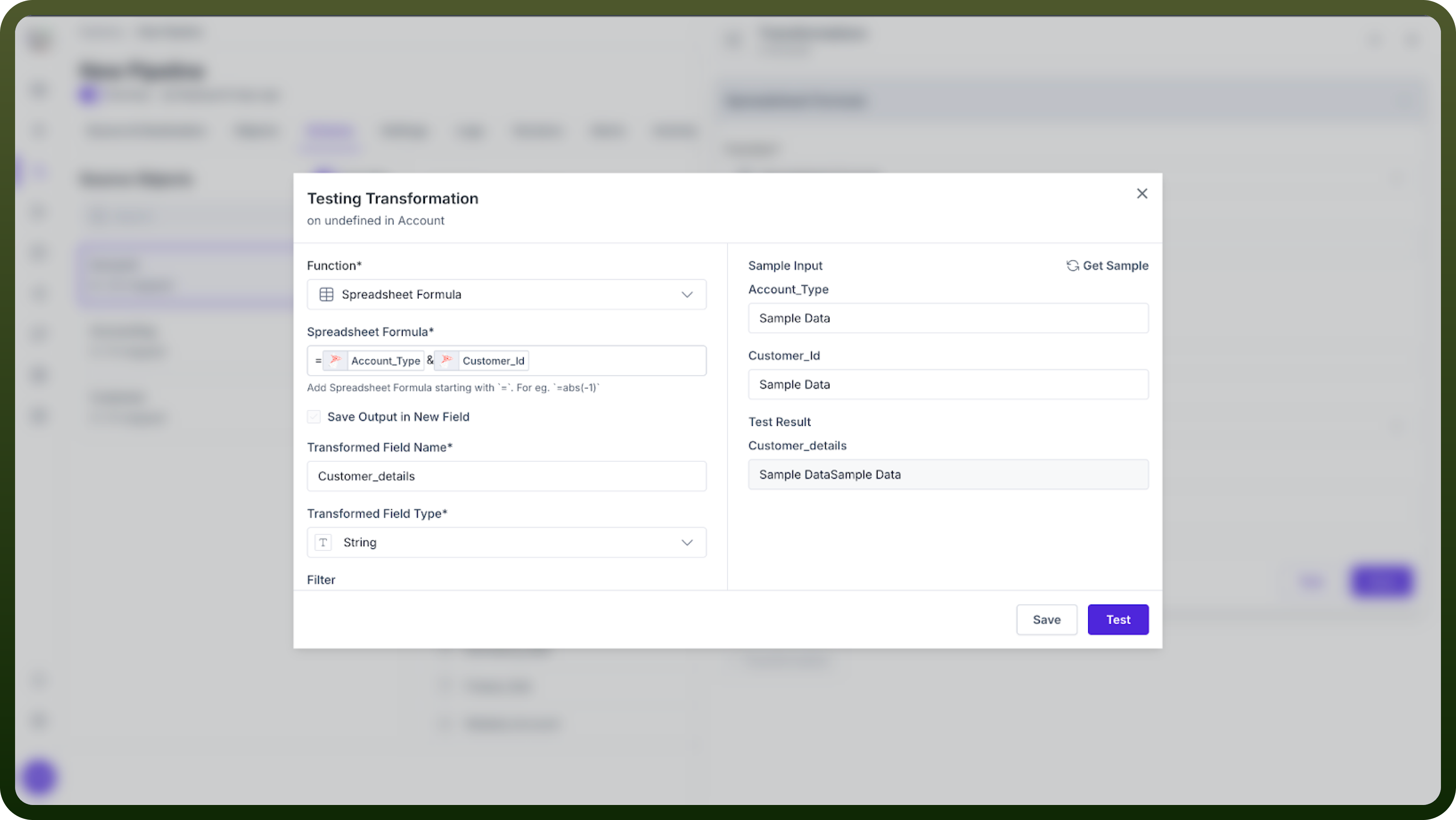

  1. Click the Test button before saving your transformation

  2. Enter sample values for all fields used in your formula

  3. Verify the test results match your expected output

  4. For complex formulas, test incrementally by building up from simpler components


Best Practices

  • Document Your Logic: Add comments to explain complex business rules

  • Break Down Complexity: Use multiple transformations for very complex calculations

  • Consistent Naming: Create a naming convention for transformed fields

  • Performance Awareness: Be mindful of formula complexity with large datasets

  • Create a Formula Library: Maintain a repository of validated formulas for reuse

FAQs

Can I reference fields created by other transformations?

Yes, you can use any field available in your pipeline, including those created by previous transformations.

How do I handle errors in my formulas?

Use the IFERROR function to provide fallback values when errors occur, e.g., IFERROR(calculation, default_value). This is especially important since records with NA/NULL/ERROR values will fail processing.

What happens if my transformation outputs NA, NULL, or ERROR values?

Records that result in NA, NULL, or ERROR values will fail processing and appear in the failed logs. Always implement proper error handling in your formulas to prevent data loss in your pipeline.

How do spreadsheet formulas handle NULL values?

NULL values are treated similarly to Excel's blank cells. Consider using ISBLANK or IFNA functions to handle these cases explicitly.

Are user-defined functions supported?

No, only the built-in functions are available. Complex custom logic should be implemented through combinations of existing functions or other transformation types.
