PostgreSQL as Destination

UnifyApps enables seamless integration with PostgreSQL databases as a destination for your data pipelines. This article covers essential configuration elements and best practices for loading data into PostgreSQL destinations.

Overview

PostgreSQL is a powerful, open-source relational database management system known for its reliability, feature robustness, and performance. UnifyApps provides native connectivity to load data into PostgreSQL environments efficiently and securely, making it an ideal destination for data warehousing, analytics, and operational data storage.

Prerequisites

Before configuring PostgreSQL as your destination, ensure you have:

PostgreSQL Server Instance: Ensure you have access to an active PostgreSQL server instance.
Connection Information: Obtain the necessary connection details including server name/IP address, port number (default is 5432), and database name.
Authentication Credentials: Securely store the PostgreSQL authentication username and password.
PostgreSQL User Privileges: For PostgreSQL as a Destination, the user needs additional privileges to create and modify tables. The recommended privileges include CREATE, INSERT, UPDATE, and DELETE on the target schema. A database administrator can grant these privileges using:
```
GRANT CREATE ON DATABASE <database_name> TO <username>;
GRANT USAGE, CREATE ON SCHEMA <schema_name> TO <username>;
GRANT INSERT, UPDATE, DELETE ON ALL TABLES IN SCHEMA <schema_name> TO <username>;
```
Schema Information: Specify the target schema where you want to load the data (default is often 'public').

Connection Configuration

Parameter	Description	Example
`Connection Name`	Descriptive identifier for your connection	"Data Warehouse PostgreSQL"
`Host Address`	PostgreSQL server hostname or IP address	"postgres-dw.example.com"
`Port Number`	Database listener port	5432 (default)
`User`	Database username with write permissions	"unify_writer"
`Password`	Authentication credentials	"********"
`Database Name`	Name of the target PostgreSQL database	"data_warehouse"
`Schema Name`	Schema for loading destination tables	"staging"
`Connection Type`	Method of connecting to the database	Direct, SSH Tunnel, or SSL

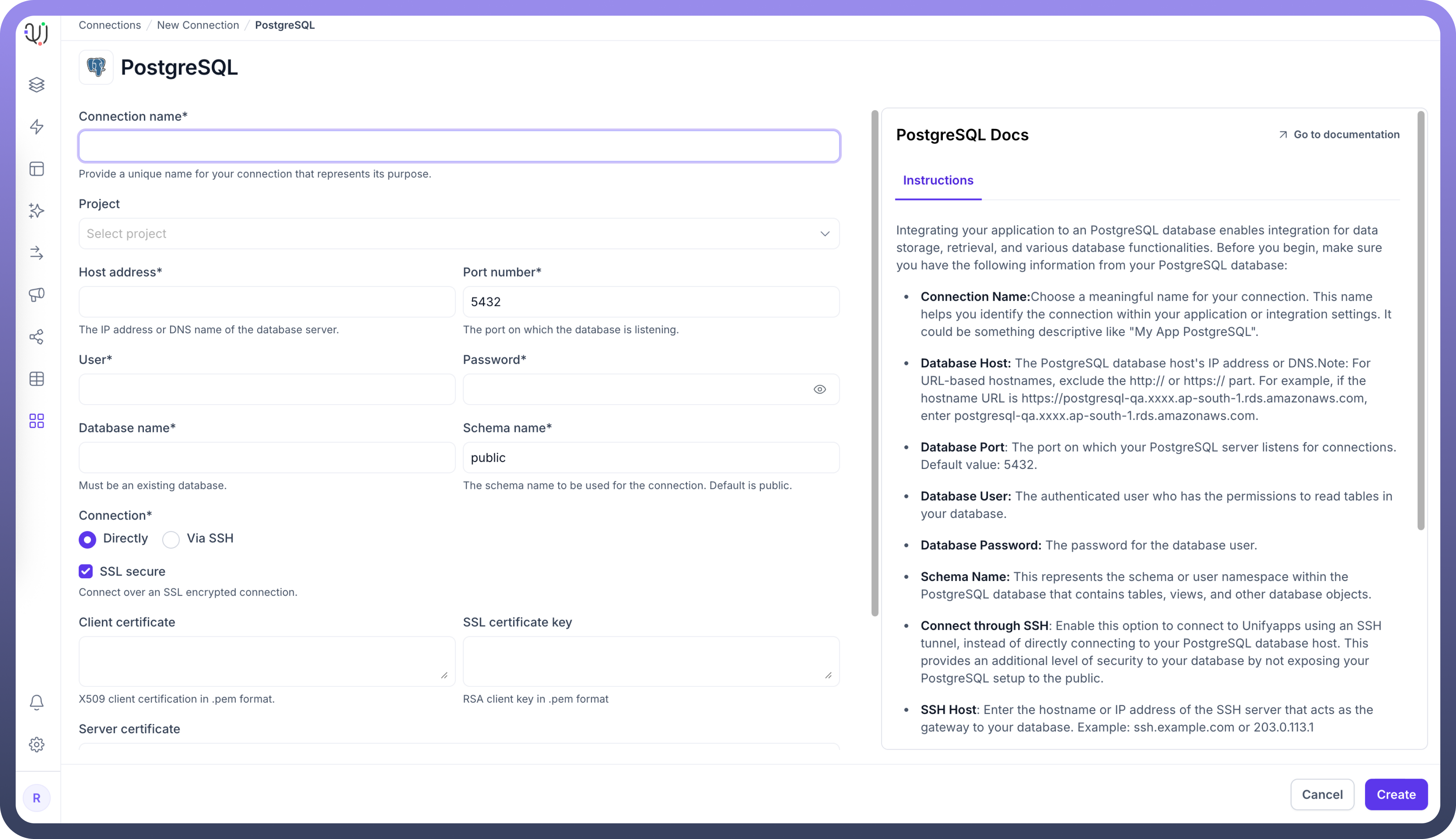

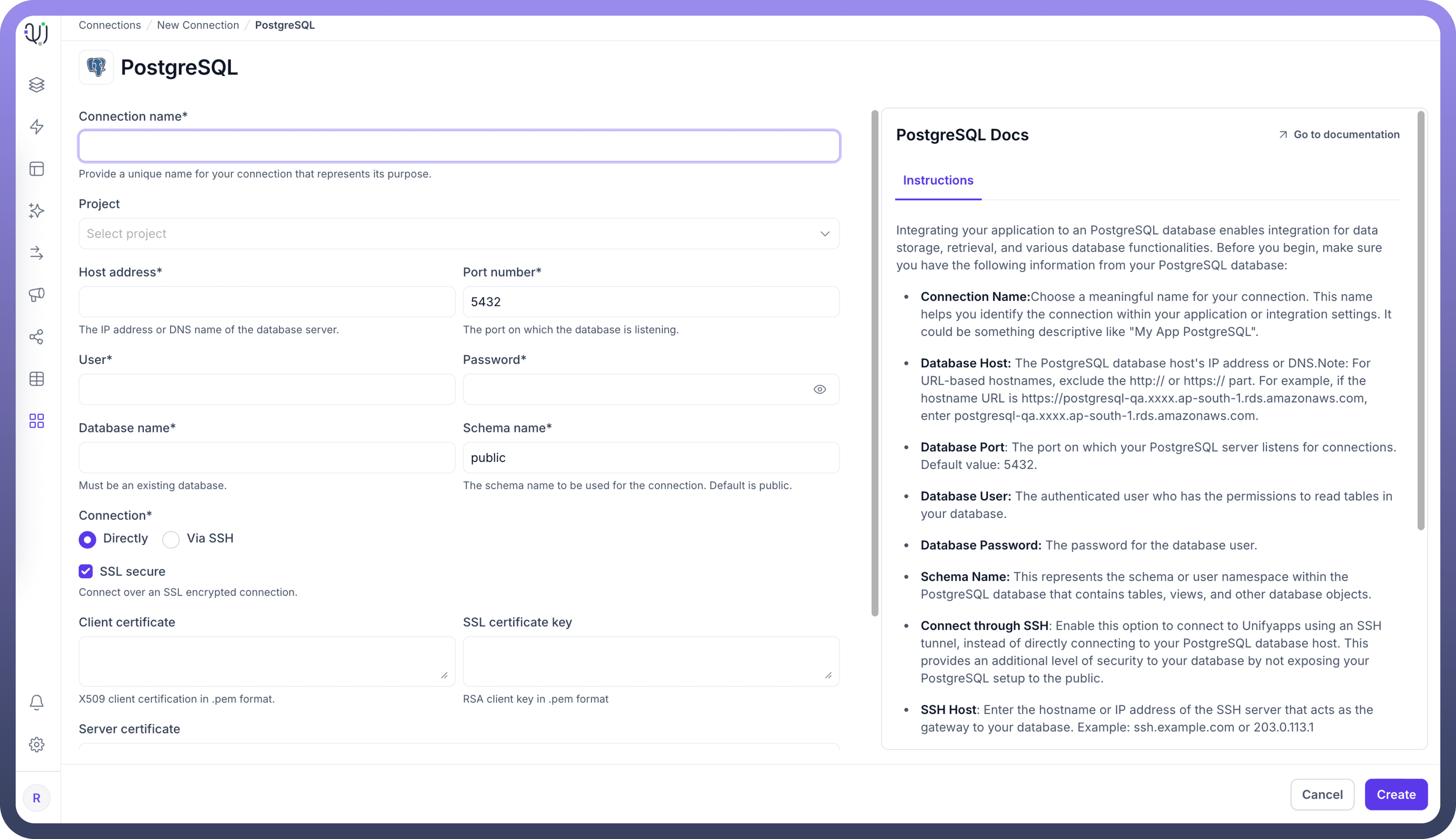

To set up a PostgreSQL destination, navigate to the Connections section, click New Connection, and select PostgreSQL as destination. Complete the form with your target database environment details.

Authentication Options

Basic Authentication

Connection Name: Choose a meaningful name for your connection. This name helps you identify the connection within your application or integration settings. It could be something descriptive like "Production Data Warehouse PostgreSQL".
Database Host: The PostgreSQL database host's IP address or DNS. Note: For URL-based hostnames, exclude the http:// or https:// part. For example, if the hostname URL is https://postgresql-prod.xxxx.ap-south-1.rds.amazonaws.com, enter postgresql-prod.xxxx.ap-south-1.rds.amazonaws.com.
Database Port: The port on which your PostgreSQL server listens for connections. Default value: 5432.
Database User: The authenticated user who has the permissions to create, insert, update, and delete tables in your database.
Database Password: The password for the database user.
Schema Name: This represents the schema or user namespace within the PostgreSQL database where tables will be created and data loaded.

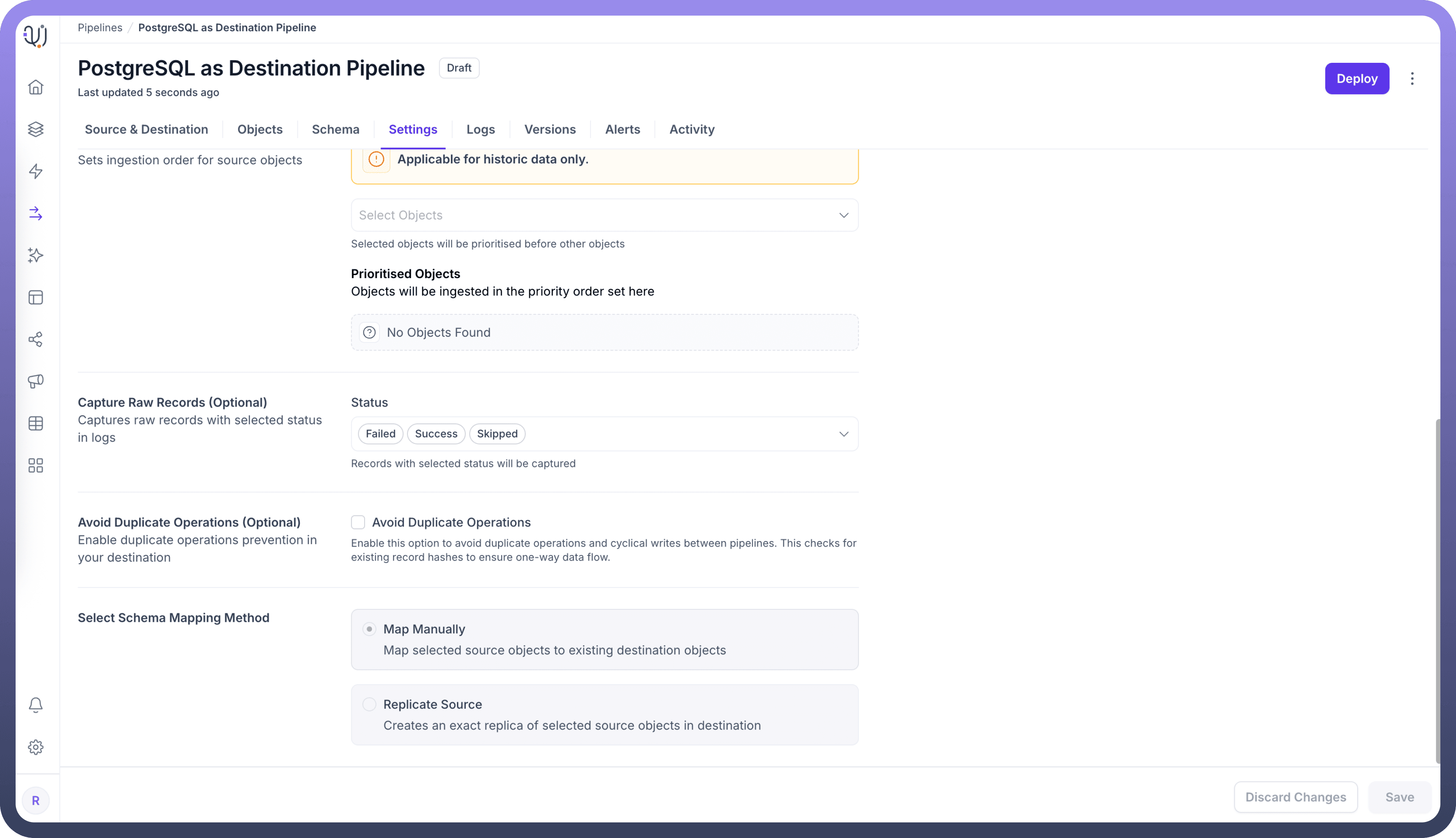

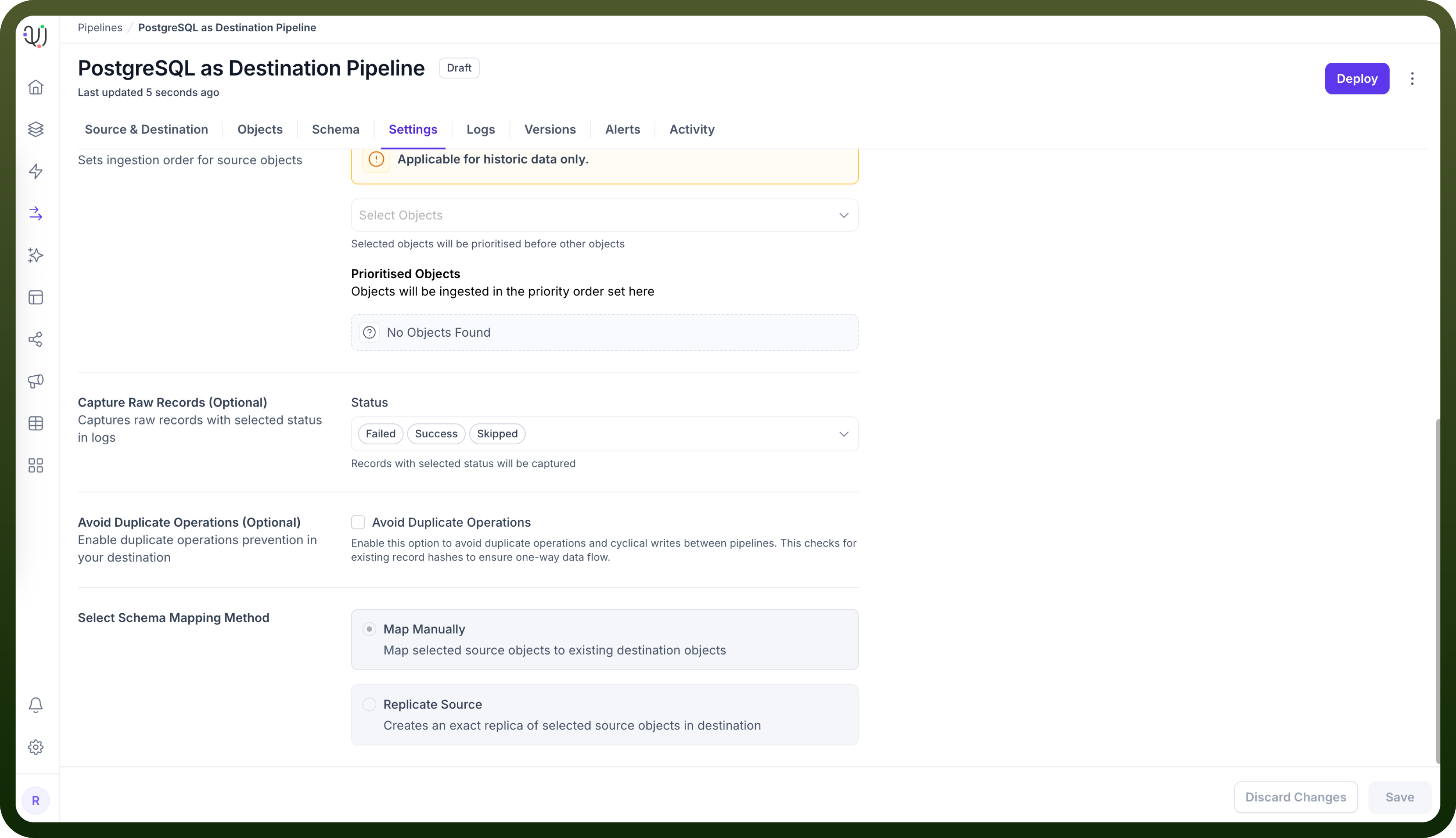

Schema Mapping

PostgreSQL as Destination in UnifyApps supports Manual Mapping only. This means you have full control over how source data fields map to destination table columns, allowing you to:

Define custom column names and data types
Apply data transformations during the mapping process
Handle complex data structures with precision
Ensure data quality through explicit mapping definitions

During pipeline configuration, you'll manually specify the mapping between source fields and PostgreSQL destination columns, providing flexibility for data transformation requirements.

Supported Data Types

UnifyApps handles these PostgreSQL data types for destination loading, ensuring proper conversion from your source systems:

Category	Supported Types
`Numeric`	bigint, integer, smallint, numeric[(p,s)], real, double precision, serial, bigserial, smallserial, money
`Text`	character[(n)], character varying[(n)], text
`Boolean`	boolean
`Date/Time`	date, time[(p)] [without time zone], time[(p)] with time zone, timestamp[(p)] [without time zone], timestamp[(p)] with time zone
`Network`	cidr, inet
`Binary`	bytea
`JSON`	json, jsonb

Common Business Scenarios

Data Warehousing

Load transformed data from multiple sources into PostgreSQL
Build dimensional models for business intelligence
Enable complex analytical queries with optimized schema design

Operational Data Store

Consolidate operational data from various systems
Provide unified view for real-time operational reporting
Support business processes with integrated data access

Customer Data Platform

Centralize customer data from multiple touchpoints
Enable 360-degree customer view for analytics
Support personalization and segmentation initiatives

Best Practices

Performance Optimization

Use appropriate batch sizes for bulk loading (recommended: 1000-5000 records)
Create indexes on frequently queried columns after data loading
Implement table partitioning for large datasets
Schedule heavy loads during off-peak hours

Security Considerations

Create dedicated database users with minimal required permissions
Use SSL encryption for sensitive data transmission
Implement SSH tunneling for databases in protected networks
Regularly rotate database credentials

Data Quality Management

Implement data validation rules in your pipeline configuration
Monitor for constraint violations and data type mismatches
Set up alerts for pipeline failures or data quality issues
Use staging tables for complex transformations before final loading

Schema Management

Plan schema design to accommodate future data growth
Use appropriate data types to optimize storage and performance
Implement proper primary keys and foreign key constraints
Document schema changes and maintain version control

Monitoring and Maintenance

Performance Monitoring

Track data loading times and throughput rates
Monitor database resource utilization during pipeline execution
Set up alerts for long-running or failed operations
Regular performance tuning based on query patterns

Database Maintenance

Schedule regular VACUUM and ANALYZE operations
Monitor database size and plan for storage growth
Implement backup and recovery procedures
Maintain connection pool settings for optimal performance

PostgreSQL's robust architecture and reliability make it an excellent destination for data pipelines. By following these configuration guidelines and best practices, you can ensure reliable, efficient data loading that meets your business needs for performance, scalability, and data integrity.

Integrating our data pipeline with your PostgreSQL database facilitates seamless data ingestion from multiple sources, enhancing your data storage and query capabilities for analytics, reporting, and operational use cases.
