Ingestion Order Setting for Priority-based Multi-entity Mapping

Priority-based Multi-entity mapping allows UnifyApps data pipelines to process multiple source entities in a specific order, ensuring that dependencies between data sets are maintained during ingestion operations. This setting is only applicable to historical data processing.

Ingestion Order Configuration for Data Dependencies

When configured, UnifyApps implements a priority-based system that enables:

Sequential processing of interdependent data sources
Dependency resolution for complex data relationships
Consistent data loading patterns across pipeline executions

Configuring Ingestion Order Settings in Pipeline Configuration

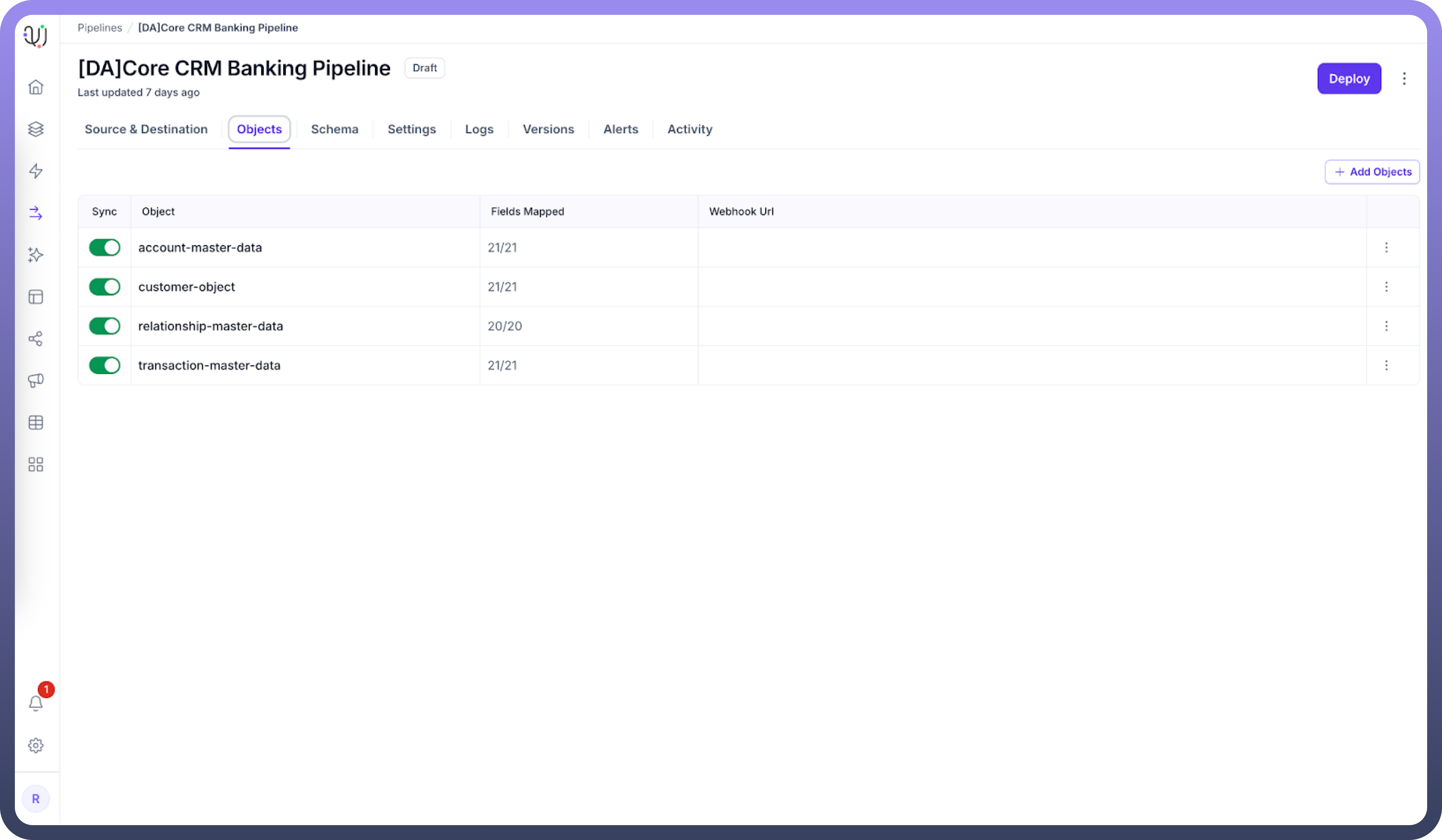

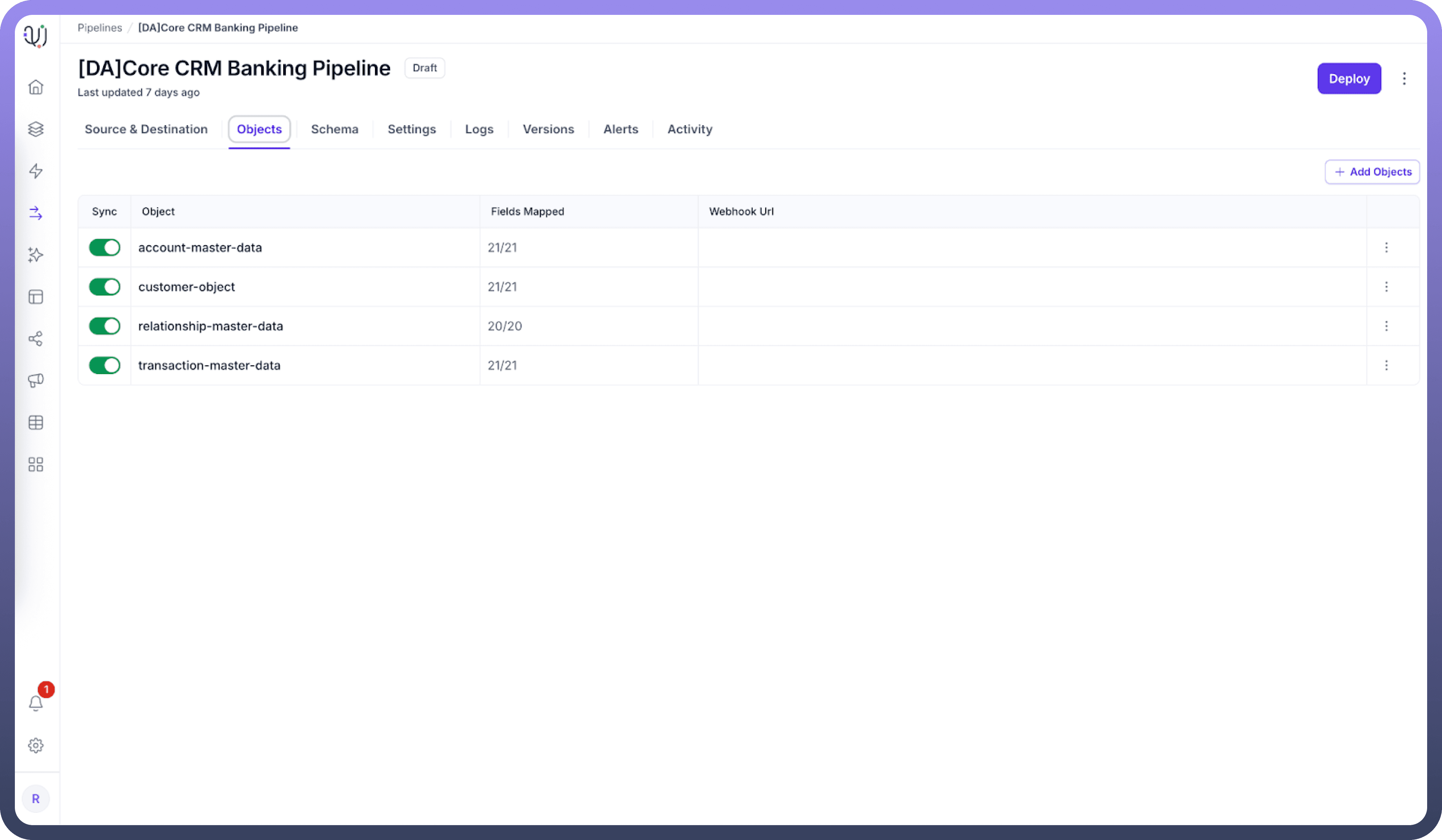

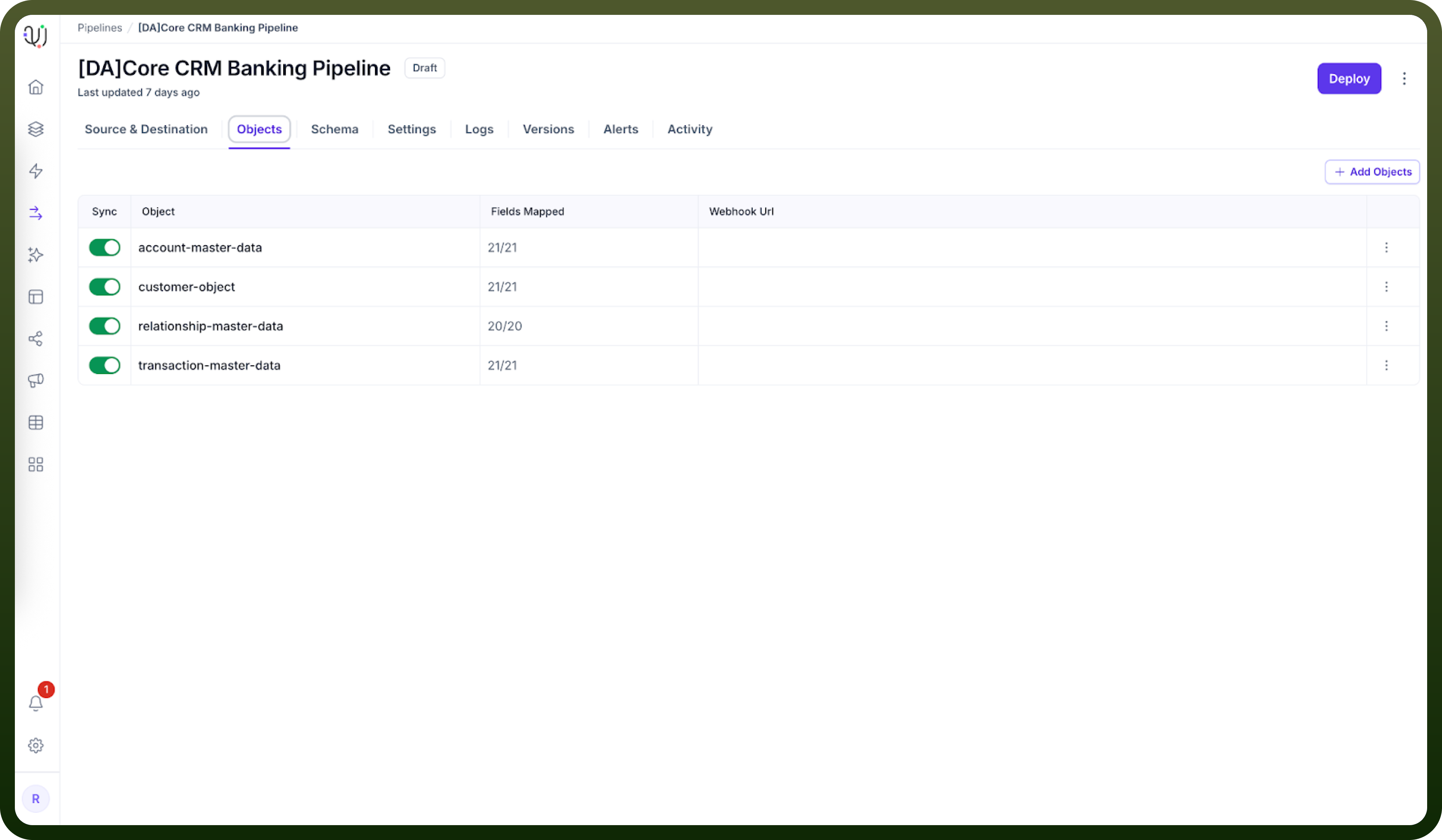

Lets say you have the below objects selected in the Objects Tab of your pipeline.

To enable priority-based ingestion ordering in your UnifyApps data pipeline:

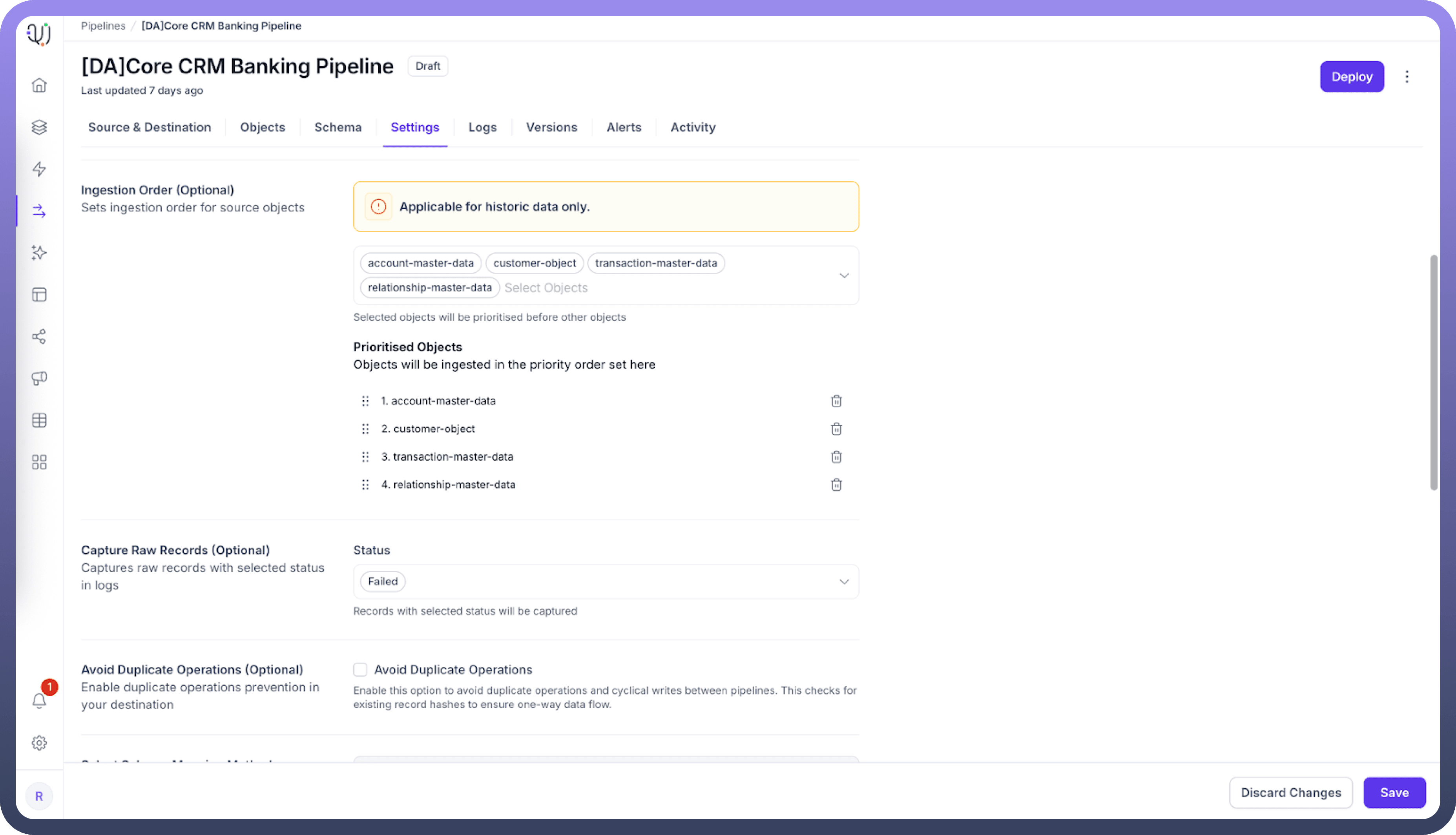

Go to the Settings tab.
Under the Ingestion Order (Optional) settings, select the entities that require specific processing priorities.
Reorder the objects by clicking and dragging on the Grab Handle icon.
Assign numeric priority values to each entity (lower numbers = higher priority).
Save your pipeline configuration.

How Ingestion Order Works

Let's walk through a simple example to demonstrate how ingestion order settings operate during data replication:

Example: E-commerce Data Sources

Source Entities - Initial Configuration

Entity Name	Contains	Dependencies
CUSTOMERS	Customer accounts	None
ORDERS	Customer purchase orders	Depends on CUSTOMERS
ORDER_ITEMS	Line items for each order	Depends on ORDERS

Day 1: Implementing Priority-based Ingestion

With Ingestion Order settings enabled:

Configured Ingestion Order (Priority-based)

Entity Name	Priority	Processing Order
CUSTOMERS	1	First
ORDERS	2	Second
ORDER_ITEMS	3	Third

Day 3: Adding a New Entity

Two days later, a new PROMOTIONS entity is added to the source:

Updated Source Entities

Entity Name	Contains	Dependencies
CUSTOMERS	Customer accounts	None
ORDERS	Customer purchase orders	Depends on CUSTOMERS
ORDER_ITEMS	Line items for each order	Depends on ORDERS
PROMOTIONS	Discount codes applied to orders	Depends on ORDERS

Day 3: Updated Ingestion Order

When the pipeline configuration is updated:

Updated Ingestion Order

Entity Name	Priority	Processing Order
CUSTOMERS	1	First
ORDERS	2	Second
PROMOTIONS	3	Third
ORDER_ITEMS	4	Fourth

Notice the key adjustments:

PROMOTIONS is inserted with priority 3
ORDER_ITEMS is moved to priority 4 to respect the new dependency chain
All entities maintain their proper processing sequence despite the addition

Practical Use Cases for Ingestion Order

Hierarchical Data Structures

When dealing with parent-child relationships:

-- First load departments
SELECT * FROM departments;
-- Then load employees that reference departments
SELECT * FROM employees;
-- Finally load employee_performance that references employees
SELECT * FROM employee_performance;

Transactional Data with Lookups

For financial transactions with reference data:

-- First load account reference data
SELECT * FROM accounts;
-- Then load transaction headers
SELECT * FROM transactions;
-- Finally load transaction details
SELECT * FROM transaction_line_items;

Event Sequence Processing

For time-series data that builds on previous events:

-- First load base customer profiles
SELECT * FROM customers;
-- Then load customer status changes
SELECT * FROM customer_status_history;
-- Finally load customer interactions
SELECT * FROM customer_interactions;

By implementing priority-based ingestion ordering, you ensure that interdependent historical data is processed in the correct sequence, preventing referential integrity issues and maintaining data consistency across your entire data pipeline process. Remember that this setting only applies to historical data loads and does not affect incremental or real-time data processing.
