UnifyApps enables seamless integration with Oracle databases as a destination for your data pipelines. This article covers essential configuration elements and best practices for loading data into Oracle destinations.
Overview
Oracle Database is widely used for enterprise applications including ERP systems, financial platforms, and customer management solutions. UnifyApps provides native connectivity to load data into these Oracle environments efficiently and securely, making it ideal for enterprise data warehousing, operational data stores, and business-critical applications.
Prerequisites
Before configuring Oracle as your destination, ensure you have:
Oracle Database Instance: Access to an active Oracle database instance (on-premises or cloud)
Connection Information: Server hostname/IP address, port number (default 1521), and database/service name details
Authentication Credentials: Oracle database username and password with appropriate privileges
Database Privileges: The user needs CREATE, INSERT, UPDATE, and DELETE privileges on the target schema:
GRANT CREATE SESSION TO <username>;
GRANT CREATE TABLE TO <username>;
GRANT INSERT, UPDATE, DELETE ON <schema>.<table> TO <username>;
5. Schema Access: Appropriate permissions for the target schema where data will be loaded
Connection Configuration
Parameter | Description | Example |
| Descriptive identifier for your connection | " |
| Oracle server hostname or IP address | " |
| Database listener port | 1521 (default) |
| Database username with write permissions | " |
| Authentication credentials | " |
| SID or service name of your Oracle instance | " |
| Name of Pluggable Database (if using CDB) | " |
| Schema for loading destination tables | " |
| Method of connecting to the database | Direct |

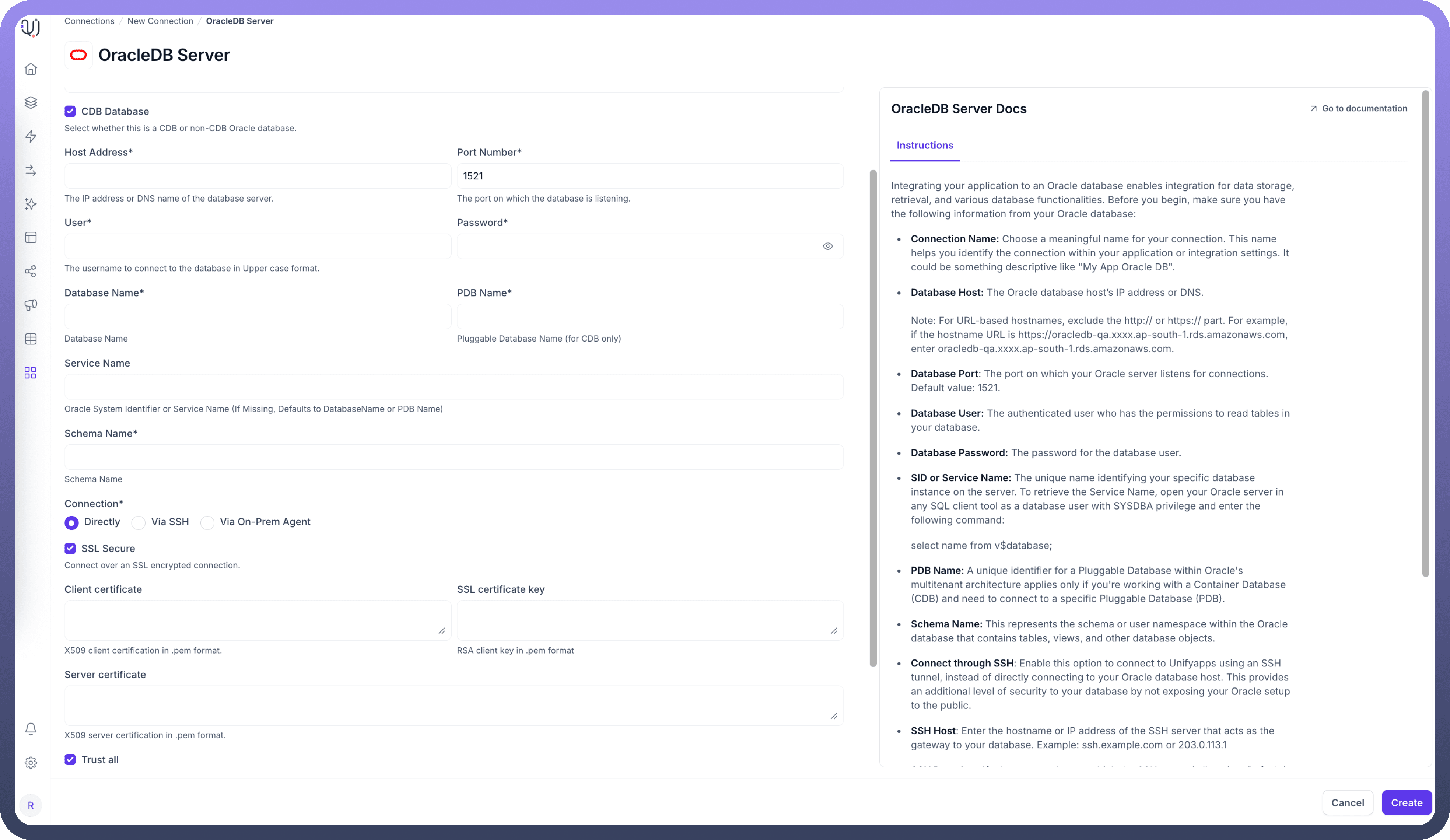

To set up an Oracle destination, navigate to the Connections section, click New Connection, and select OracleDB Server as destination. Fill in the parameters above based on your Oracle environment details.
Authentication
Connection Name: Choose a meaningful name for your destination connection, such as "
Enterprise Data Warehouse Oracle"Database Host: The Oracle database server's IP address or DNS hostname
Database Port: The port on which your Oracle listener accepts connections (default: 1521)
Database User: The authenticated user with permissions to create and modify tables in your target schema
Database Password: The password for the database user
Database/Service Name: The Oracle SID or service name for your target database instance
PDB Name: If using Oracle Container Database (CDB), specify the Pluggable Database name
Schema Name: Target schema where tables will be created and data loaded
Schema Mapping
OracleDB as Destination in UnifyApps supports Manual Mapping only. This provides precise control over data transformation and loading:
Define custom column names and Oracle-specific data types
Apply data transformations during the mapping process
Handle complex Oracle data structures with precision
Ensure data quality through explicit mapping definitions
Leverage Oracle's advanced data type capabilities
During pipeline configuration, you'll manually specify the mapping between source fields and Oracle destination columns, enabling optimal data transformation for your enterprise requirements.
Supported Data Types
UnifyApps handles these Oracle data types for destination loading, ensuring proper conversion from your source systems:
Category | Supported Types |
| VARCHAR2, NVARCHAR2, CHAR, NCHAR, LONG |
| NUMBER, FLOAT, BINARY_FLOAT |
| DATE, TIMESTAMP, TIMESTAMP WITH TIME ZONE |
| RAW, LONG RAW |
| CLOB, NCLOB, BLOB, BFILE |
| ROWID, UROWID |
All common Oracle data types are supported, including specialized types for financial and transactional systems.
Destination Loading Timezone Configuration

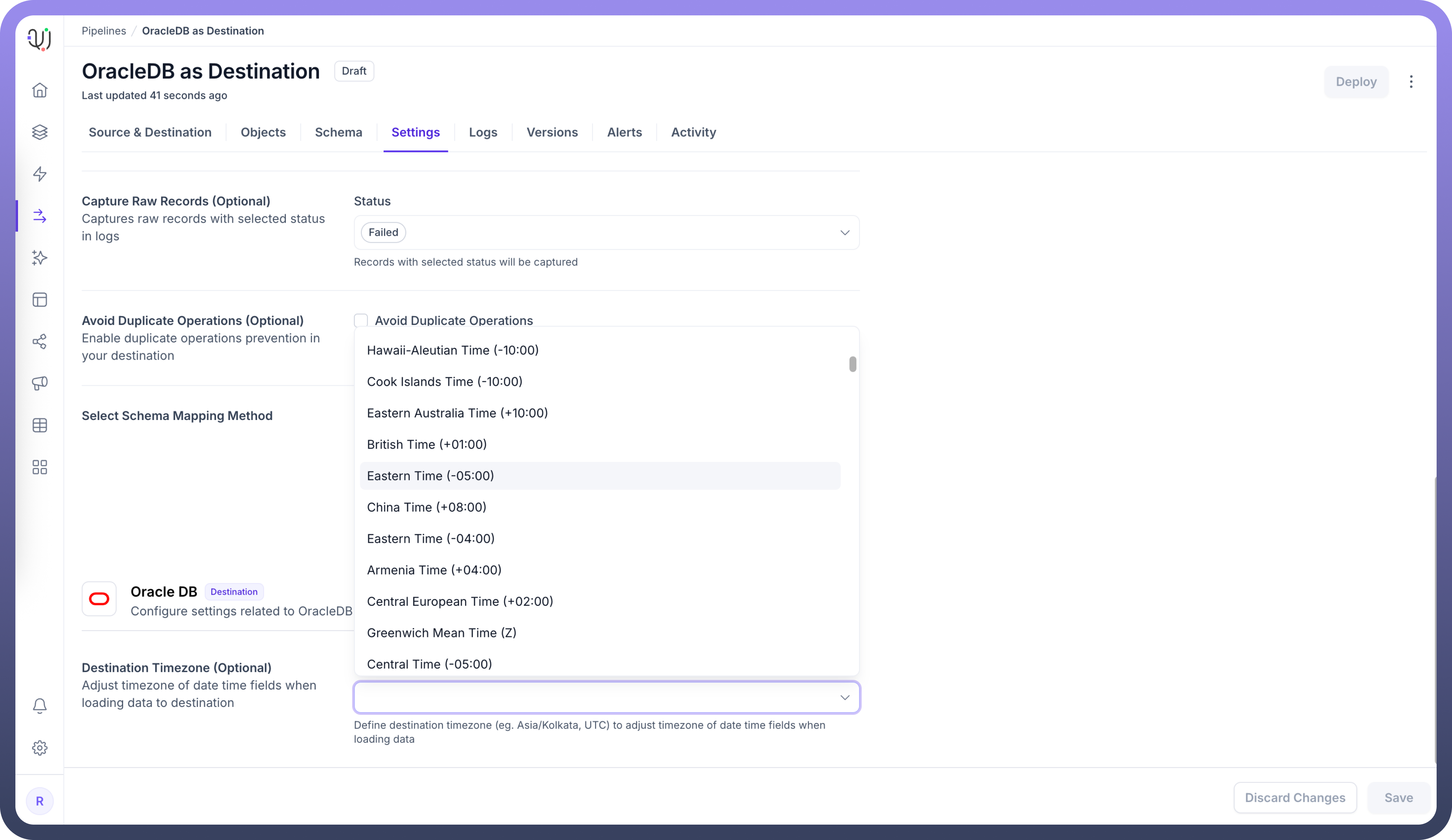

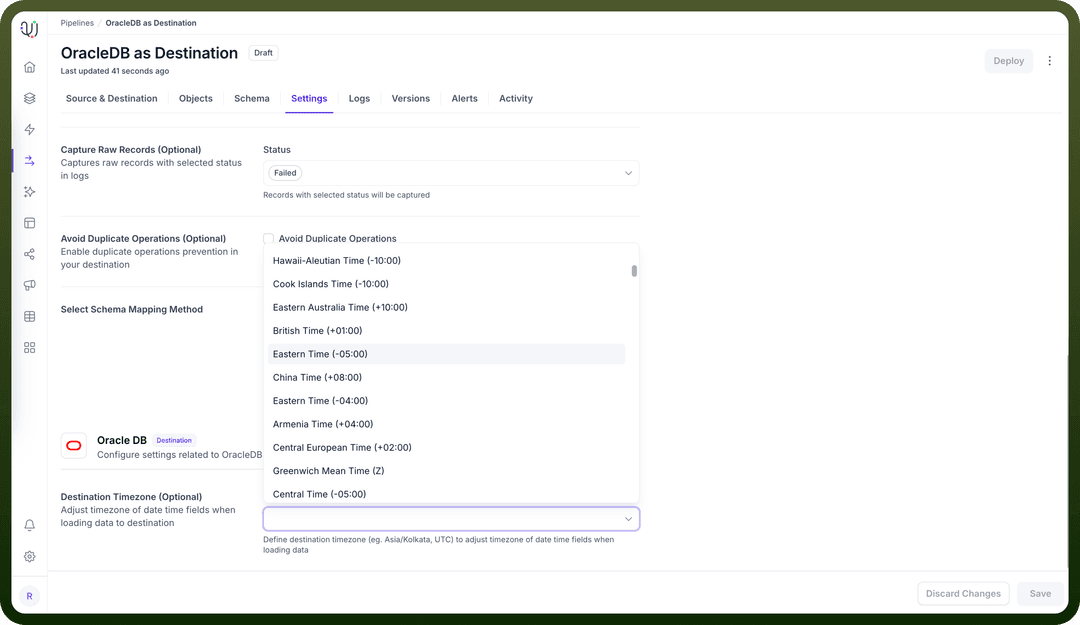

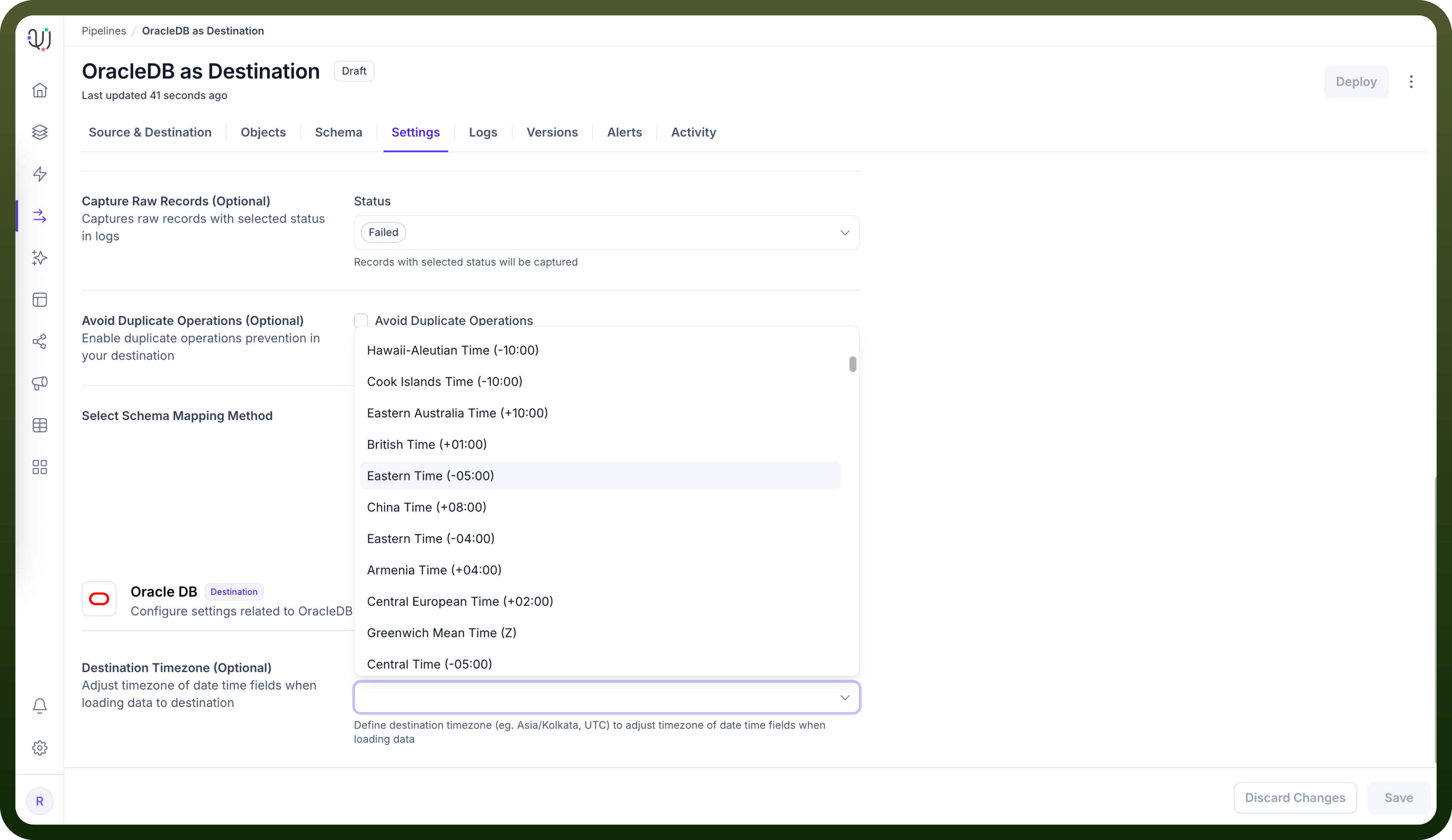

When configuring your Oracle destination pipeline, you can set the Destination Loading Timezone in the pipeline settings tab:
Navigate to the pipeline settings and find the Destination Loading Timezone option
Configure this setting to specify how timestamp data should be stored in Oracle
This setting controls the timezone context for data being loaded into your Oracle destination
Select the appropriate timezone based on your business requirements and Oracle database configuration
This ensures all timestamp data is consistently handled during the loading process, maintaining data integrity across your pipeline
Common Business Scenarios
Enterprise Data Warehousing
Load transformed data from multiple sources into Oracle data warehouse
Build dimensional models leveraging Oracle's advanced analytical capabilities
Enable complex business intelligence queries with optimized schema design
Financial Data Integration
Load financial data into Oracle Financials or custom financial applications
Ensure fiscal period timestamps are properly timezone-adjusted
Maintain regulatory compliance for financial data storage
Customer Data Consolidation
Centralize customer records into Oracle CRM or EBS systems
Map customer hierarchies and relationships during loading
Maintain referential integrity in destination tables
Supply Chain Data Management
Load inventory and order data into Oracle SCM applications
Configure data loading for critical business operations
Apply appropriate data validation for high-volume transaction data
Best Practices
Performance Optimization
Use appropriate batch sizes for bulk loading operations
Create indexes on frequently queried columns after data loading
Leverage Oracle's partitioning capabilities for large datasets
Schedule heavy loads during off-peak hours to minimize impact
Security Considerations
Create dedicated Oracle users with minimum required permissions
Follow enterprise password policies and credential rotation
Coordinate with enterprise security teams for database access
Data Quality Management
Implement data validation rules in your pipeline configuration
Monitor for Oracle constraint violations and data type mismatches
Set up alerts for pipeline failures or data quality issues
Use staging tables for complex transformations before final loading
Enterprise Integration
Document source-to-target mappings for compliance reporting
Maintain data lineage for audit and governance requirements
Coordinate with Oracle DBA team for optimal configuration
Follow enterprise change management processes
Monitoring and Maintenance
Performance Monitoring
Track data loading times and throughput rates
Monitor Oracle database resource utilization during pipeline execution
Use Oracle AWR reports to analyze loading performance
Set up alerts for long-running or failed operations
Database Maintenance
Coordinate with Oracle DBA team for regular maintenance windows
Monitor tablespace usage and plan for storage growth
Implement appropriate backup and recovery procedures
Maintain Oracle connection pool settings for optimal performance
Oracle Database's enterprise-grade architecture and reliability make it an excellent destination for mission-critical data pipelines. By following these configuration guidelines and best practices, you can ensure reliable, efficient data loading that meets your enterprise requirements for performance, scalability, and data integrity.
UnifyApps integration with Oracle databases facilitates seamless data loading from multiple sources, enhancing your enterprise data infrastructure for analytics, reporting, and operational excellence.
