SCD (Slowly Changing Dimension) Type 2 is a methodology for tracking historical changes in data over time. Within UnifyApps data pipelines, special timestamp fields can be configured to automatically track when records are created and modified during source replication operations.

Timestamp Fields for Historical Data Tracking

When configured, UnifyApps implements these timestamp fields:

  • __unifyapps__created_at: Records when a row was first created

  • __unifyapps__modified_at: Tracks when a row was last modified

How These Fields Work: Example

Let's walk through a simple example to demonstrate how these timestamp fields operate during data replication:

Example: Product Catalog Source Table

Source Table (PRODUCTS) - Initial Data

PRODUCT_ID

NAME

PRICE

101

Laptop

999

102

Smartphone

699

103

Headphones

199

Day 1: Initial Data Load

When the pipeline runs the first time with SCD Type 2 timestamps enabled:

Destination Table (After Initial Load)

PRODUCT_ID

NAME

PRICE

__unifyapps__created_at

__unifyapps__modified_at

101

Laptop

999

2025-05-01T10:00:00Z

2025-05-01T10:00:00Z

102

Smartphone

699

2025-05-01T10:00:00Z

2025-05-01T10:00:00Z

103

Headphones

199

2025-05-01T10:00:00Z

2025-05-01T10:00:00Z

Notice that both timestamp fields are initially set to the same value - the time of the initial data load.

Day 3: Price Updates and New Product

Two days later, prices are updated and a new product is added to the source:

Source Table (PRODUCTS) - Updated Data

PRODUCT_ID

NAME

PRICE

101

Laptop

899

102

Smartphone

699

103

Headphones

149

104

Tablet

499

Day 3: After Pipeline Execution

When the pipeline runs again:

Destination Table (After Update)

PRODUCT_ID

NAME

PRICE

__unifyapps__created_at

__unifyapps__modified_at

101

Laptop

899

2025-05-01T10:00:00Z

2025-05-03T15:00:00Z

102

Smartphone

699

2025-05-01T10:00:00Z

2025-05-01T10:00:00Z

103

Headphones

149

2025-05-01T10:00:00Z

2025-05-03T15:00:00Z

104

Tablet

499

2025-05-03T15:00:00Z

2025-05-03T15:00:00Z

Notice the key differences:

  • Products 101 (Laptop) and 103 (Headphones): The __unifyapps__modified_at timestamp is updated to reflect the price changes, but the __unifyapps__created_at remains the same

  • Product 102 (Smartphone): Both timestamps remain unchanged as there were no updates

  • Product 104 (Tablet): Both timestamp fields are set to the current time since this is a new record

Day 5: Product Name Change

Two days later, a product name is changed:

Source Table (PRODUCTS) - Latest Data

PRODUCT_ID

NAME

PRICE

101

Laptop Pro

899

102

Smartphone

699

103

Headphones

149

104

Tablet

499

Destination Table (After Final Update)

PRODUCT_ID

NAME

PRICE

__unifyapps__created_at

__unifyapps__modified_at

101

Laptop Pro

899

2025-05-01T10:00:00Z

2025-05-05T11:30:00Z

102

Smartphone

699

2025-05-01T10:00:00Z

2025-05-01T10:00:00Z

103

Headphones

149

2025-05-01T10:00:00Z

2025-05-03T15:00:00Z

104

Tablet

499

2025-05-03T15:00:00Z

2025-05-03T15:00:00Z

Note that:

  • Product 101 (Laptop Pro): The __unifyapps__modified_at timestamp is updated again to reflect the name change

  • All other products: Timestamps remain unchanged as there were no updates

Practical Use Cases for These Timestamp Fields

  • Identifying Recently Added Products

    SELECT * FROM products_destination
    WHERE __unifyapps__created_at > '2025-05-02T00:00:00Z';


Result:

PRODUCT_ID

NAME

PRICE

__unifyapps__created_at

__unifyapps__modified_at

104

Tablet

499

2025-05-03T15:00:00Z

2025-05-03T15:00:00Z

  • Finding Recently Modified Products

    SELECT * FROM products_destination
    WHERE __unifyapps__modified_at > '2025-05-04T00:00:00Z';

Result:

PRODUCT_ID

NAME

PRICE

__unifyapps__created_at

__unifyapps__modified_at

101

Laptop Pro

899

2025-05-01T10:00:00Z

2025-05-05T11:30:00Z

  • Identifying Unchanged Products Since Initial Load

SELECT * FROM products_destination
WHERE __unifyapps__created_at = __unifyapps__modified_at;

Result:

PRODUCT_ID

NAME

PRICE

__unifyapps__created_at

__unifyapps__modified_at

102

Smartphone

699

2025-05-01T10:00:00Z

2025-05-01T10:00:00Z

104

Tablet

499

2025-05-03T15:00:00Z

2025-05-03T15:00:00Z

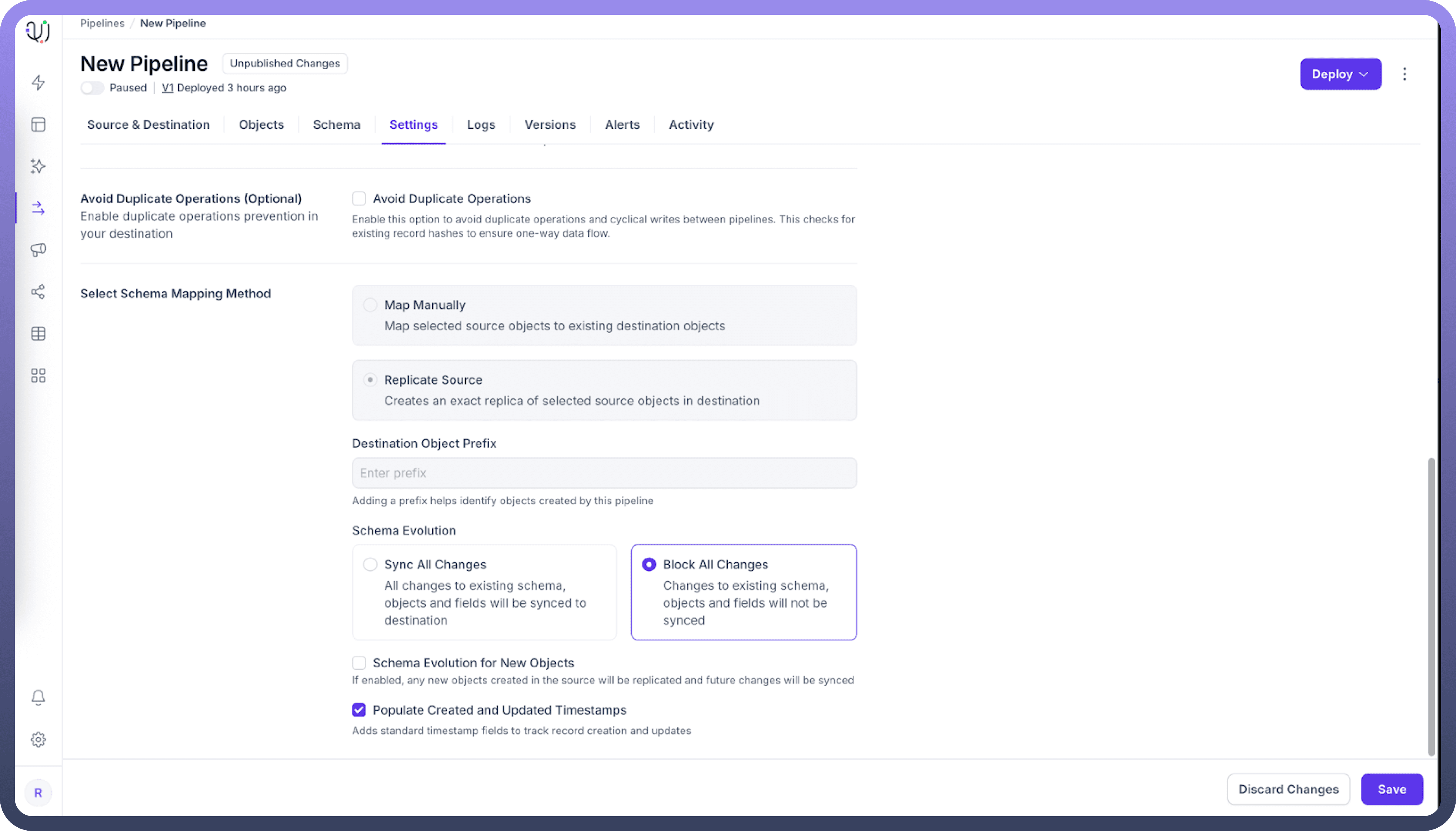

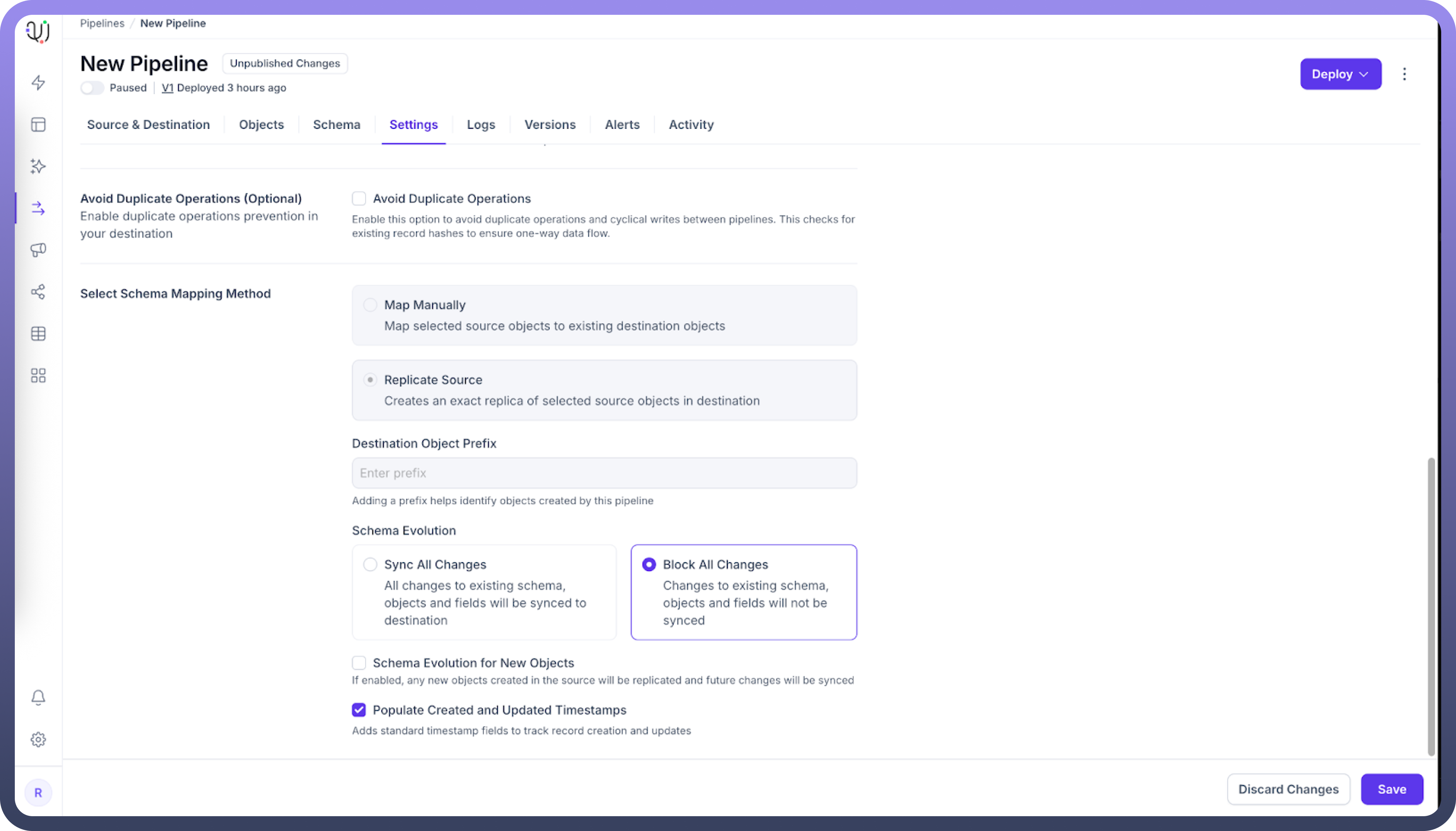

Configuring SCD Type 2 Settings in Pipeline Configuration

To enable these timestamp fields in your UnifyApps data pipeline:

  1. Choose Source Replication as your mapping method

  2. Go to Settings Tab.

  3. Tick the Populate Created and Updated Timestampsoption.

  4. Click on Save to save your pipeline configuration.


By implementing these timestamp fields, you gain valuable insights into the lifecycle of your data and ensure proper tracking of when records were created and last modified in your data pipelines.
