Microsoft SQL Server as Destination

UnifyApps enables seamless integration with Microsoft SQL Server databases as a destination for your data pipelines. This article covers essential configuration elements and best practices for connecting to MSSQL destinations.

Overview

Microsoft SQL Server is widely used for enterprise applications including business intelligence, transaction processing, and analytics platforms. UnifyApps provides native connectivity to load data into these MSSQL environments efficiently and securely.

Connection Configuration

Parameter	Description	Example
`Connection Name`	Descriptive identifier for your connection	"Production MSSQL CRM"
`Host Address`	MSSQL server hostname or IP address	"mssqldb-prod.xxxx.database.windows.net"
`Port Number`	Database listener port	1433 (default)
`User`	Database username with write permissions	"unify_writer"
`Password`	Authentication credentials	"********"
`Database Name`	Name of your MSSQL database	"CustomerDB"
`Schema Name`	Schema containing your destination tables	"dbo" (default)
`Connection Type`	Method of connecting to the database	Direct or SSH Tunnel

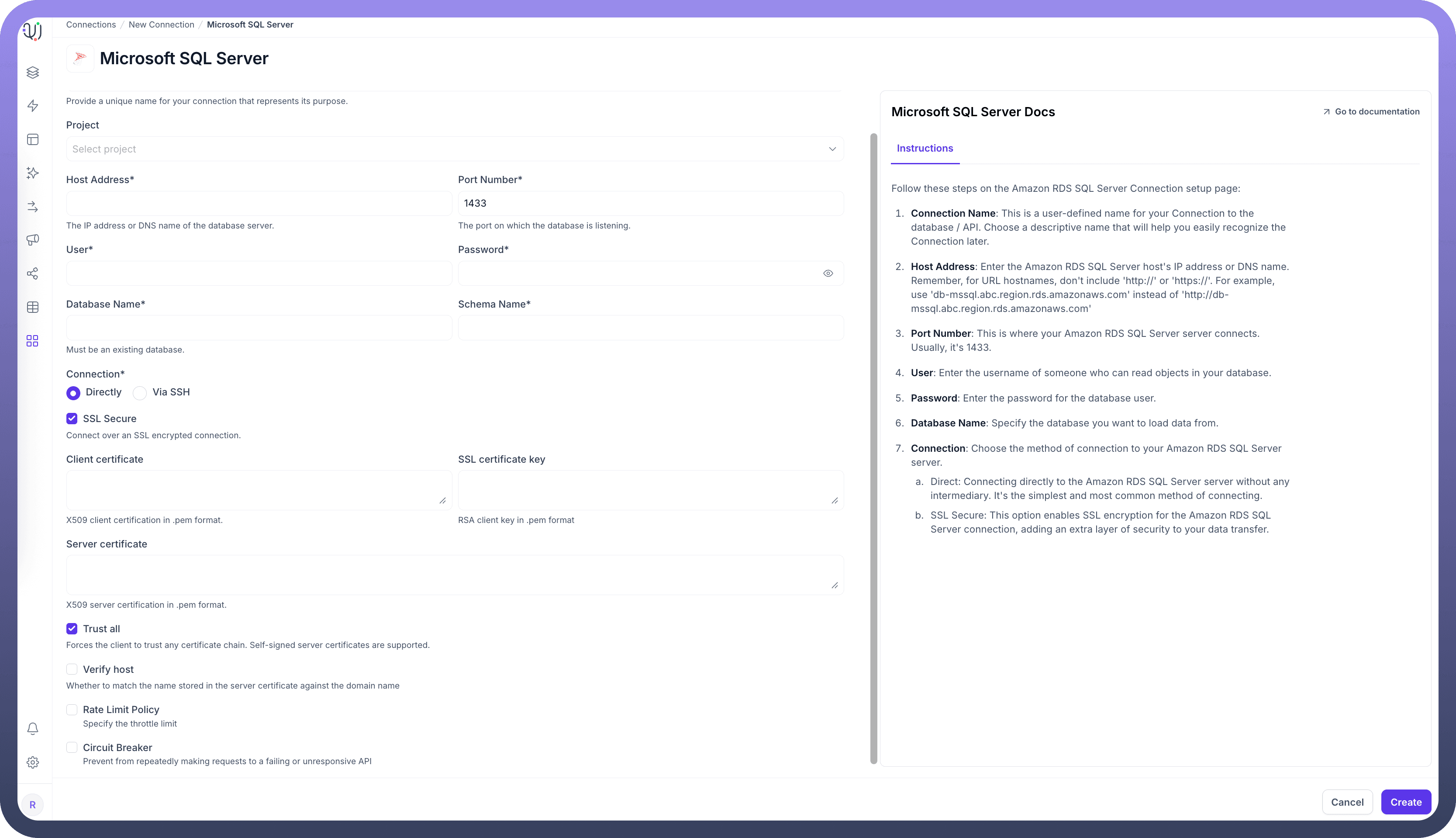

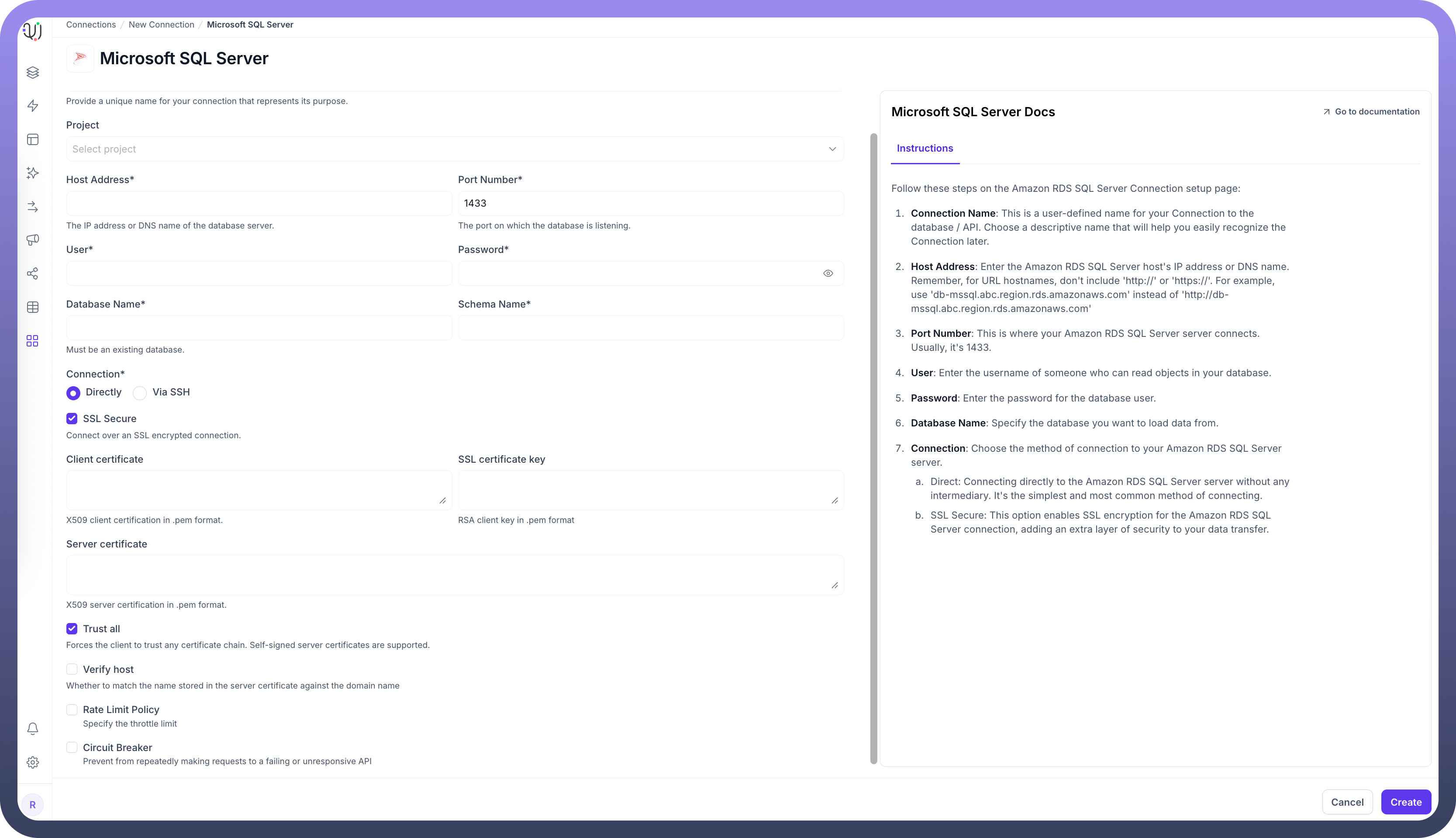

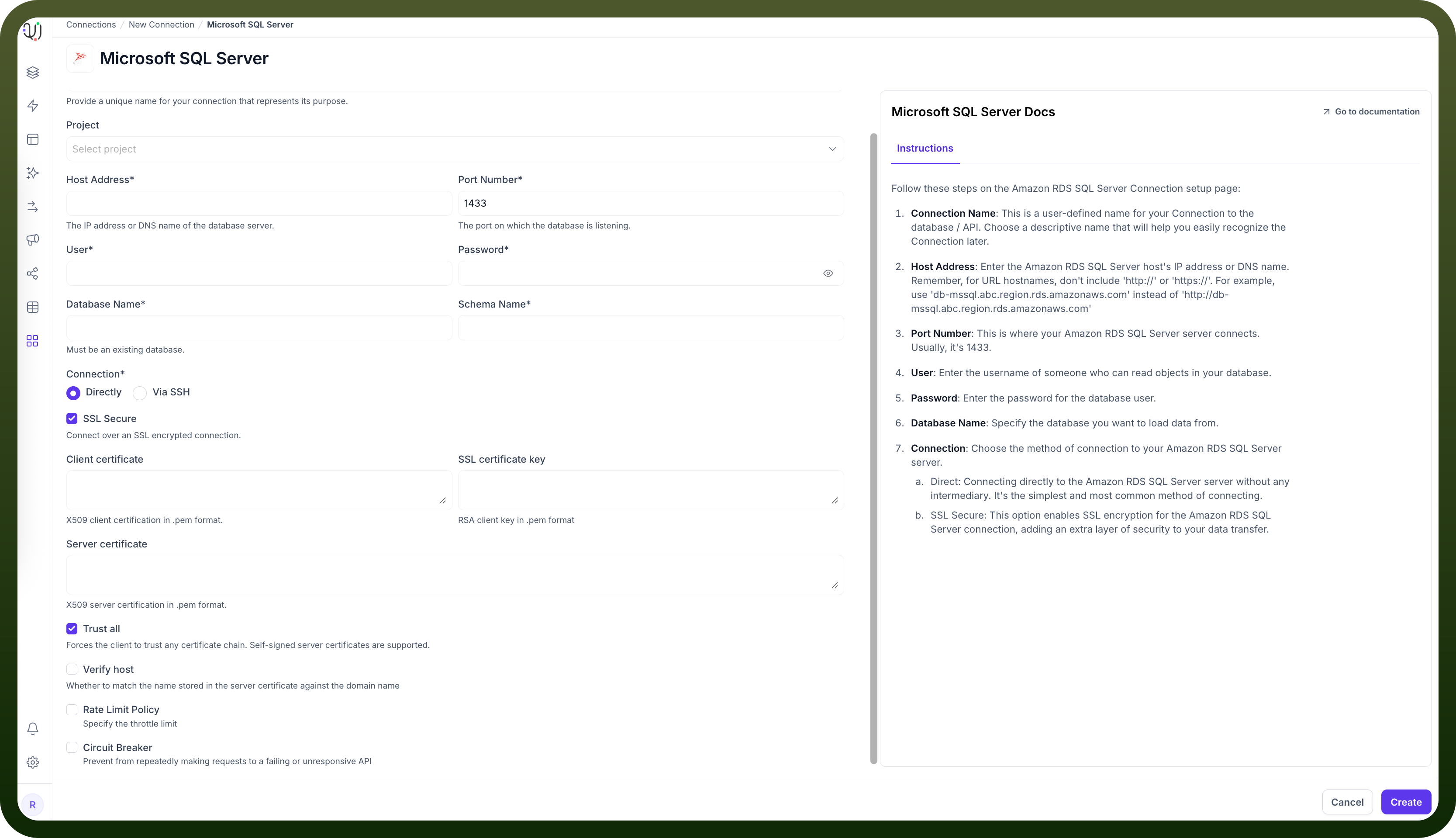

To set up a MSSQL destination, navigate to the Connections section, click New Connection, and select Microsoft SQL Server. Fill in the parameters above based on your MSSQL environment details.

For SSH tunnel connections, additional parameters are required:

SSH Host: Hostname or IP address of the SSH server
SSH Port: Port for SSH connections (default 22)
SSH User: Username for SSH authentication
SSH Authentication: Password or key-based authentication

Destination Settings Configuration

UnifyApps provides flexible configuration options for MSSQL destinations through the Settings tab in Data Pipelines:

Destination Timezone (Optional)

The Destination Timezone setting in the Pipeline Settings tab allows you to adjust the timezone of date and time fields when loading data to your destination.

Key Features:

Adjust timezone of date time fields when loading data to destination
Define destination timezone (e.g., Asia/Kolkata, UTC) to adjust timezone of date time fields when loading data
Maintain temporal consistency across different geographic locations and systems

Configuration Steps:

Navigate to your Data Pipeline
Open the Settings tab
Locate the "Destination Timezone (Optional)" section
Select your desired timezone from the dropdown menu
The system will automatically convert timestamp data from the source timezone to your specified destination timezone during the loading process

Benefits:

Geographic Consistency: Ensure date/time data reflects the correct local time for your destination system
Business Logic Alignment: Align timestamps with business operations in specific time zones
Reporting Accuracy: Maintain accurate temporal data for region-specific reporting and analytics
Compliance Support: Meet regulatory requirements for timestamp accuracy in specific jurisdictions

This setting is particularly useful when loading data from sources in different time zones or when your destination system serves users in a specific geographic region.

CRUD Operations Support

All database operations to MSSQL destinations are supported and logged as unique actions:

Operation	Description	Business Value
`Create`	New record insertions	Enable data growth and pipeline expansion
`Read`	Data retrieval for validation	Support data quality checks and monitoring
`Update`	Record modifications	Maintain data accuracy and freshness
`Delete`	Record removals	Support data lifecycle management and compliance

This comprehensive logging supports audit requirements and troubleshooting efforts.

Supported Data Types

Category	Supported Types
`Integer`	tinyint, smallint, int, bigint, bit
`Decimal`	numeric, decimal, money, smallmoney, float, real
`Date/Time`	date, time, datetime, datetime2, datetimeoffset, smalldatetime
`String`	char, varchar, text, nchar, nvarchar, ntext
`Binary`	binary, varbinary
`Specialized`	sql_variant, uniqueidentifier, rowversion
`JSON`	json

All common MSSQL data types are supported, including specialized types for transactional systems and modern applications.

Special Considerations for rowversion Data Type

The rowversion (also known as timestamp) data type is particularly important for data synchronization scenarios:

Key Characteristics:

Automatically generated binary value that uniquely identifies row modifications
Changes whenever the row is inserted or updated
Essential for optimistic concurrency control and change tracking

Common Use Cases:

Data Synchronization: Use rowversion columns to identify which records have been modified since the last sync operation
Conflict Detection: Implement optimistic locking mechanisms to detect concurrent modifications
Incremental Loading: Efficiently identify changed records for delta synchronization without maintaining separate audit columns
ETL Optimization: Track the last processed rowversion value to resume data loading from the exact point of interruption
Change Data Capture: Build custom CDC solutions by comparing rowversion values between source and destination

Prerequisites and Permissions

To establish a successful MSSQL destination connection, ensure:

Access to an active MSSQL Server instance
Minimum required role: "db_datawriter" on the target database
Recommended permissions: INSERT, UPDATE, DELETE on relevant tables
CREATE TABLE permissions for dynamic table creation
Proper network connectivity and firewall rules

Additional Permissions for Advanced Operations

For comprehensive data loading capabilities:

-- Grant data modification permissions
GRANT INSERT, UPDATE, DELETE ON SCHEMA::dbo TO [unify_writer];
-- Grant table creation permissions
GRANT CREATE TABLE TO [unify_writer];
-- Grant schema permissions
GRANT ALTER ON SCHEMA::dbo TO [unify_writer];
-- For bulk operations
GRANT ADMINISTER BULK OPERATIONS TO [unify_writer];

Common Business Scenarios

Customer Data Loading

Load customer records into MSSQL CRM databases
Ensure proper handling of nullable fields and relationships
Maintain customer hierarchies and related entities
Support upsert operations for customer data synchronization

Financial Data Integration

Load transaction data into MSSQL financial systems
Configure date/time handling for fiscal period accuracy
Implement data validation for financial integrity
Support batch processing for end-of-day reconciliation

Product Catalog Management

Load product catalog and inventory updates into MSSQL
Handle high-volume product attribute changes
Maintain product hierarchies and category relationships
Support real-time inventory level updates

Analytics and Reporting

Populate data marts for business intelligence tools
Load aggregated data for reporting dashboards
Support historical data loading for trend analysis
Enable cross-functional reporting across departments

Best Practices

Performance Optimization

Batch Operations: Use bulk insert operations for large datasets to improve performance
Indexing Strategy: Ensure destination tables have appropriate indexes for write operations
Connection Pooling: Leverage connection pooling for high-frequency data loads
Transaction Management: Use appropriate transaction sizes to balance performance and recovery
Partitioning: Consider table partitioning for very large destination tables

Security Considerations

Least Privilege: Create database users with minimum required permissions for write operations
Network Security: Use SSH tunneling for databases in protected networks
Credential Management: Secure credentials using enterprise password policies and rotation
Audit Logging: Enable database audit logging for compliance and security monitoring
Data Masking: Implement data masking for sensitive information in non-production environments

Data Governance

Schema Management: Document destination schema designs and data mappings
Data Lineage: Maintain comprehensive data lineage documentation for compliance
Quality Assurance: Implement data validation rules and quality checks
Change Management: Establish proper change control procedures for schema modifications
Monitoring: Set up alerts for pipeline failures and data quality issues

Optimization Strategies

Table Design: Design destination tables with appropriate data types and constraints
Bulk Operations: Configure bulk insert settings for optimal performance
Error Handling: Implement robust error handling and retry mechanisms
Monitoring: Use SQL Server performance counters to monitor load operations
Maintenance: Schedule regular maintenance tasks like index rebuilding and statistics updates

Connection Management

Connection Limits: Monitor and manage database connection limits
Timeout Settings: Configure appropriate timeout values for large data loads
Retry Logic: Implement intelligent retry logic for transient connection failures
Health Checks: Regular connection health monitoring and validation

Data Loading Patterns

Real-time Loading

Support for continuous data streaming into MSSQL tables
Low-latency data updates for operational systems
Event-driven data loading based on source changes

Batch Loading

Scheduled batch operations during maintenance windows
High-volume data processing with optimal resource utilization
Support for complex data transformations during loading

Incremental Loading

Delta-based loading to minimize data transfer and processing
Change tracking integration for efficient incremental updates
Conflict resolution strategies for concurrent data modifications

By properly configuring your MSSQL destination connections and following these guidelines, you can ensure reliable, efficient data loading while meeting your business requirements for data timeliness, completeness, and compliance.

UnifyApps integration with Microsoft SQL Server enables you to leverage your enterprise database as a powerful destination for analytics, operational intelligence, and business process automation workflows.
