Microsoft SQL Server as Source

Microsoft SQL Server as Source

Logo

3 min READ

UnifyApps enables seamless integration with Microsoft SQL Server databases as a source for your data pipelines. This article covers essential configuration elements and best practices for connecting to MSSQL sources.

Overview

Microsoft SQL Server is widely used for enterprise applications including business intelligence, transaction processing, and analytics platforms. UnifyApps provides native connectivity to extract data from these MSSQL environments efficiently and securely.

Connection Configuration


Parameter

Description

Example

Connection Name

Descriptive identifier for your connection

"Production MSSQL CRM"

Host Address

MSSQL server hostname or IP address

"mssqldb-qa.xxxx.database.windows.net"

Port Number

Database listener port

1433 (default)

User

Database username with read permissions

"unify_reader"

Password

Authentication credentials

"********"

Database Name

Name of your MSSQL database

"CustomerDB"

Schema Name

Schema containing your source tables

"dbo" (default)

Connection Type

Method of connecting to the database

Direct or SSH Tunnel

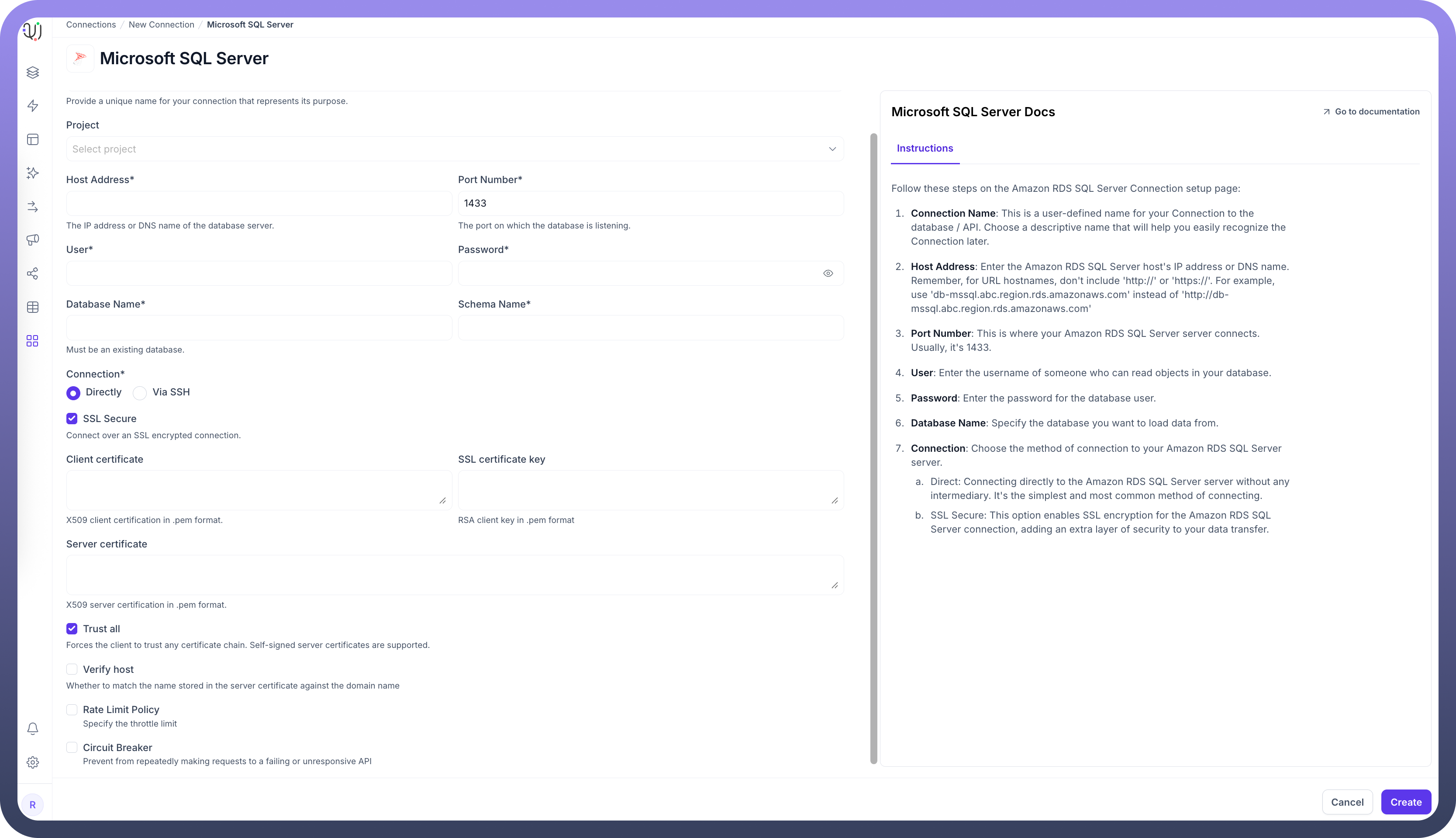

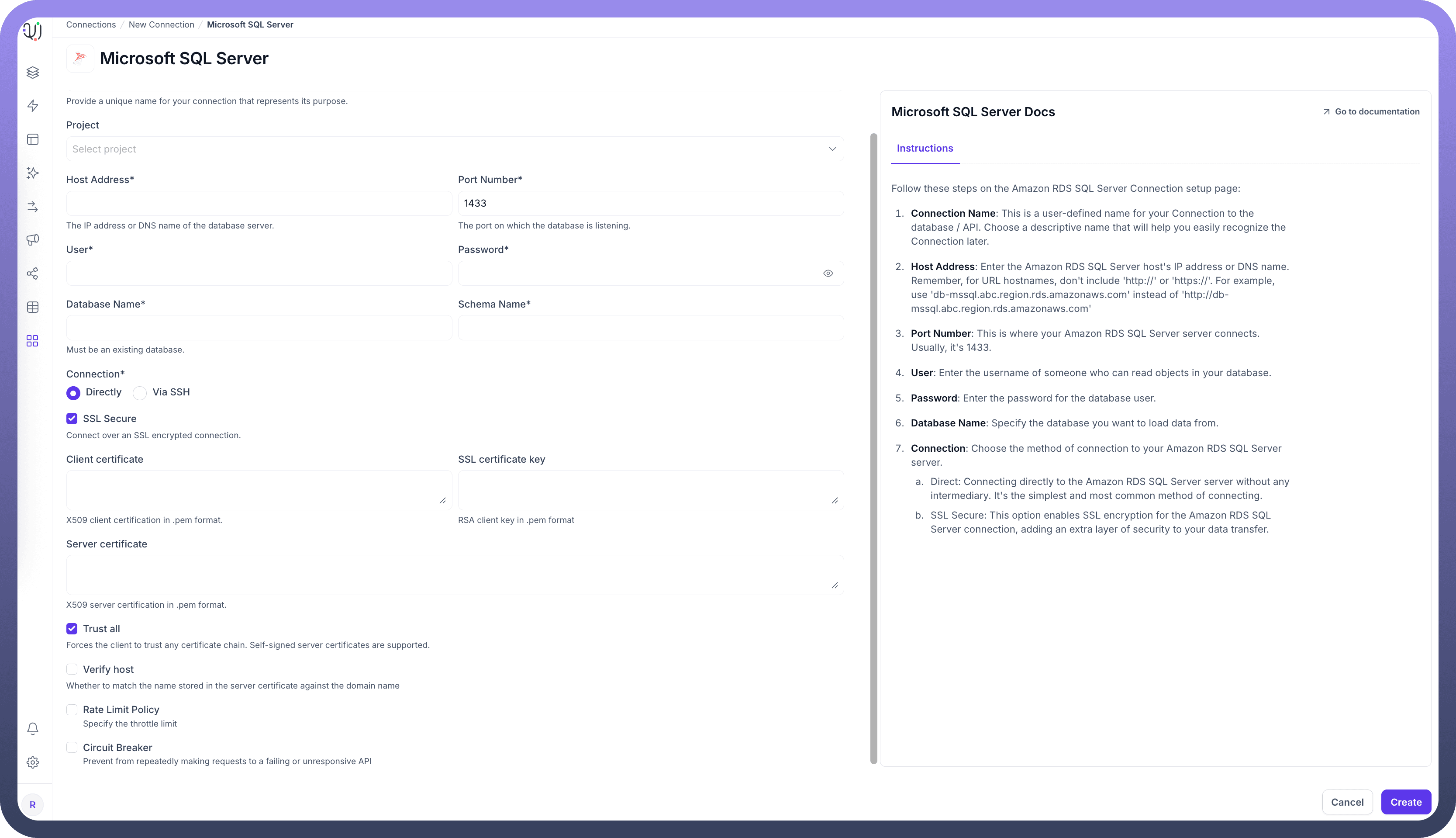

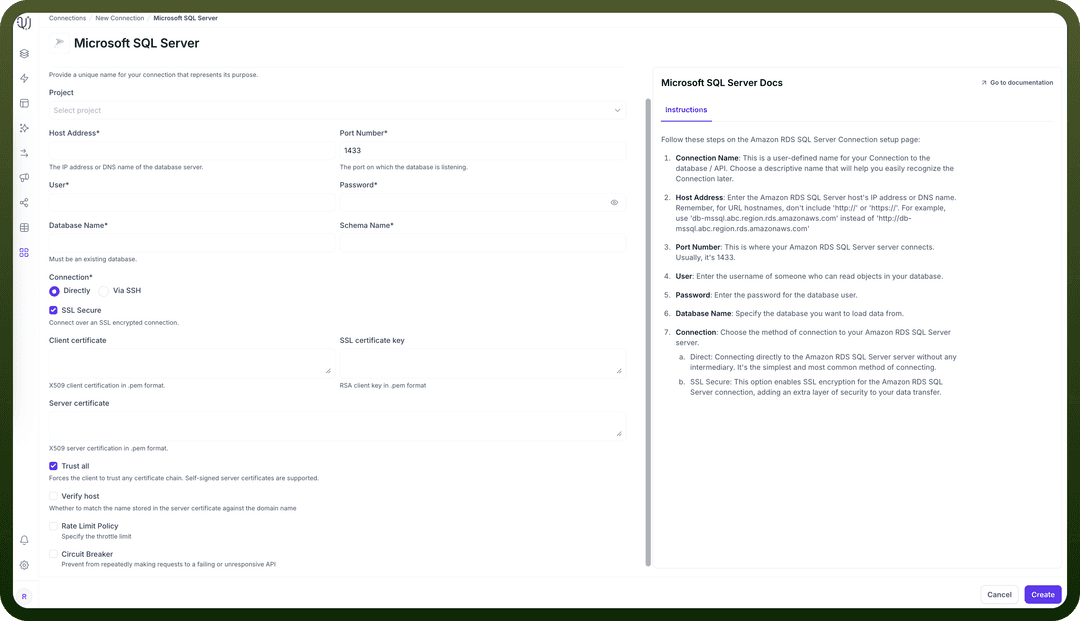

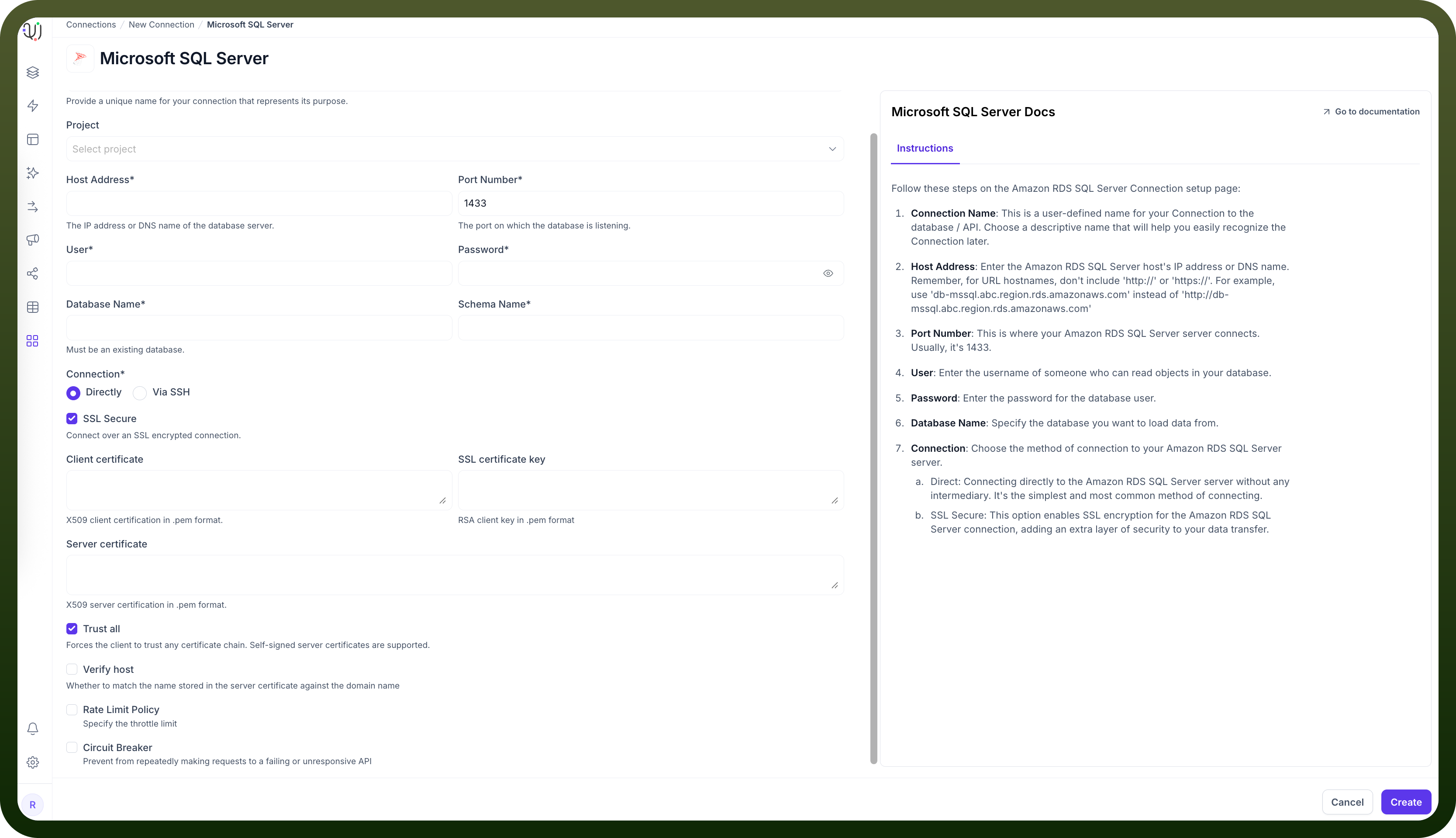

To set up a MSSQL source, navigate to the Connections section, click New Connection, and select Microsoft SQL Server. Fill in the parameters above based on your MSSQL environment details.

For SSH tunnel connections, additional parameters are required:

  • SSH Host: Hostname or IP address of the SSH server

  • SSH Port: Port for SSH connections (default 22)

  • SSH User: Username for SSH authentication

  • SSH Authentication: Password or key-based authentication

Server Timezone Configuration

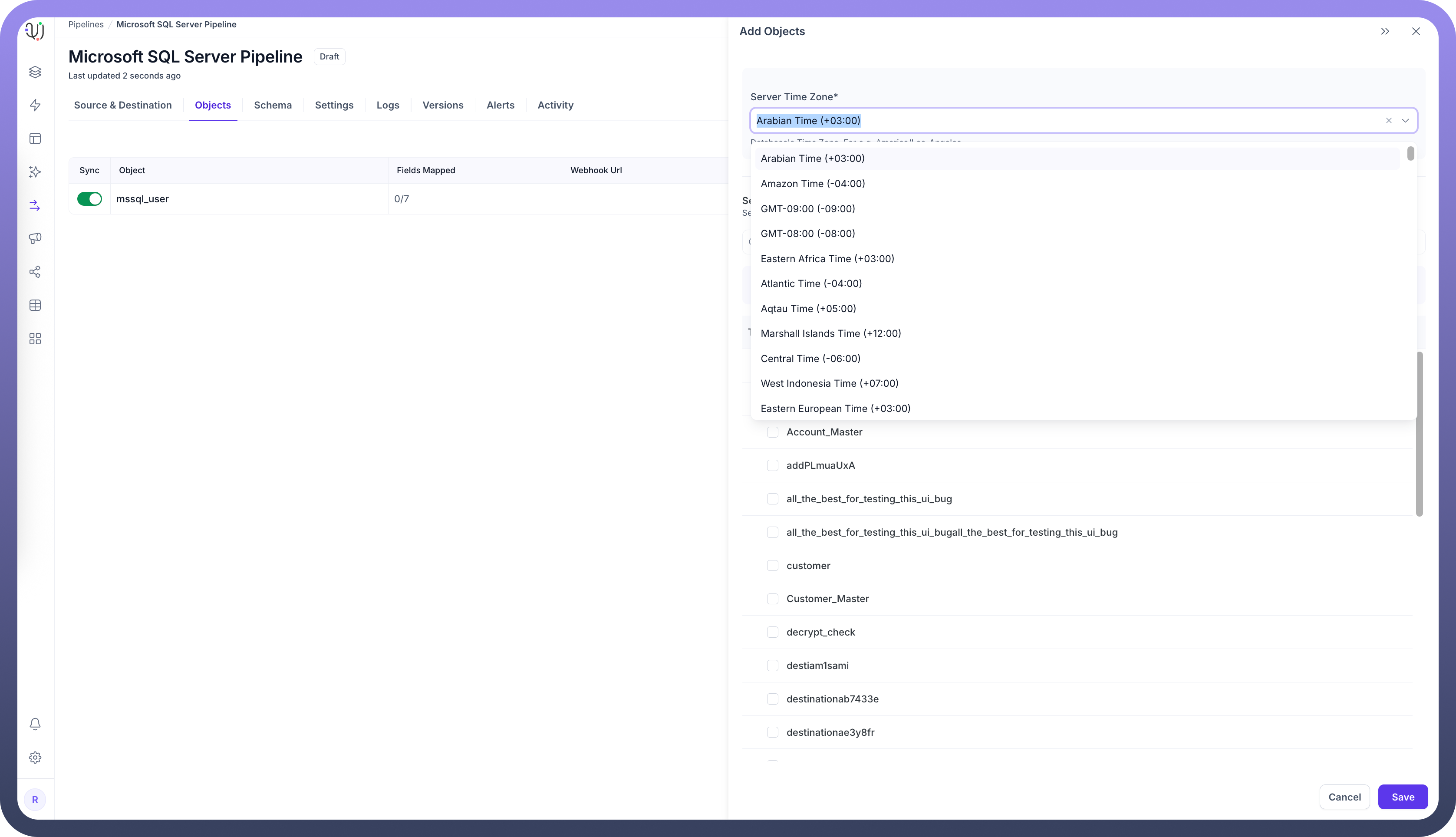

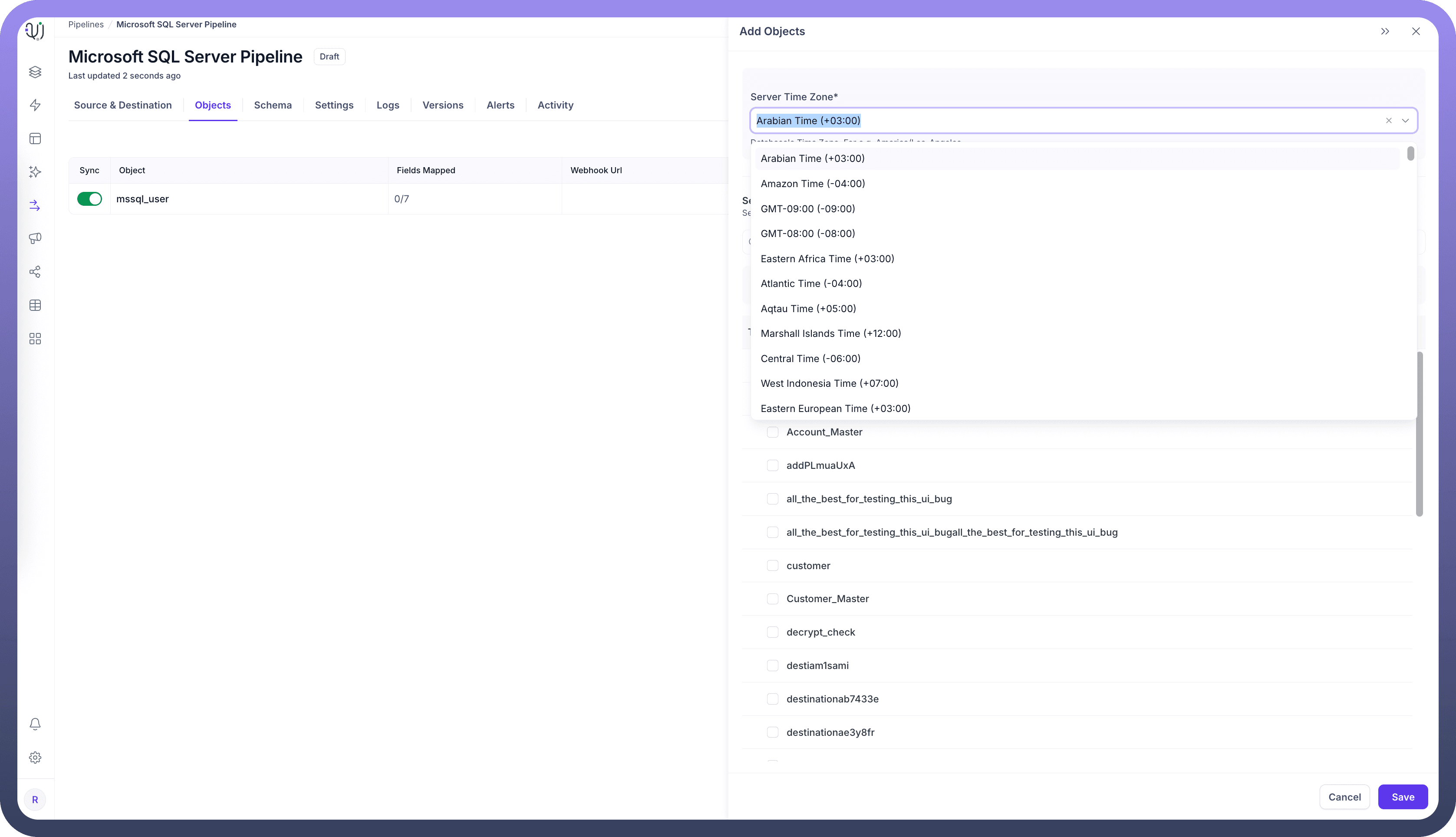

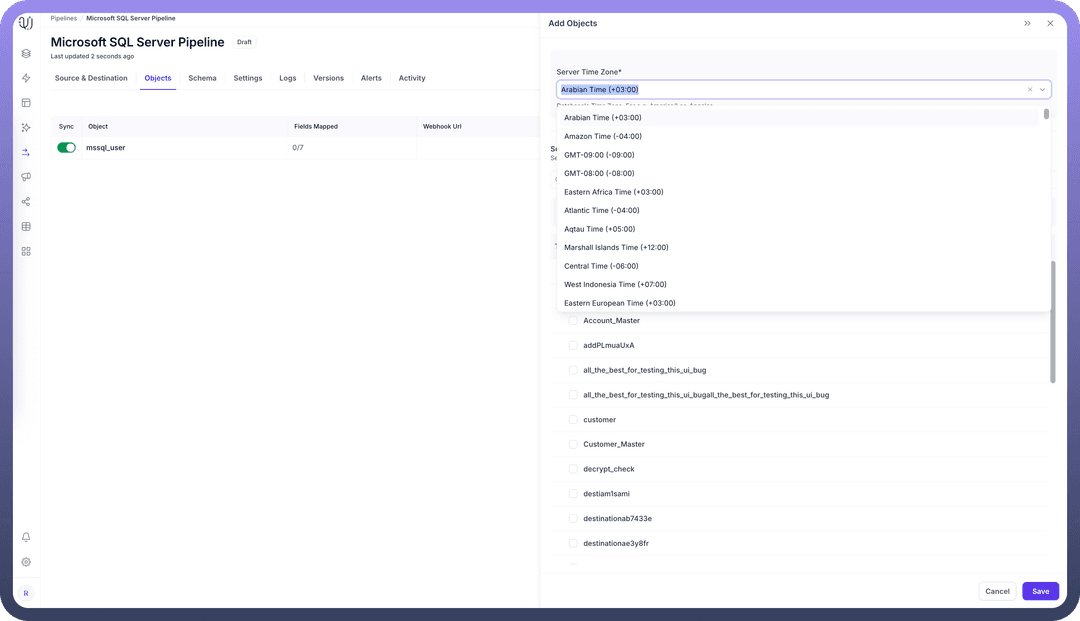

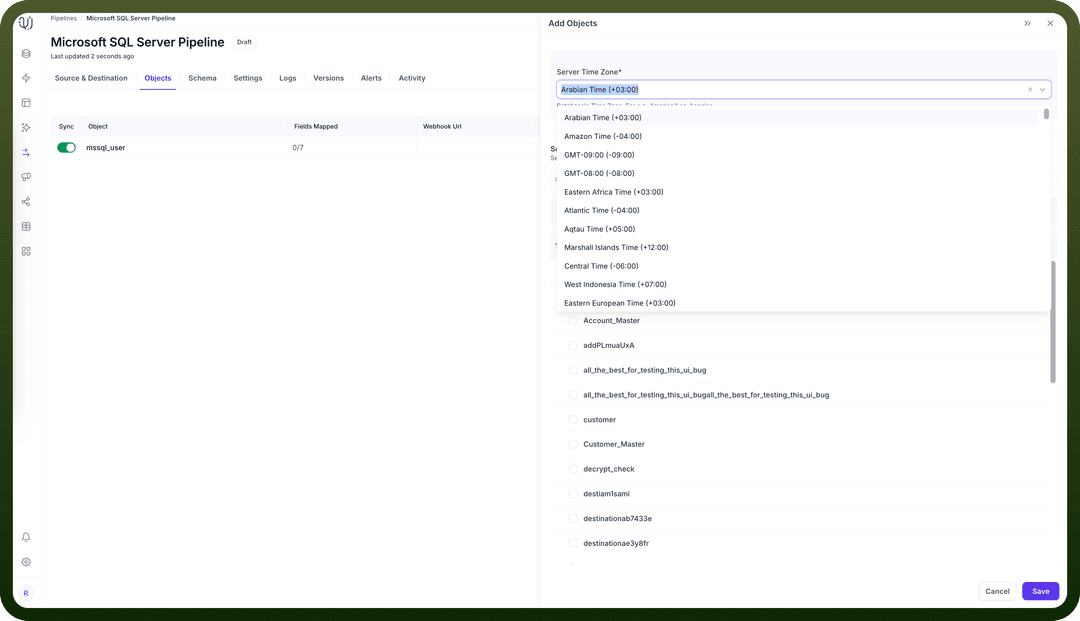

When adding objects from a MSSQL source, you'll need to specify the database server's timezone. This setting is crucial for proper handling of date and time values.

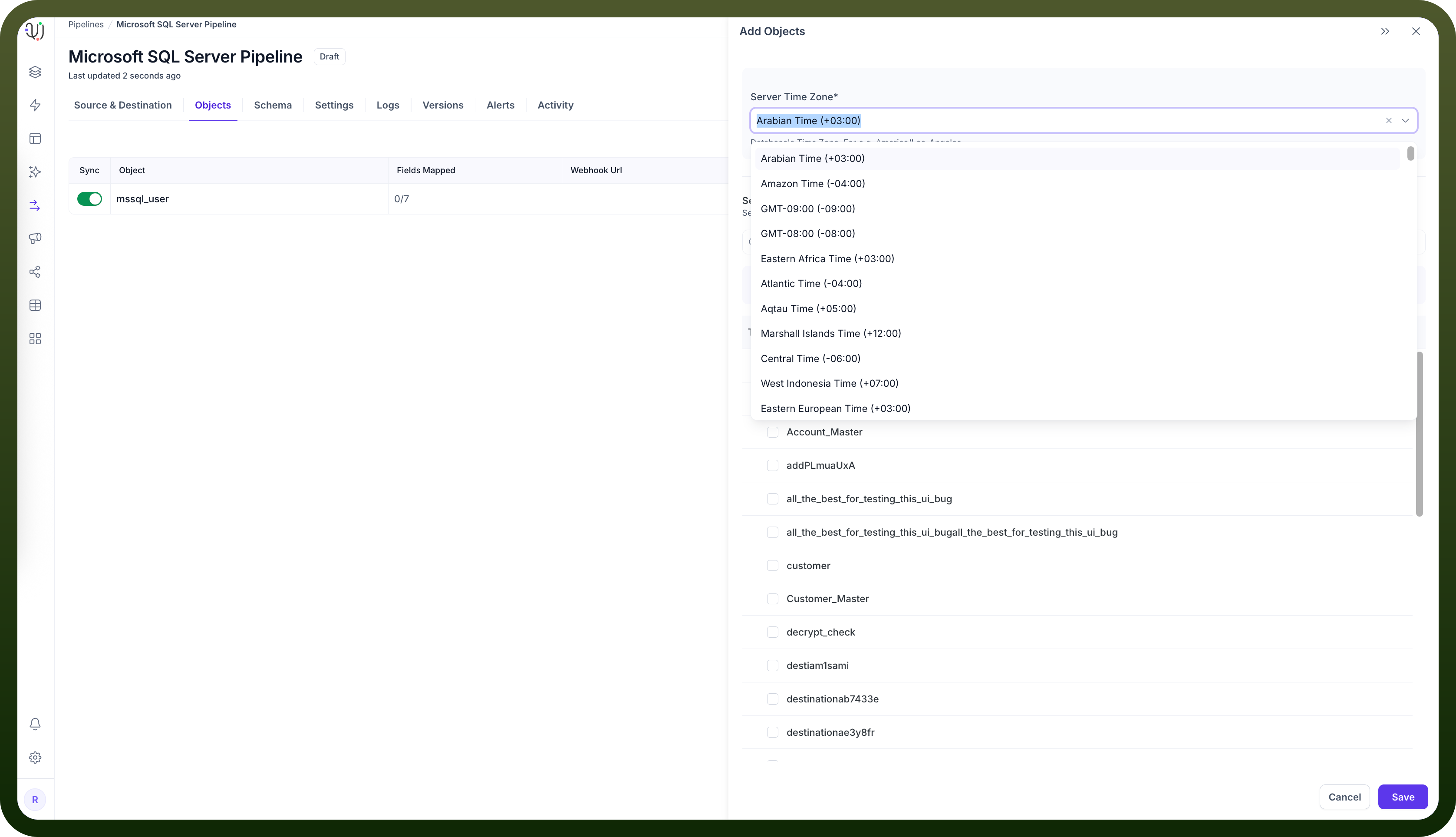

  • In the Add Objects dialog, find the Server Time Zone setting

  • Select your MSSQL server's timezone

This ensures all timestamp data is normalized to UTC during processing, maintaining consistency across your data pipeline.

Ingestion Modes

Mode

Description

Business Use Case

Historical and Live

Loads all existing data and captures ongoing changes

CRM system migration with continuous synchronization

Live Only

Captures only new data from deployment forward

Real-time sales dashboard without historical context

Historical Only

One-time load of all existing data

Financial quarter-end reporting or compliance snapshot

Choose the mode that aligns with your business requirements during pipeline configuration.

Change Data Capture (CDC) Requirements

For Historical and Live or Live Only modes that track ongoing changes, CDC must be properly configured:

  1. Database-Level Configuration:

    USE YourDatabaseName;
    GO
    EXEC sys.sp_cdc_enable_db;


  2. Table-Level Configuration:

    EXEC sys.sp_cdc_enable_table
        @source_schema = N'YourSchemaName',
        @source_name   = N'YourTableName',
        @role_name     = NULL;  -- Or specify a role, e.g., N'cdc_role'


  3. Verification queries:

    • To check database CDC status:

      SELECT
          name,
          is_cdc_enabled
      FROM
          sys.databases
      WHERE
          name = 'YourDatabaseName';


    • To check table CDC status:

      SELECT
          name,
          is_tracked_by_cdc
      FROM
          sys.tables
      WHERE
          is_tracked_by_cdc = 1;


  4. SQL Server Agent: Ensure SQL Server Agent is running as it's required for CDC operations.

CRUD Operations Tracking

All database operations from MSSQL sources are identified and logged as unique actions:

Operation

Description

Business Value

Create

New record insertions

Track new customer accounts or orders

Read

Data retrieval actions

Monitor query patterns and data access

Update

Record modifications

Audit changes to sensitive customer data

Delete

Record removals

Compliance tracking for record deletion

This comprehensive logging supports audit requirements and troubleshooting efforts.

Supported Data Types

Category

Supported Types

Integer

tinyint, smallint, int, bigint, bit

Decimal

numeric, decimal, money, smallmoney, float, real

Date/Time

date, time, datetime, datetime2, datetimeoffset, smalldatetime

String

char, varchar, text, nchar, nvarchar, ntext

Binary

binary, varbinary

Specialized

sql_variant, uniqueidentifier, rowversion

JSON

json

All common MSSQL data types are supported, including specialized types for transactional systems and modern applications.

Prerequisites and Permissions

To establish a successful MSSQL source connection, ensure:

  • Access to an active MSSQL Server instance

  • Minimum required role: "db_datareader" on the target database

  • Recommended permission: SELECT on relevant tables or views

  • Proper network connectivity and firewall rules

Common Business Scenarios

Customer Data Integration

  • Extract customer records from MSSQL CRM databases

  • Ensure proper handling of nullable fields and relationships

  • Map customer hierarchies and related entities

Financial Reporting

  • Connect to MSSQL financial systems to extract transaction data

  • Configure date/time handling for fiscal period accuracy

  • Implement data quality checks for financial integrity

Product Inventory Management

  • Extract product catalog and inventory levels from MSSQL

  • Set up incremental sync for high-volume inventory changes

  • Ensure proper handling of product hierarchies and attributes

Best Practices

Category

Recommendations

Performance

Extract only necessary columns to minimize network load Use WHERE clauses to filter large tables Schedule bulk operations during off-hours

Security

Create read-only MSSQL users with minimum permissions Use SSH tunneling for databases in protected networks Secure credentials using enterprise password policies

Data Governance

Document source-to-target mappings Maintain data lineage for compliance reporting Set up alerts for pipeline failures

Optimization

Index frequently queried columns in source tables Properly configure CDC retention Use partitioned tables for very large datasets

By properly configuring your MSSQL source connections and following these guidelines, you can ensure reliable, efficient data extraction while meeting your business requirements for data timeliness, completeness, and compliance.
