Does caching happen on the gateway or on the backend service?

Caching is managed by the API gateway. On a cache hit, the backend is not invoked at all — the gateway returns the stored response directly to the client.

What is the maximum TTL I can configure?

The maximum allowed TTL is 3600 seconds (1 hour). For data that changes more frequently, use a shorter TTL to balance freshness with performance.

How do I ensure different users receive different cached responses?

Include a caller-identifying attribute (such as an API key or a user-identifying header) in the Cache Key. This ensures each user's responses are cached and served separately

What happens when the cache expires?

After the TTL expires, the cached entry is cleared. The next request for that cache key is a cache miss — it is forwarded to the backend, and the fresh response is cached again.

Cache Policy- UnifyApps

Store API responses temporarily so repeated requests are served from cache, reducing backend load and improving response times.

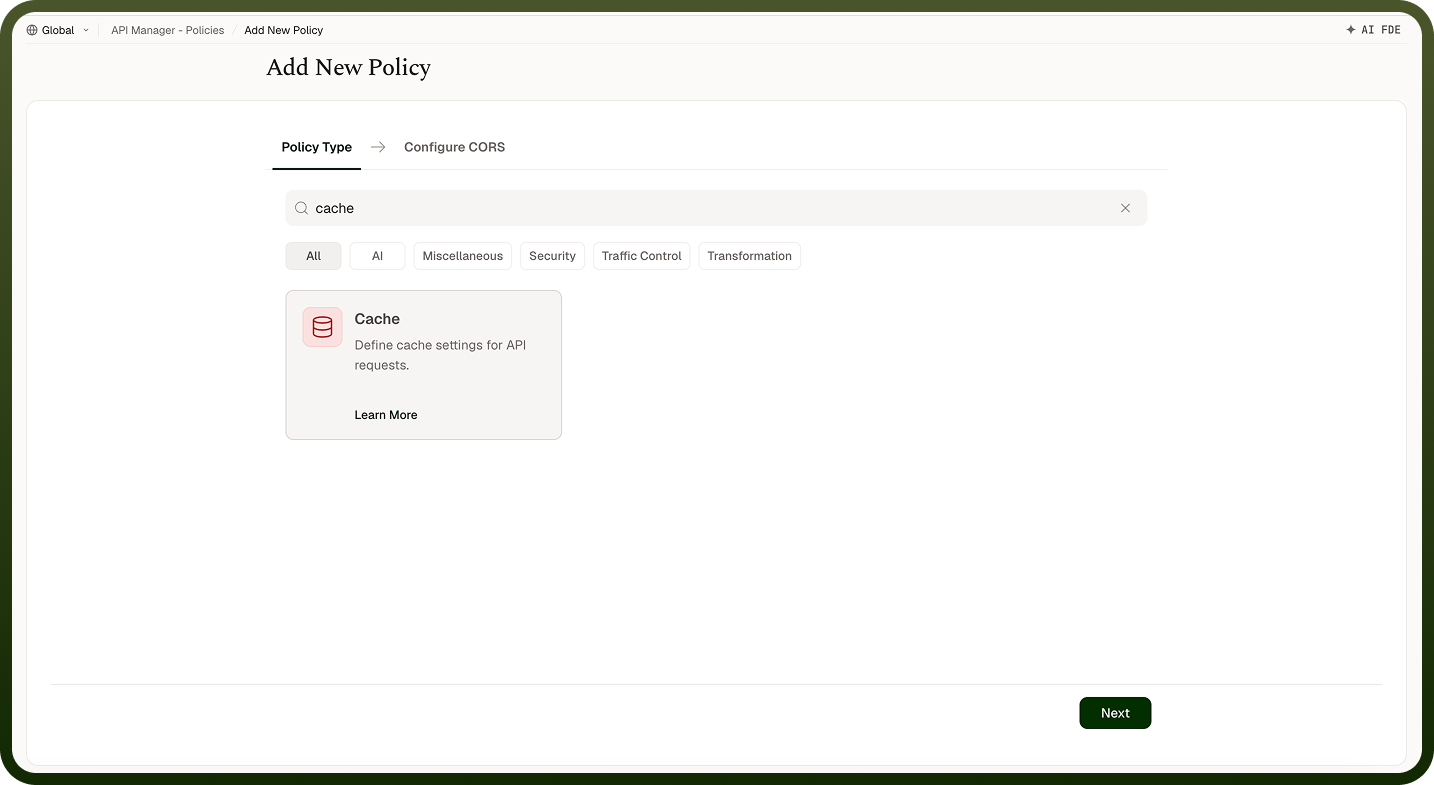

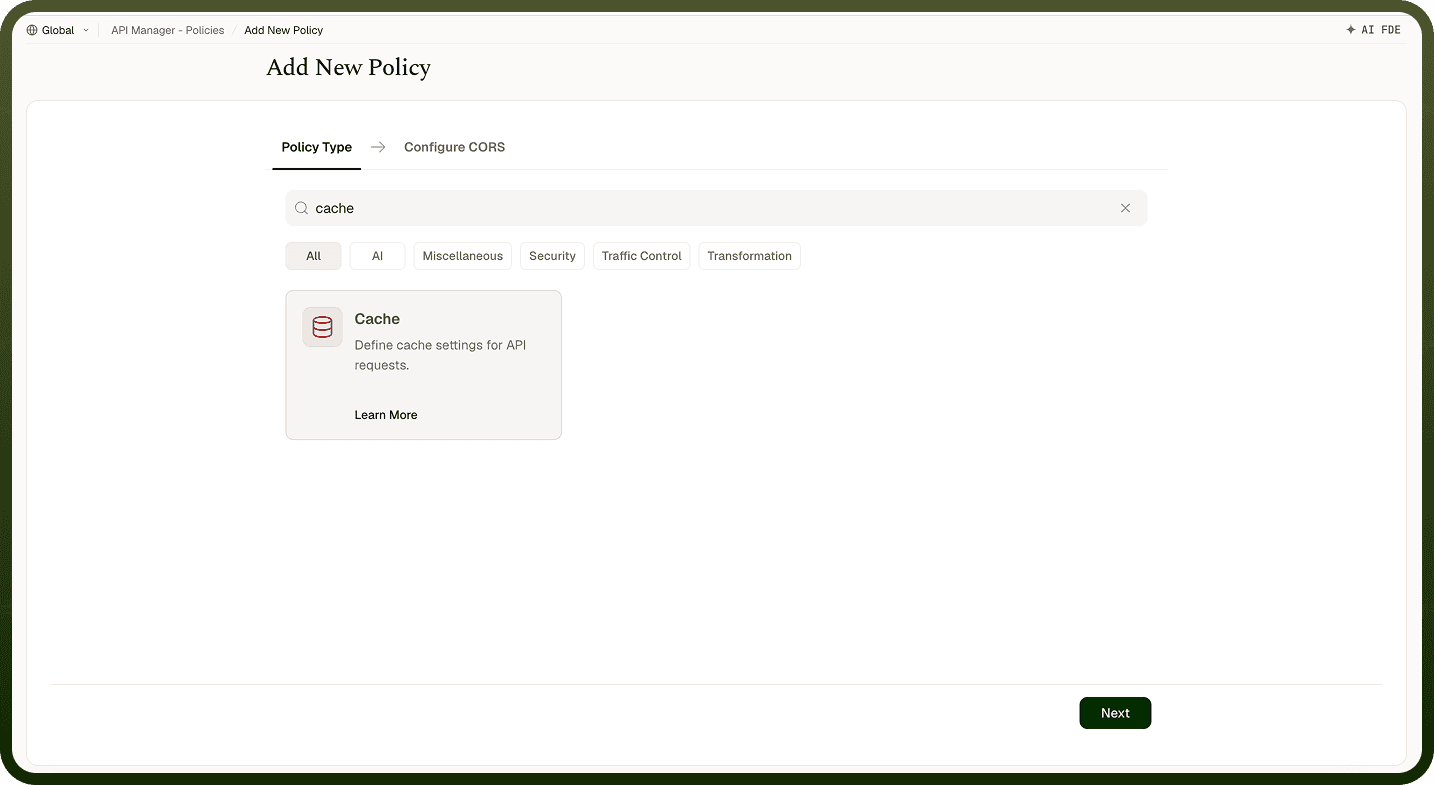

Overview

A Cache Policy stores API responses temporarily so that repeated requests can be served from cache rather than invoking the backend — improving response times, reducing backend load, and lowering infrastructure costs. Each cached response is stored for a fixed Time-to-Live (TTL); after the TTL expires, the next request fetches a fresh response and repopulates the cache.

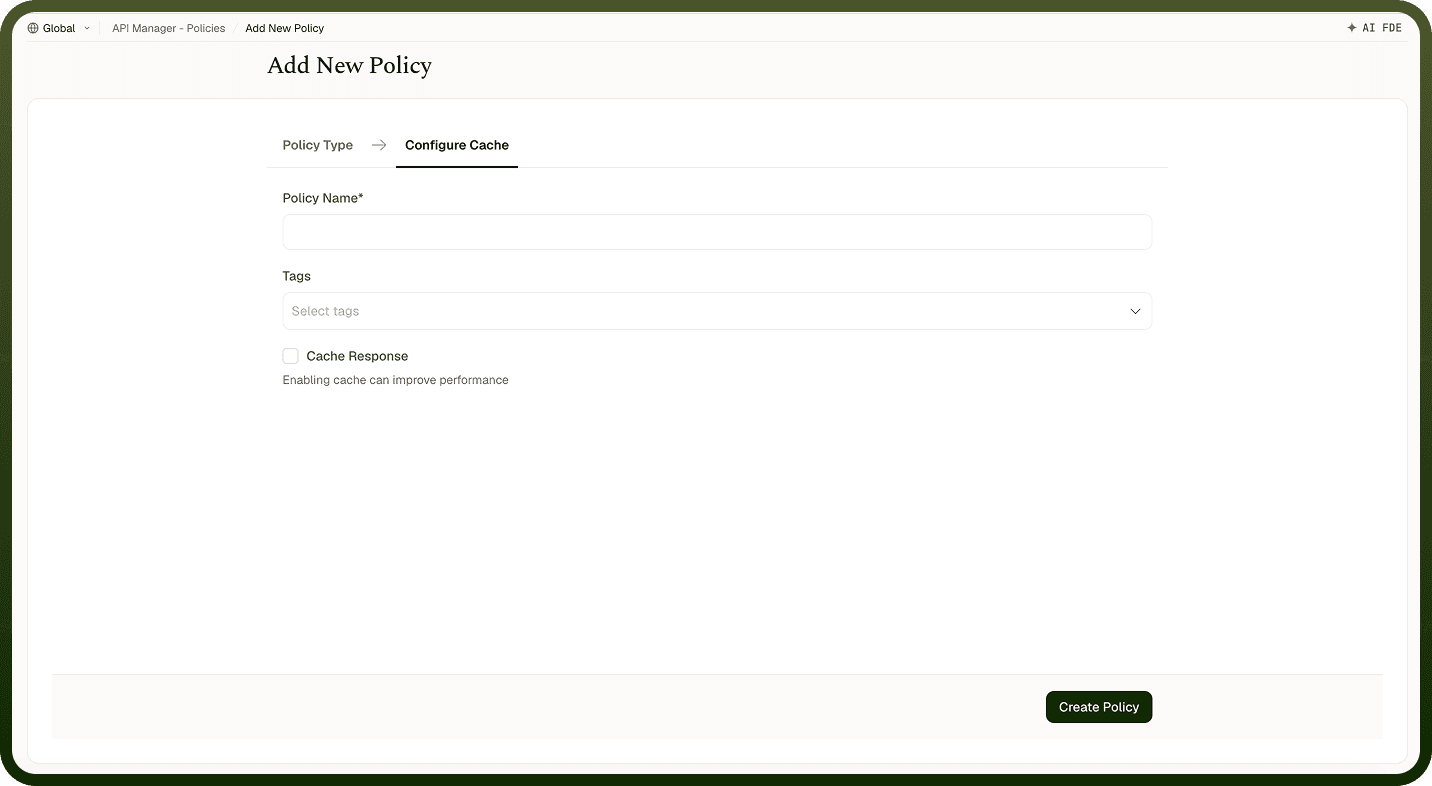

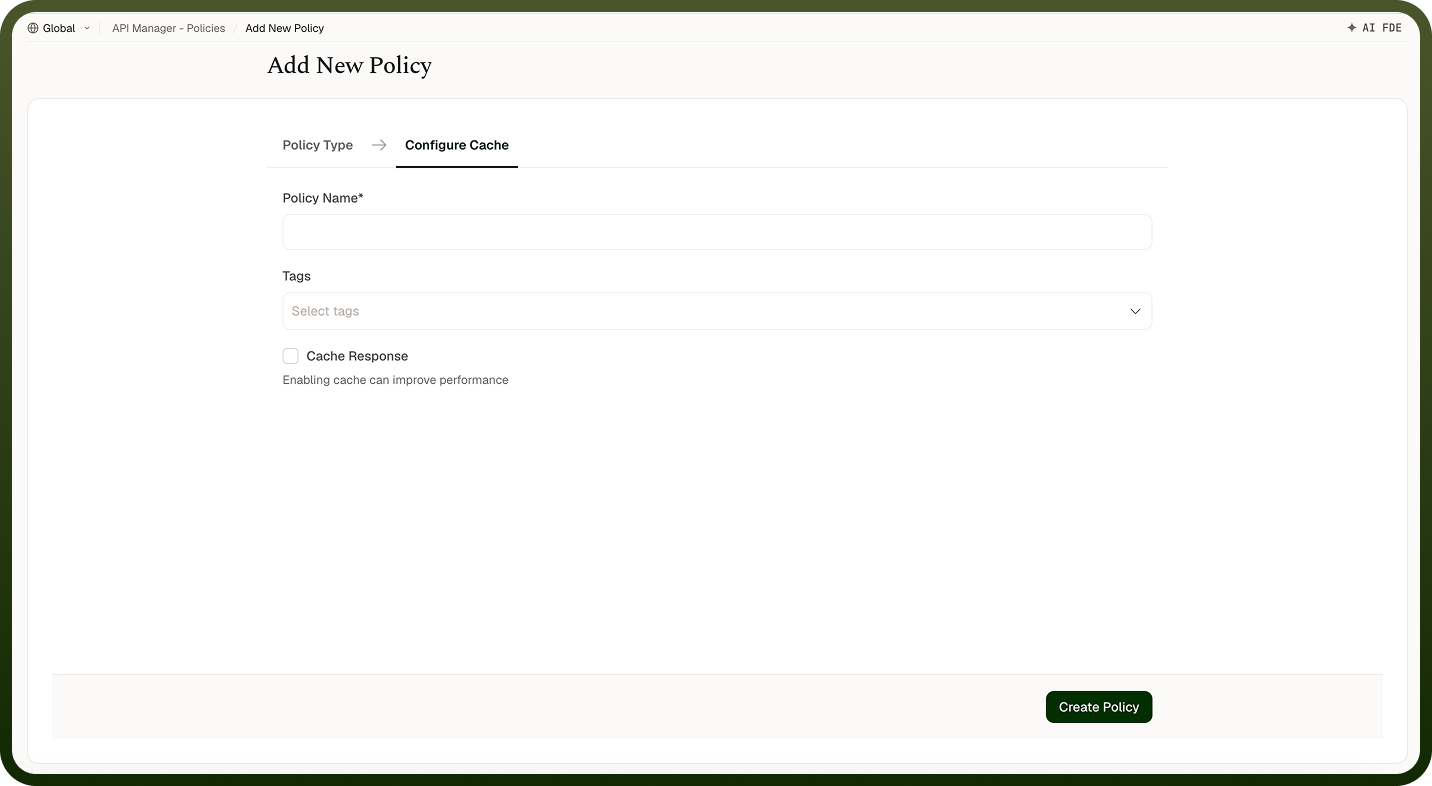

Field Reference

Field	Description
Policy Name *	A unique identifier used across logs, dashboards, and API group configurations.
Tags	Custom labels to organize and filter the policy by environment, team, or functionality.
Cache Response *	Enables or disables caching of API responses. Enabled by default when configuring a Cache Policy.
Time-to-Live (TTL) Period *	How long a cached response is stored before it expires. Defined in the unit specified by the Time Interval field. Maximum allowed value: 3600 seconds.
Time Interval *	The unit of time for the TTL Period field. Options: Seconds, Minutes, Hours.
Cache Key *	The unique key used to identify cached responses. Configuring multiple cache keys (e.g., query parameters, headers, request attributes) ensures distinct responses are cached separately.

How It Works

Request arrives — The gateway receives an API request.
Cache key generation — A cache key is constructed from the configured key parameters.
Cache lookup — The system checks whether a cached response exists for that key.
Cache hit — If a cached response is found, it is returned immediately to the client. The backend is not called.
Cache miss — If no cached response exists, the request is forwarded to the backend. The backend response is stored in the cache before being returned to the client.
Cache expiration — After the TTL expires, the cached entry is removed. The next request will be a cache miss and repopulate the cache.

Attaching to an API Group

Once a Cache Policy is created, attach it to one or more API Groups from the group's policy settings. Multiple policies can be applied to a single group; drag them into the desired execution order.

Notes

Only cache idempotent responses — GET responses with stable, query-dependent data are good candidates; POST or mutation responses should not be cached.
Design cache keys carefully: if two different requests should return different data, their cache keys must differ. Include query parameters or caller-identifying headers in the key as appropriate.
Set TTL based on how frequently the underlying data changes — too long a TTL returns stale data; too short negates the caching benefit.
Monitor cache hit rate from the API Manager Insights dashboard to evaluate policy effectiveness and tune the TTL and cache key configuration.
