Can I change the authentication method on an existing access profile?

Yes — update the access profile's authentication method at any time. The change takes effect on the next request. The existing credential is invalidated and a new one is generated for the new method, so coordinate the switch with the consuming application to avoid a 401 gap.

What is the difference between JWT authentication and the JWT validation policy?

JWT authentication (on the access profile) validates the credential that identifies the caller and resolves it to a client — it runs first, before routing or policies. The JWT validation policy is an inbound policy that can verify an additional JWT present in the request body or headers, after the caller is already authenticated. Use the policy when you need to validate a token from a different issuer or in a different context than the access credential.

What does 401 vs 403 mean in the context of authentication?

A 401 Unauthorized means the credential was missing, wrong, expired, or belonged to a disabled access profile — authentication failed. A 403 Forbidden means authentication passed but the caller is not allowed to call this endpoint — for example, the endpoint is inactive or the access profile does not include the collection.

Authentication Methods- UnifyApps

Authentication Methods determine how a client proves its identity on every request to your managed APIs. Each access profile uses exactly one method, chosen from the Authentication Method dropdown on the Authentication Details step of the Create Access Profile wizard.

Overview

Before any routing, authorisation, or policy enforcement runs, the platform validates the caller's credentials. The method chosen on the access profile controls what the client must send and how the platform verifies it. A missing, wrong, or expired credential always results in 401 Unauthorized. Pick the method that matches how the consuming application is built and how strong a security guarantee you need.

Nine methods are available. Some need no configuration at all; others expose their own set of inputs once selected — the dropdown's helper text notes that "some authentication methods require additional inputs to complete setup".

Method	Credential the client sends	Configuration required
JSON Web Token	Signed JWT	Signing algorithm + key, claims to enforce
Auth Token	Platform-issued token	Token keys, delivery location, prefix
Custom Token	Token you supply	Token keys, delivery location, valid token values
OAuth 2.0	OAuth 2.0 access token	Grant type, refresh interval, response key
Basic Auth	Username + password	Username, password
External Authentication	Credential validated by an external provider	Provider type and its endpoints/credentials
No Auth	Nothing	None
User Session	Existing platform session	None
Custom Workflow	Whatever your workflow validates	Workflow ID

Policies apply to every method. Below the authentication fields, each access profile has a Policies section — these policies govern access to the API groups included in the profile, and are configured independently of which authentication method you pick.

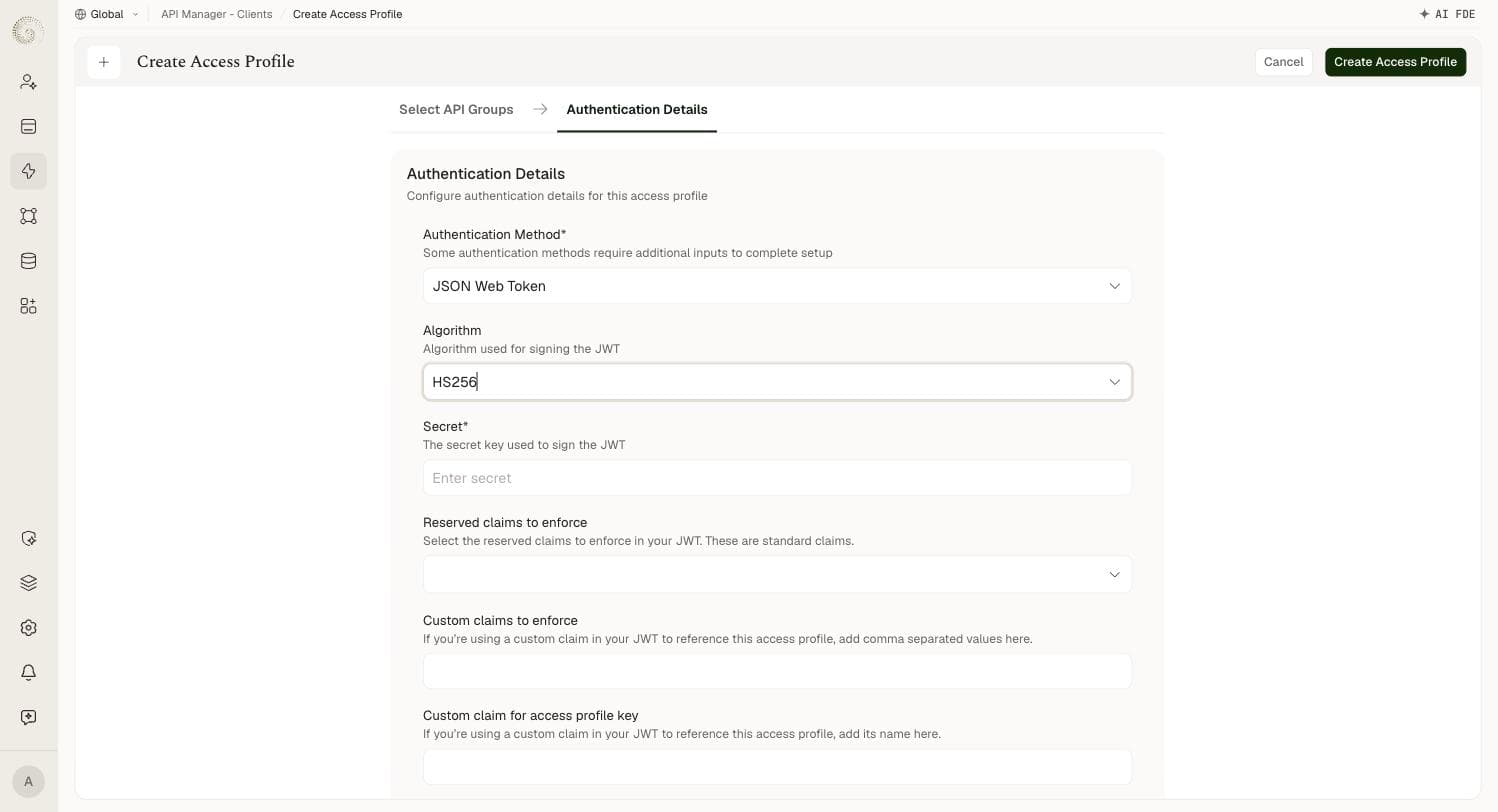

JSON Web Token

The default method. The client sends a signed JWT in the Authorization: Bearer … header, and the platform verifies the token's signature and the claims you configure.

Field	Required	Details
Algorithm	—	Algorithm used for signing the JWT. One of HS256, HS384, HS512, RS256, RS384, RS512. Defaults to RS256.
Secret	Yes (HS only)	Shown when an HS* algorithm is selected. The secret key used to sign the JWT.
RSA Public Key	Yes (RS only)	Shown when an RS* algorithm is selected. Must be a Privacy Enhanced Mail (PEM) file encoded using PKCS1 or PKCS8.
Reserved claims to enforce	No	Multi-select of standard claims to enforce: aud, exp, nbf, iat, jti, sub, iss.
Custom claims to enforce	No	Comma-separated list of additional claims that must be present in the JWT.
Custom claim for access profile key	No	The name of the custom claim used in your JWT to reference this access profile.

Which key field appears depends entirely on the algorithm family: HS* is symmetric and asks for a shared Secret; RS* is asymmetric and asks for an RSA Public Key, so the platform can verify tokens without ever holding the signing key. A token with a bad signature, expired or not-yet-valid time, wrong issuer or audience, or missing required claims is rejected with 401.

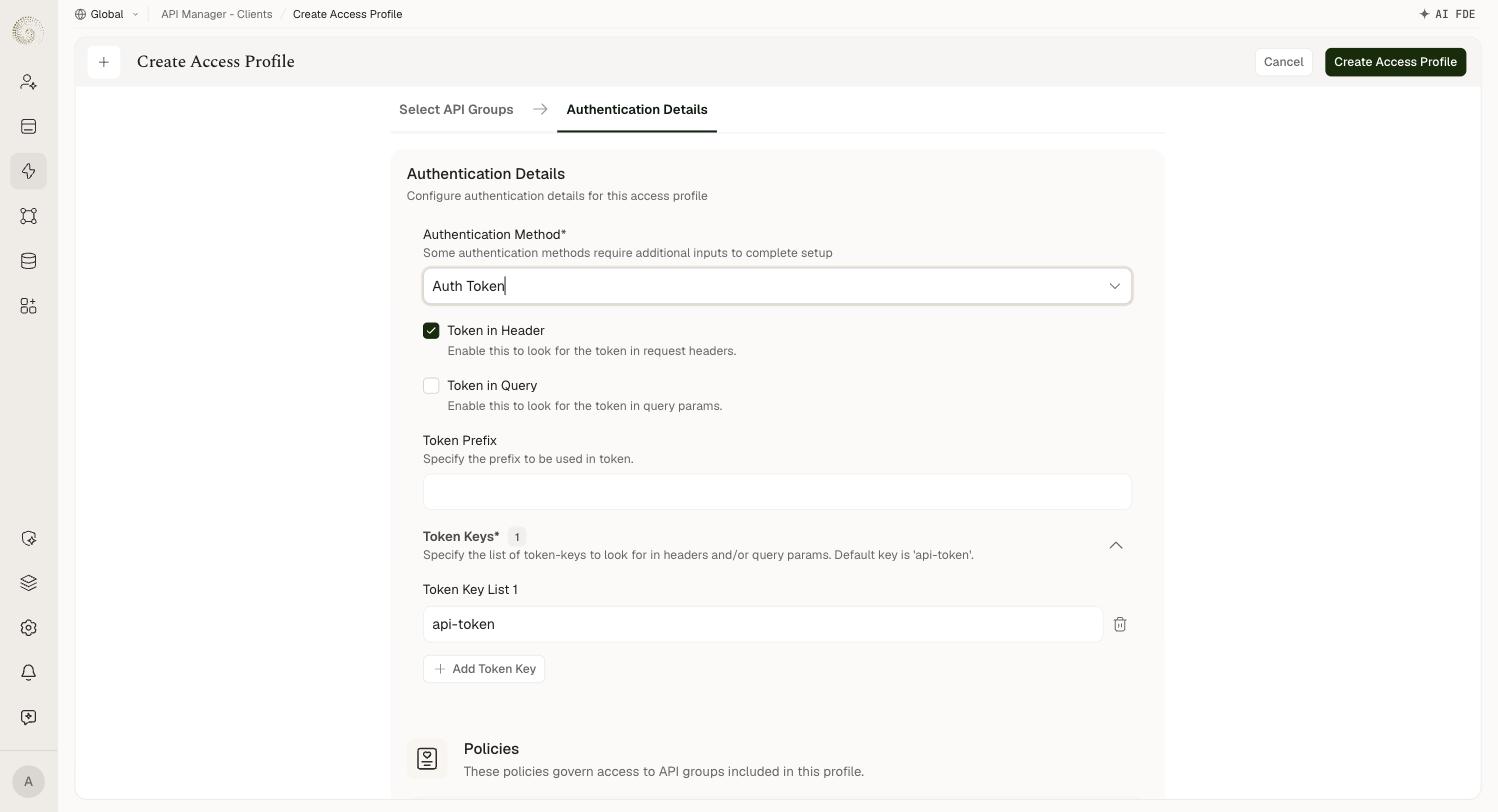

Auth Token

The access profile is issued a token (an API key) that the client sends with every request. The platform looks up the access profile by the token value; if it matches an active profile, the request is authenticated.

Field	Required	Details
Token in Header	—	Look for the token in request headers. Enabled by default.
Token in Query	—	Look for the token in query params. Disabled by default. Both can be enabled at once.
Token Prefix	No	A fixed prefix to be used in the token.
Token Keys	Yes	The list of token-keys to look for in headers and/or query params. Defaults to a single key, api-token. Use Add Token Key to accept more than one key name.

Auth Token is the simplest method and a good fit for server-to-server integrations. Because the token is a long-lived secret, keep it secure and rotate it if it is ever exposed.

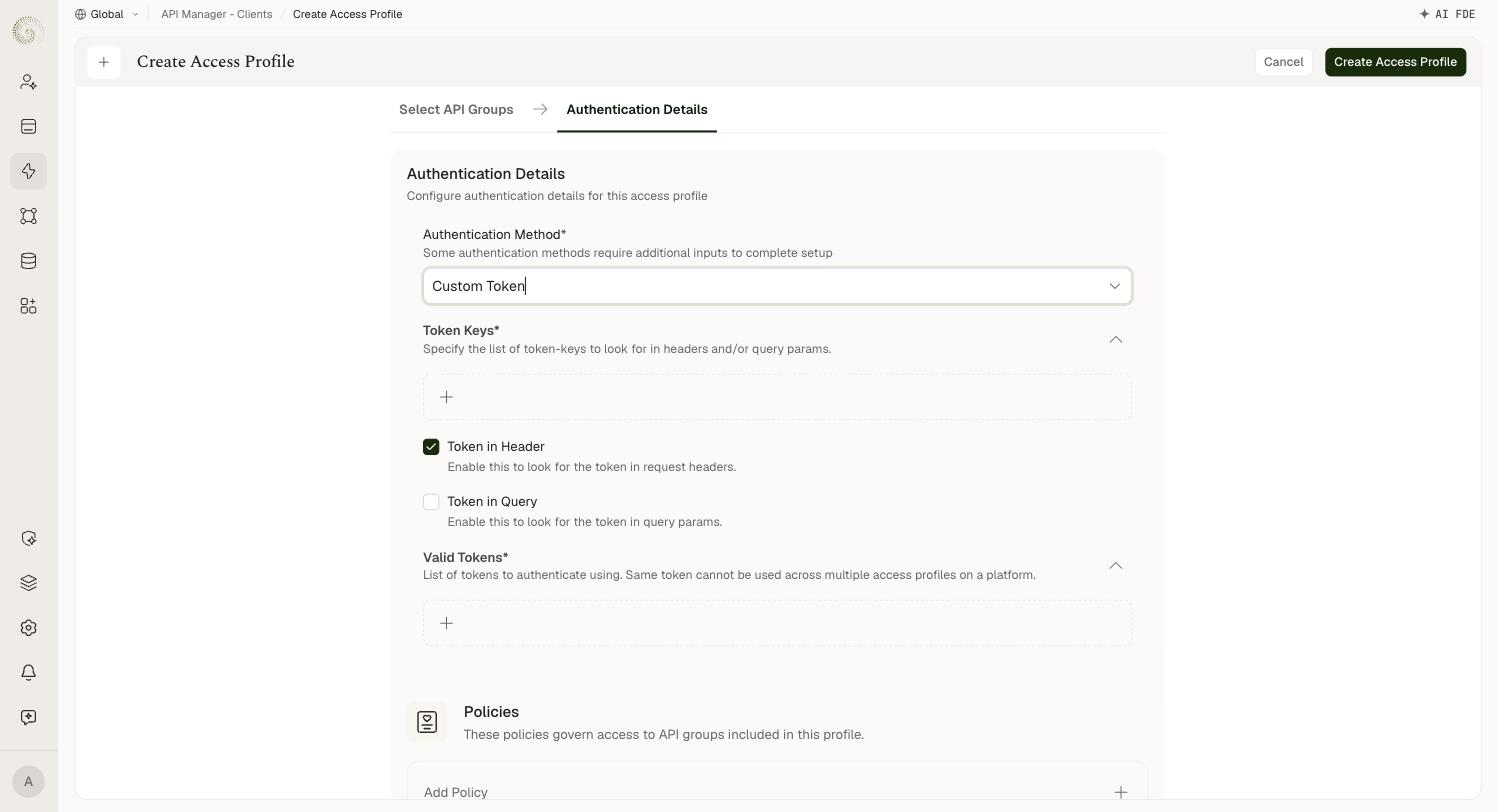

Custom Token

Like Auth Token, but you supply the token values yourself instead of having the platform issue one. Useful when consumers already hold a credential you want to keep using.

Field	Required	Details
Token Keys	Yes	The list of token-keys to look for in headers and/or query params. No default key — you add every key name yourself.
Token in Header	—	Look for the token in request headers. Enabled by default.
Token in Query	—	Look for the token in query params. Disabled by default.
Valid Tokens	Yes	The list of token values to authenticate against.

Tokens are unique per platform. The same token value cannot be used across multiple access profiles on a platform — each value must belong to exactly one profile.

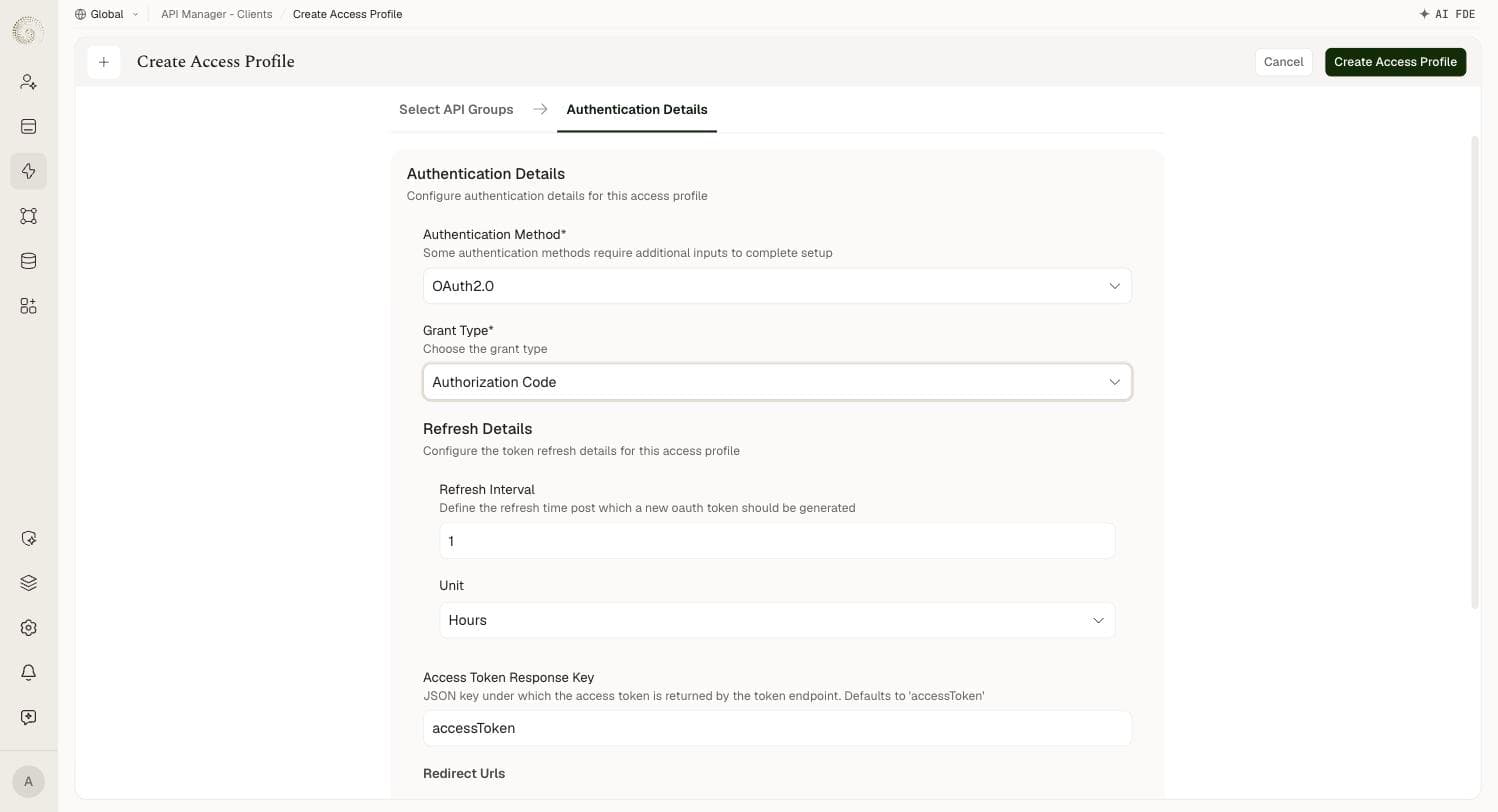

OAuth2.0

The platform issues and refreshes OAuth 2.0 access tokens for the profile.

Field	Required	Details
Grant Type	Yes	One of Client Credentials (default), Authorization Code, or Resource Owner Password Credentials.
Refresh Interval	No	The refresh time after which a new OAuth token is generated. Defaults to 1.
Unit	No	Unit for the refresh interval — Minutes or Hours. Defaults to Hours.
Access Token Response Key	No	The JSON key under which the access token is returned by the token endpoint. Defaults to accessToken.
Redirect Urls	No	Only shown for the Authorization Code grant type. The list of permitted redirect URLs.

Choosing Authorization Code is the only grant type that changes the form — it adds the Redirect Urls list. Client Credentials and Resource Owner Password Credentials share the same field set.

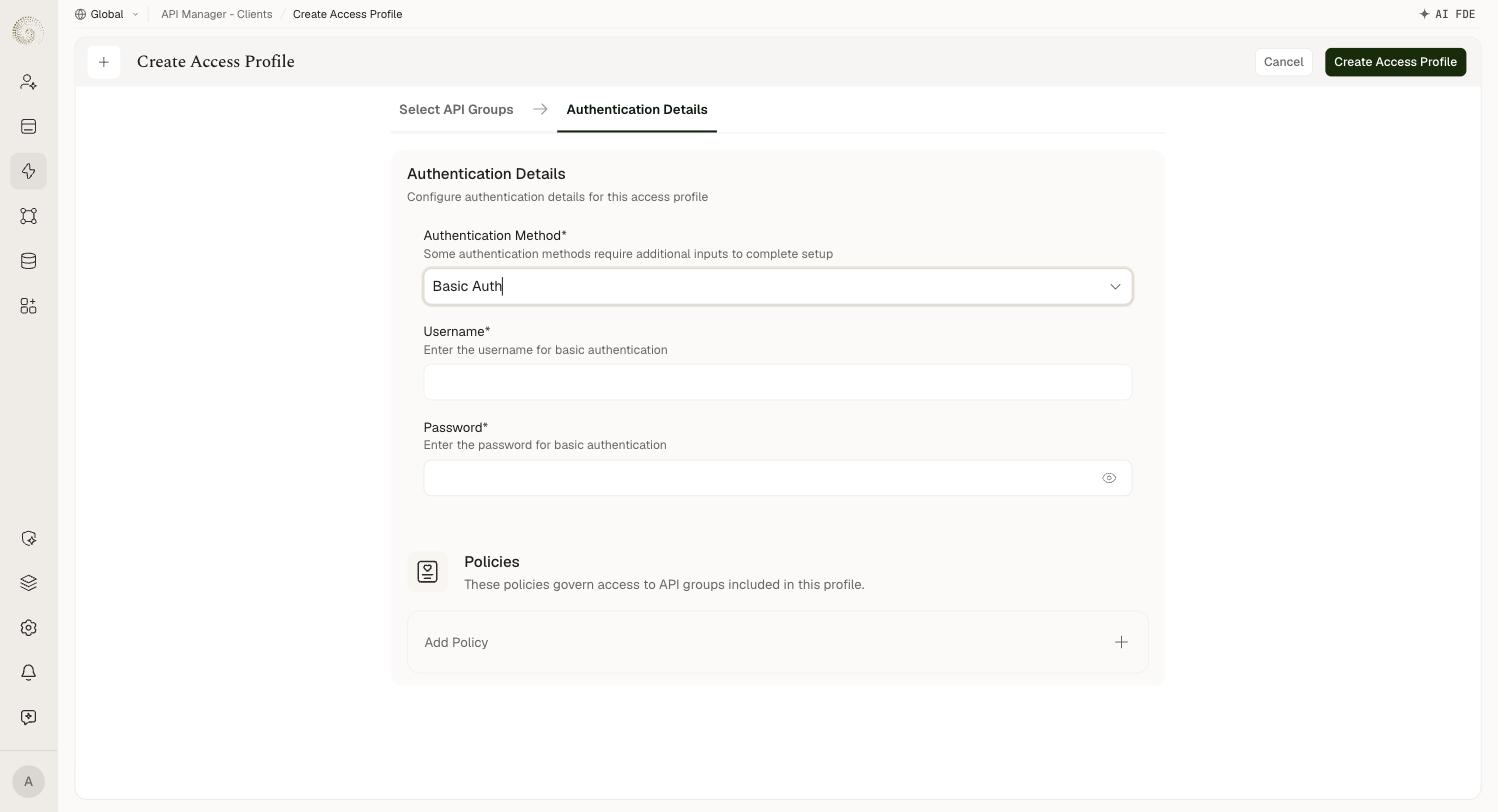

Basic Auth

The access profile carries a username and password, and the client sends them in the standard Authorization: Basic … header (username and password joined with a colon, then base64-encoded). The platform compares the supplied credentials against the profile's stored values.

Field	Required	Details
Username	Yes	The username for basic authentication.
Password	Yes	The password for basic authentication. Masked in the UI, with a reveal toggle.

Basic Auth is widely supported by HTTP clients and easy to set up, but credentials are sent on every request, so it must only be used over HTTPS. Choose it when the consuming application expects classic username/password authentication.

External Authentication

The platform delegates credential validation to an external identity provider instead of managing the credential itself. Pick an Authentication Type — the rest of the form changes to match.

Okta

Field	Required	Details
Domain	Yes	The domain of Okta authorization.
Grant Type	Yes	The grant type. Defaults to Authorization Code.
Client ID	Yes	The client ID.
Client Secret	Yes	The client secret. Masked, with a reveal toggle.
Scopes	No	The scopes to request.

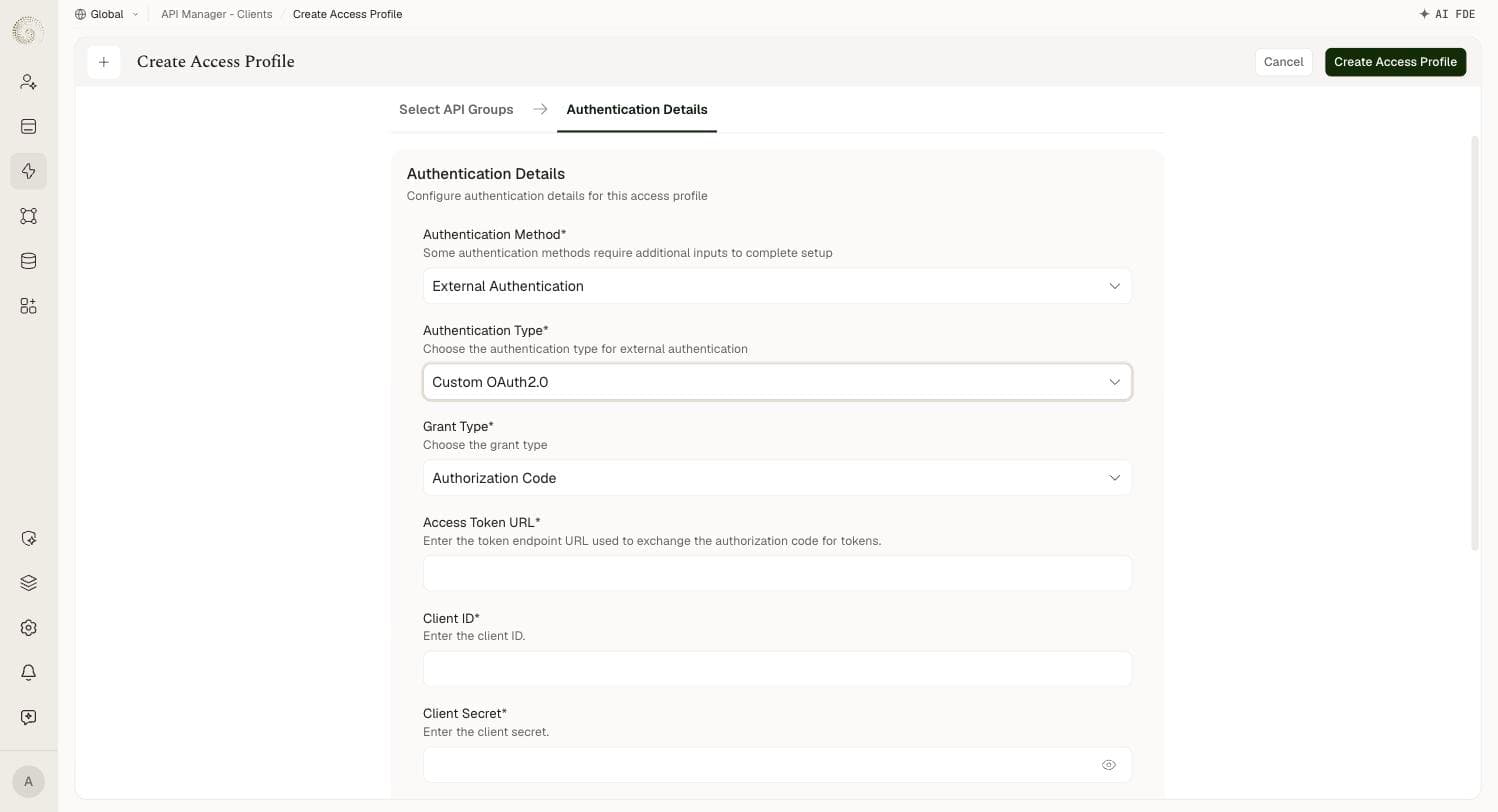

Open ID & Custom OAuth2.0

These two types share an identical field set. Use Open ID for an OpenID Connect-compatible provider, and Custom OAuth2.0 for any other OAuth 2.0-compatible provider.

Field	Required	Details
Grant Type	Yes	The grant type. Defaults to Authorization Code.
Access Token URL	Yes	The token endpoint URL used to exchange the authorization code for tokens.
Client ID	Yes	The client ID.
Client Secret	Yes	The client secret. Masked, with a reveal toggle.
Scopes	No	The scopes to request.
Authorization URL	Yes	The authorization URL used to initiate the user login.

Custom Auth

The most flexible type, and the default selection. The platform calls an arbitrary HTTP endpoint of yours to validate the caller, then reads the result out of the response.

Field	Required	Details
Authentication URL	Yes	The URL for external authentication.
Authentication HTTP Method	Yes	GET (default) or POST.
Duration	No	Timeout for the external call. Defaults to 5000.
Unit	No	Unit for the duration. Defaults to Milliseconds.
Headers	No	Key/value pairs — the headers required to authorize the external URL.
Upstream Headers	No	The header keys required from upstream, i.e. taken off the incoming request and forwarded to your endpoint.
Query Params	No	Key/value pairs — the query params required to authorize the external URL.
Upstream Query Params	No	The query param keys required from upstream.
Response Parameter	Yes	The path to the value to fetch from the external authorization response — for example body.token or header.token.

The distinction between Headers and Upstream Headers matters: the former are static values you configure once and the platform always sends; the latter are keys lifted from the caller's own request and passed through. The same split applies to query params.

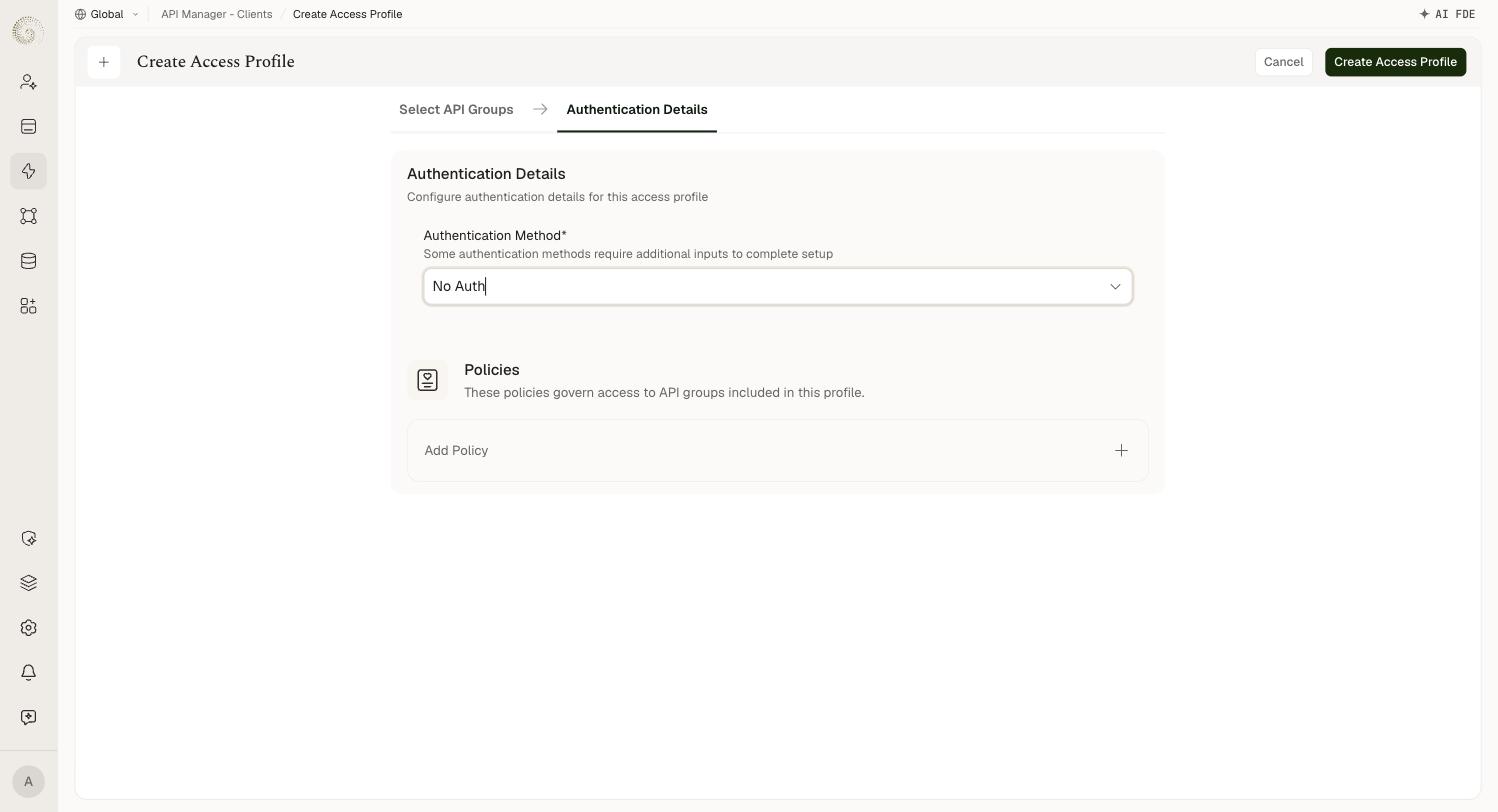

No Auth

The access profile requires no credentials — all requests reaching the endpoint are accepted without any authentication check. Selecting it clears the form entirely; there is nothing to configure.

Use this only for endpoints that are intentionally public, such as health-check endpoints or public data feeds where caller identity does not matter. Apply collection-level policies such as IP-based access control to restrict traffic even when no credential is required.

User Session

Authentication rides on the caller's existing platform user session rather than a separate API credential. Like No Auth, it has no configuration fields of its own.

Use it for APIs called from within the platform's own UI, where the user is already signed in and you want the API to run as that user.

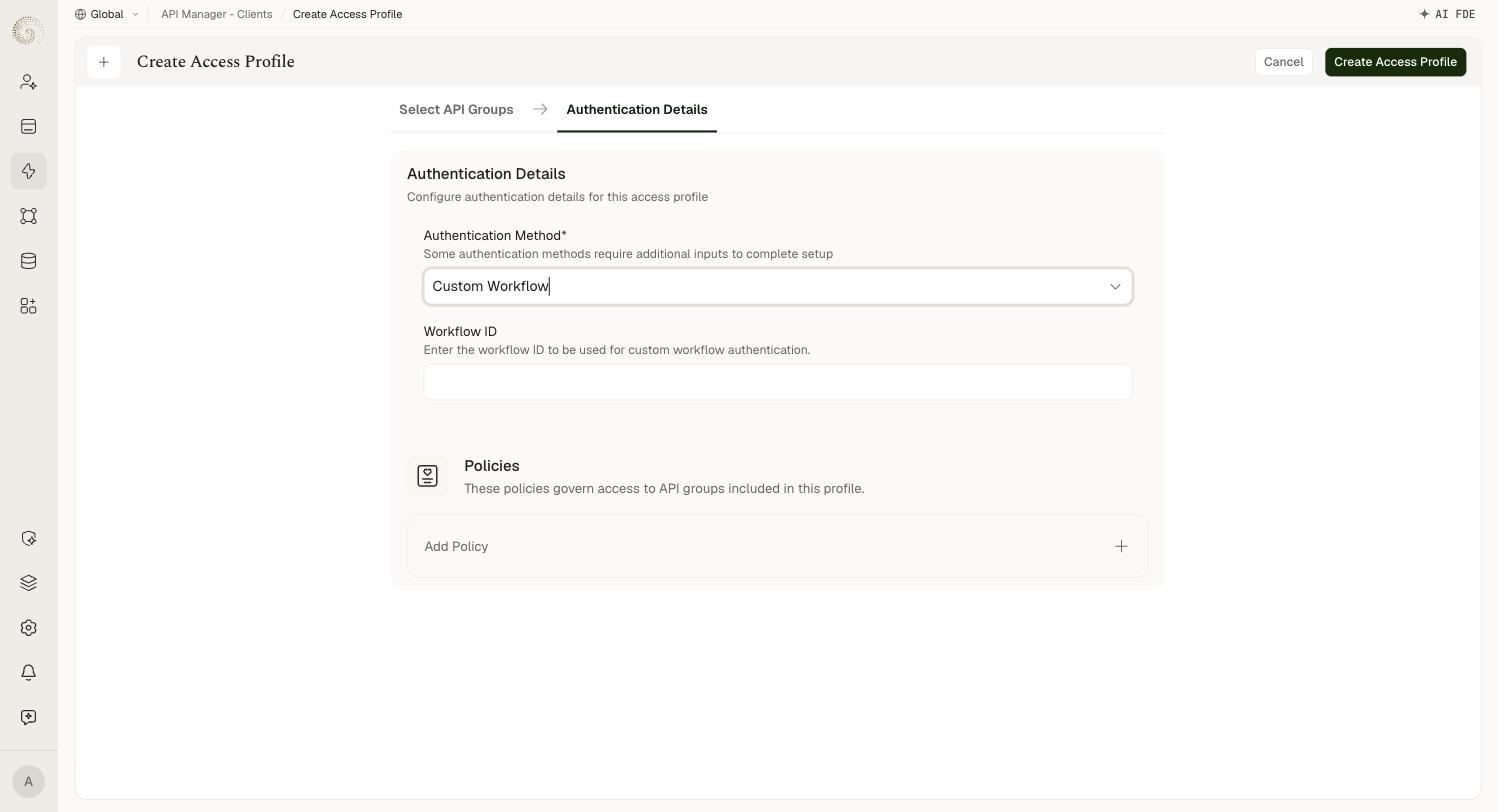

Custom Workflow

Delegates the authentication decision to a workflow you have built on the platform, letting you express arbitrary validation logic.

Field	Required	Details
Workflow ID	No	The ID of the workflow to be used for custom workflow authentication.

Choosing the Right Method

Method	Best For	Key Consideration
JSON Web Token	Partners and distributed systems where an identity provider already issues tokens; scenarios requiring short-lived credentials.	Requires the consumer to obtain and refresh tokens; strongest security guarantee. Prefer RS* so you never hold the signing key.
Auth Token	Server-to-server integrations and quick internal integrations.	Long-lived secret — must be kept secure and rotated if exposed.
Custom Token	Consumers that already hold a token you want to keep honouring.	You manage the token values; each value is unique to one access profile platform-wide.
OAuth2.0	Standard OAuth consumers where the platform should mint and refresh tokens.	Pick the grant type that matches the consumer; only Authorization Code needs redirect URLs.
Basic Auth	Consumers that specifically expect username/password auth.	Credentials travel on every request — only use over HTTPS.
External Authentication	Consumers already authenticated by Okta, OpenID Connect, a custom OAuth2.0 provider, or your own auth service.	Delegates trust to an external provider; adds a network hop on every request, so mind the timeout.
No Auth	Intentionally public endpoints where caller identity is not required.	No credential check — use only when the endpoint is meant to be open; apply other controls such as IP filtering.
User Session	APIs called from the platform UI by a signed-in user.	Only works where a platform session exists — not for external server-to-server callers.
Custom Workflow	Bespoke validation logic that none of the built-in methods express.	You own the correctness of the workflow; test it before pointing production traffic at it.

Whichever you choose, scope the access profile to the minimum collections and endpoints the consumer needs. Authentication proves identity; the profile's scope limits the blast radius if a credential leaks.

Notes

JWT is the default method and the preferred one for external partners — short-lived tokens reduce the window for a stolen credential to be exploited.
When configuring JWT, enforce the exp claim to prevent tokens from being valid indefinitely.
Prefer an RS* algorithm over HS* where you can: the platform then only stores a public key, so a leak of the platform's configuration does not let an attacker mint tokens.
Auth Token and Custom Token can look in headers, query params, or both. Prefer headers — query params end up in server logs, proxy logs, and browser history.
Basic Auth must only be used over HTTPS — credentials are base64-encoded, not encrypted, so they are readable in plain text on an unencrypted connection.
For External Authentication with Custom Auth, the Duration is a hard timeout on your auth endpoint. Set it low enough that a slow provider does not stall API traffic, and high enough to avoid false 401s.
No Auth and User Session take no configuration — if you select them expecting to fill something in, that is the intended behaviour, not a loading bug.
Scope access profiles tightly regardless of the method chosen — a leaked credential with a broad scope is far more damaging than one with a narrow scope.
