Can I insert more than one image into the same sheet?

Yes. Chain multiple Insert image operations, each targeting the same sheet name but a different cell position. Each operation receives the file output of the previous one, so all images are accumulated in the workbook.

What image formats are supported?

PNG and JPEG are supported. Use PNG for images that require transparency or sharp edges (such as logos with transparent backgrounds); use JPEG for photographs or images where file size matters more than lossless fidelity.

Does the image overlap existing cell data?

Yes — images float above the cell grid. An image placed at a cell position covers any data in the cells beneath it visually, but the underlying cell values are not altered. Readers opening the file in Excel can move or resize the image to expose the cells below.

The Excel node's media operation lets you embed an image into a specific location on a spreadsheet sheet — useful for inserting logos, charts exported as images, QR codes, or other visual assets into automated reports before they are stored or distributed.

Overview

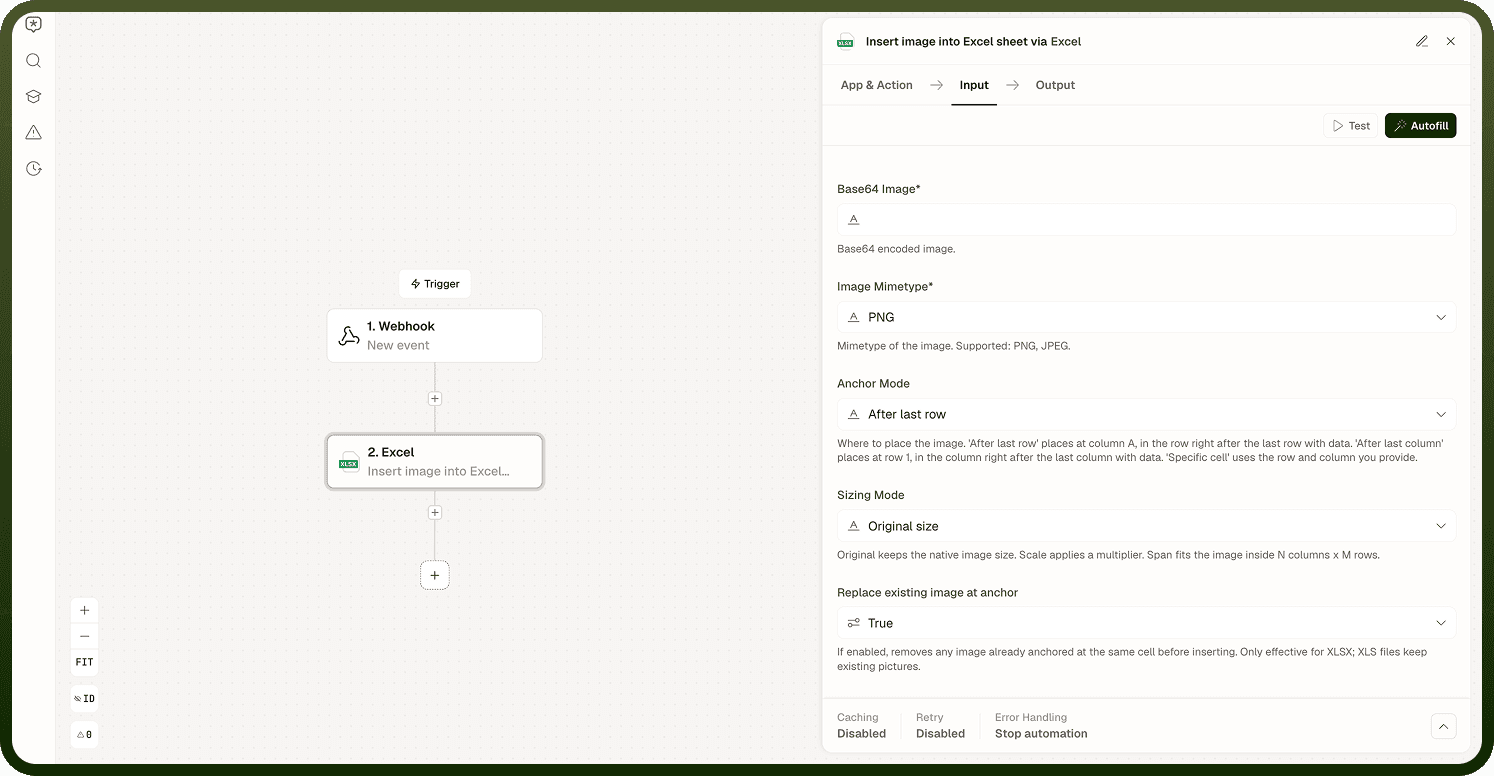

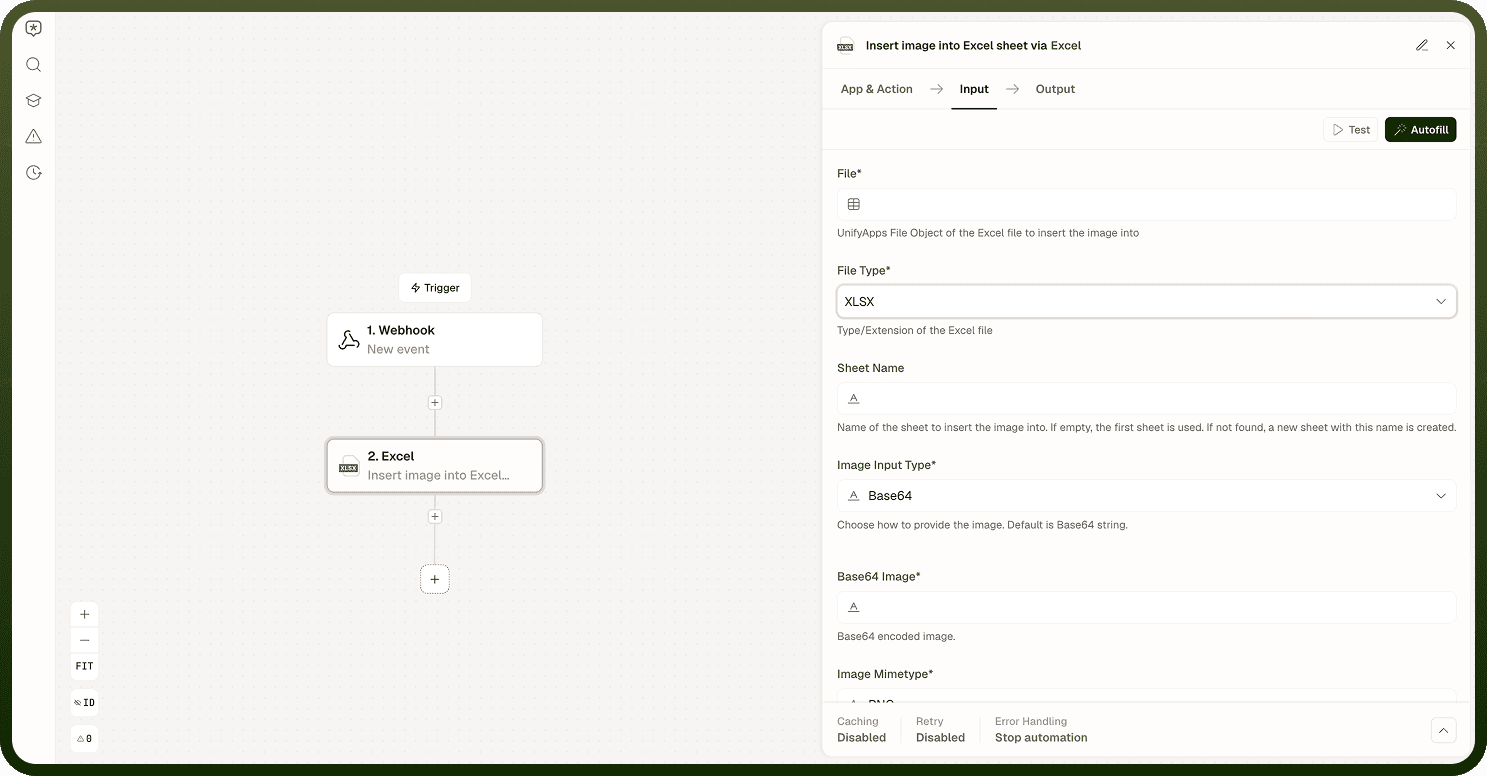

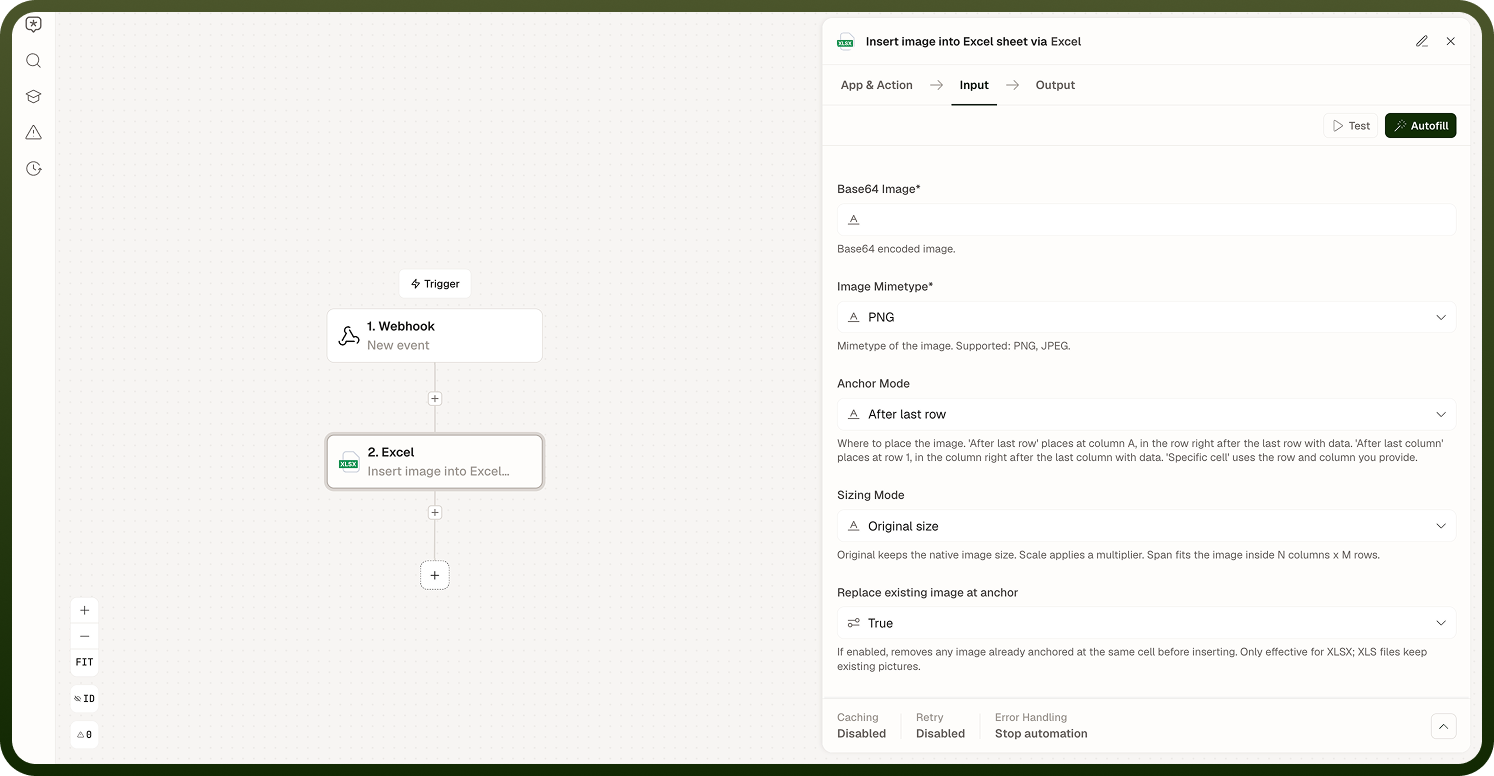

Insert image into Excel sheet takes an image — supplied either as Base64 text or as a file object — and places it on a named sheet of an Excel workbook. You control where the image is anchored (after the last row, after the last column, or at a specific cell) and how it is sized (its original size, a scale factor, or a span across a number of columns and rows). The image is embedded in the workbook file itself, so it travels with the file when it is stored or sent. This operation works on XLSX or XLS files; use the Format Conversion operations to convert a workbook into one of those formats beforehand if needed.


Operations

Operation	Description	Key inputs
Insert image into Excel sheet	Embeds an image (provided as Base64 text or a file object) into a sheet of an Excel workbook. The image is anchored using the chosen Anchor Mode and sized using the chosen Sizing Mode.	File, File Type, Sheet name, Image Input Type, Image Mimetype, Anchor Mode, Sizing Mode


Input

Field	Type	Required	Description
File	File reference	Yes	The Excel workbook into which the image will be embedded. Must be in XLSX or XLS format (set via File Type).
File Type	Enum	Yes	Type/extension of the Excel file: XLSX or XLS. Defaults to XLSX.
Sheet name	String	No	Name of the sheet to insert the image into. If left empty, the first sheet is used. If the named sheet is not found, a new sheet with that name is created.
Image Input Type	Enum	Yes	How the image is provided: Base64 (a Base64-encoded string) or File Object (a UnifyApps file object). Defaults to Base64.
Base64 Image	String	Yes — when Image Input Type is Base64	The Base64-encoded image to embed.
Input File	File reference	Yes — when Image Input Type is File Object	UnifyApps file object containing the image to embed.
Image Mimetype	Enum	Yes	Mimetype of the image: PNG or JPEG. Defaults to PNG.
Anchor Mode	Enum	Yes	Where to place the image: After last row (column A, in the row right after the last row with data), After last column (row 1, in the column right after the last column with data), or Specific cell (uses the Anchor Row and Anchor Column you provide). Defaults to After last row.
Anchor Row	Integer	Yes — when Anchor Mode is Specific cell	Row index (0-based) for the top-left corner of the image.
Anchor Column	String	Yes — when Anchor Mode is Specific cell	Column letter for the top-left corner of the image (e.g. A, B, AA).
Sizing Mode	Enum	Yes	Original size keeps the native image size, Scale factor applies a multiplier (Scale Factor), and Span N x M cells fits the image inside a number of columns and rows (Span Columns, Span Rows). Defaults to Original size.
Scale Factor	Number	Yes — when Sizing Mode is Scale factor	Multiplier applied to the original image size (1.0 = 100%).
Span Columns	Integer	Yes — when Sizing Mode is Span N x M cells	Number of columns the image should span.
Span Rows	Integer	Yes — when Sizing Mode is Span N x M cells	Number of rows the image should span.
Replace existing image at anchor	Boolean	No	If enabled, removes any image already anchored at the same cell before inserting the new one. Only effective for XLSX; XLS files keep existing pictures regardless of this setting. Defaults to true (enabled).

Output

Returns a single Success boolean confirming whether the image was inserted — the action does not return a new file object.

Notes

Image insertion requires the workbook to be in XLSX or XLS format (set via File Type). If the source file is XLSB, use Convert Excel file format to convert it to XLSX or XLS before inserting the image.
The image is anchored according to the chosen Anchor Mode — after the last row, after the last column, or at a specific cell (set via Anchor Row and Anchor Column). If rows or columns above or to the left of the anchor are added or removed after insertion, the image position relative to the sheet data may shift.
Sizing Mode controls how the image is scaled: Original size keeps the native image size, Scale factor applies a multiplier via Scale Factor, and Span N x M cells stretches the image to fit inside a number of columns and rows via Span Columns and Span Rows.
Enable Replace existing image at anchor to remove any image already anchored at the same cell before inserting the new one. This only applies to XLSX files — XLS files keep existing pictures regardless of this setting.
Images are embedded directly in the workbook file. Large or high-resolution images will increase the file size accordingly. Resize or compress images upstream if file size is a concern.
To insert images on multiple sheets or at multiple positions, chain multiple Insert image operations, each receiving the file output of the previous step.

XLSX or XLS required: The Insert image operation requires an XLSX or XLS workbook (set via File Type). If your source file is XLSB, run Convert Excel file format first to convert it to XLSX or XLS.
