The Code by UnifyApps node runs a script you write in Python, JavaScript, Java, Groovy, or C#, or invokes a method that already exists on the classpath. All six actions share the same data contract — you declare inputs, write the logic, and declare the shape of the result — but each language adds its own configuration: Python has environment and file handling, Java takes external JAR libraries, Groovy offers static compilation, and C# pulls packages from NuGet.

Overview

Language-specific execution lets you write in the language your team already knows, and reach for the Code node only where built-in nodes fall short. Inputs declared on the node become named variables inside the script; the script returns a result, and the output schema you declare on the node exposes each field as a data pill for downstream steps. Every script runs in an isolated sandbox with no implicit access to the host or to other scripts' state.

Pick the action that matches your language:

• Python for data analysis, transformation, and anything that needs third-party packages or file handling.

• JavaScript for JSON manipulation and lightweight, in-line logic.

• Java and Groovy for JVM work, enterprise integrations, and reuse of existing JAR libraries.

• C# for .NET logic and NuGet-backed libraries.

• Execute method from classpath when the logic already exists as a class on the classpath and you only need to call it.

Playwright scripts are also run by this node, but browser automation is covered on the Browser Automation page. Snippet and sandbox actions are covered on the Sandboxed / Snippet Execution page.

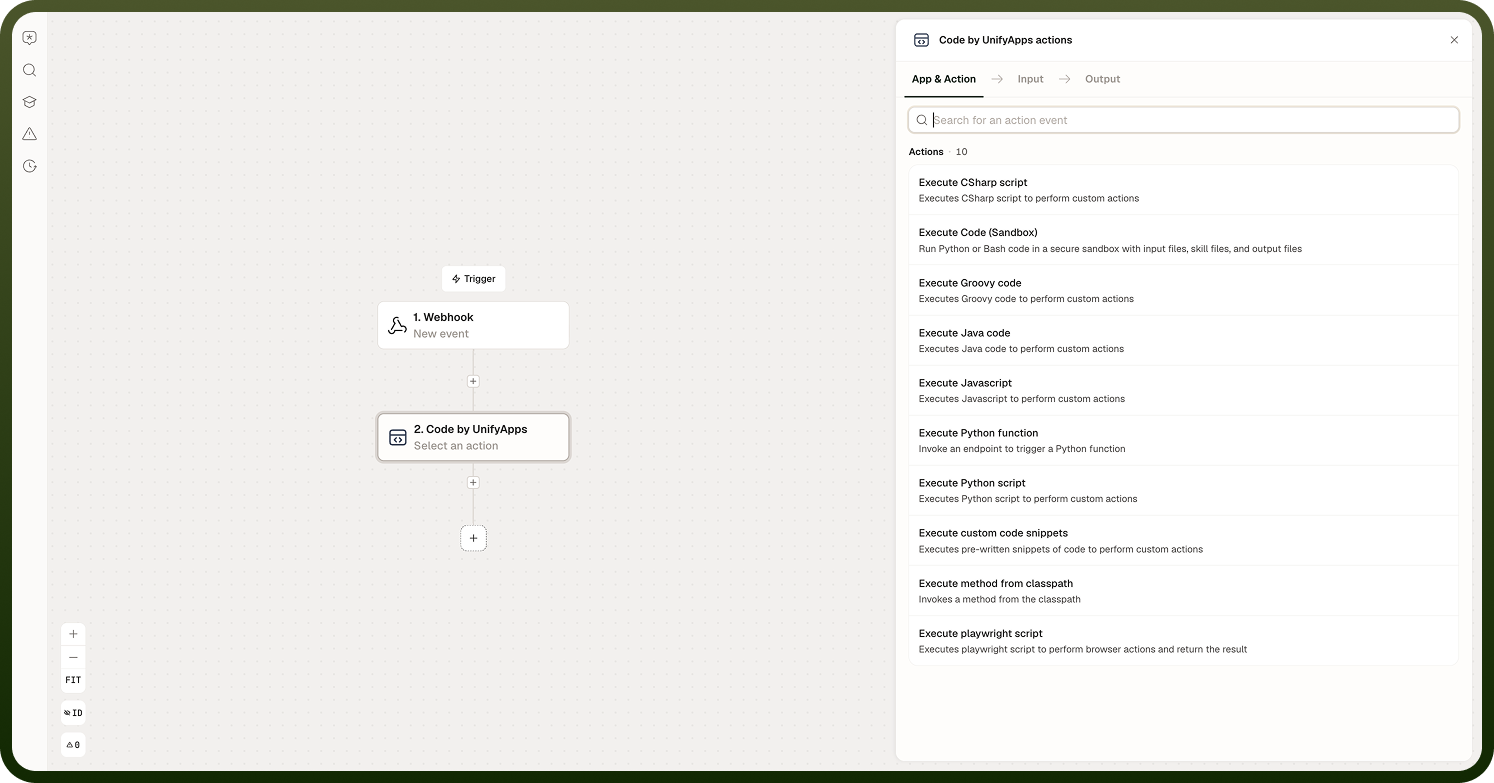

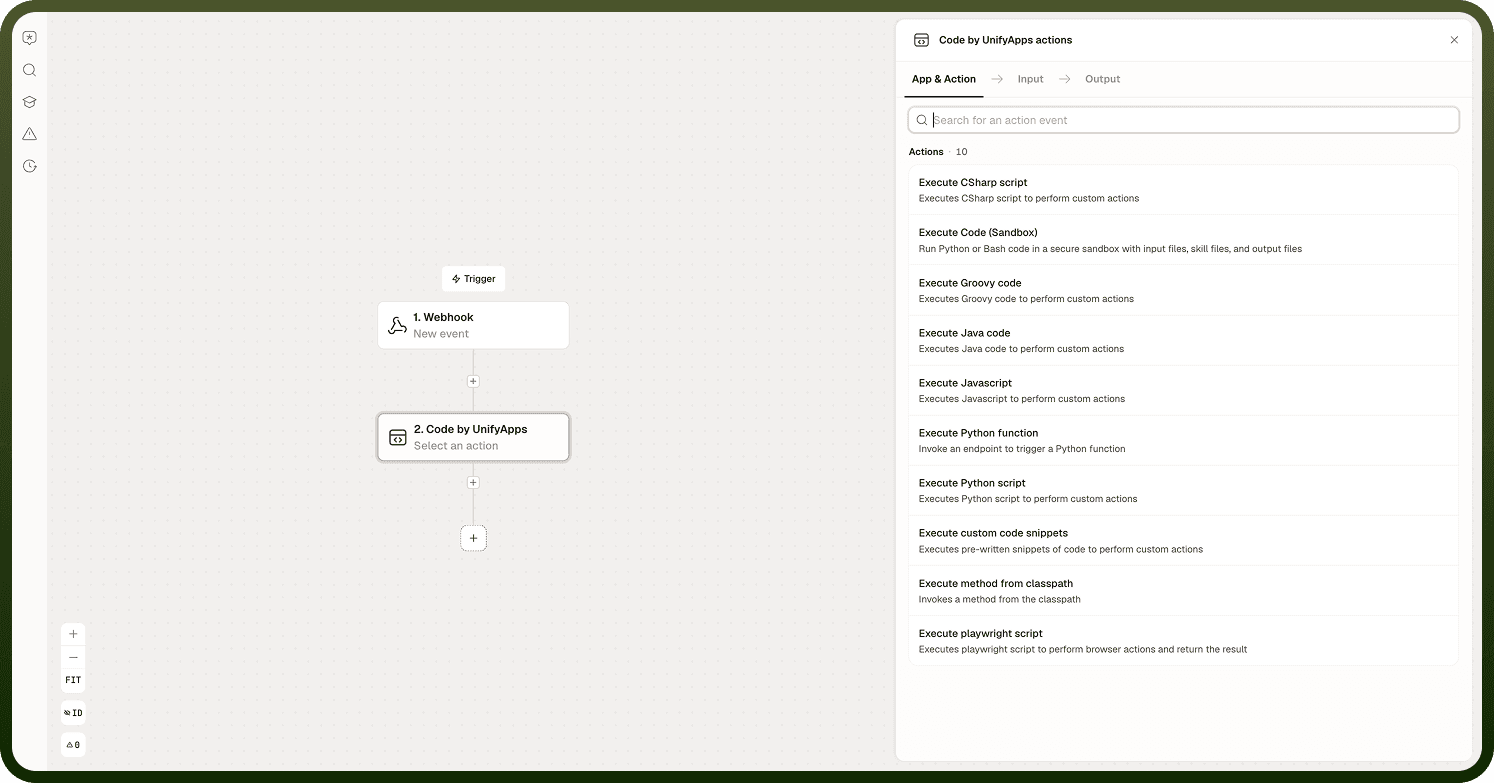

Code by UnifyApps node with the action list showing the language-specific execution actions

Actions

Common Configuration

Five of the six actions (everything except Execute method from classpath) present the same three fields in the same order: an input schema, an output schema, and a code editor for the selected language. Configure the schemas first — the platform uses them to generate the parameter mapping fields you fill in below the code.

Defining inputs

Under Define inputs to be used in the code, describe one or more parameters. Each becomes a variable inside the script, named exactly as you keyed it. When the input list is empty, three shortcuts are offered:

• Add Field — define one parameter at a time in the Add new input dialog.

• Use Code Snippet — paste a JSON sample and let the platform derive the schema from it.

• Map from step — reuse the schema produced by an earlier step in the automation.

The Add new input dialog takes the following:

Add new input dialog showing Key, Display Label, Type, Is Optional, and Nest under fields

Defining the output schema

Under Define the output schema of the code, describe the parameters your script returns. The Add new parameter dialog takes the same fields as the input dialog, and offers the same Add Field / Use Code Snippet / Map from step shortcuts.

The declared shape is what the builder uses to expose data pills to later steps — it is not strictly enforced at runtime. If your script omits a declared key, downstream steps referencing it receive an empty value rather than an error, so make sure the script actually returns everything it declares.

Execute Python script

The Python action has the widest configuration of the six. Beyond the shared schemas and code editor, it lets you pin an interpreter version, install packages, hand files to the script, and collect files the script writes.

Example. Inputs email_subject (String) and output parameters ticket_id and priority (String):

import re match = re.search(r"\[(\w+-\d+)\]", email_subject) ticket_id = match.group(1) if match else "" priority = "high" if "urgent" in email_subject.lower() else "normal" return { "ticket_id": ticket_id, "priority": priority }

Output. The Python action returns result — the object your script returned, mapped to the declared output schema — and outputFiles, the files matched by the Output Files Pattern.

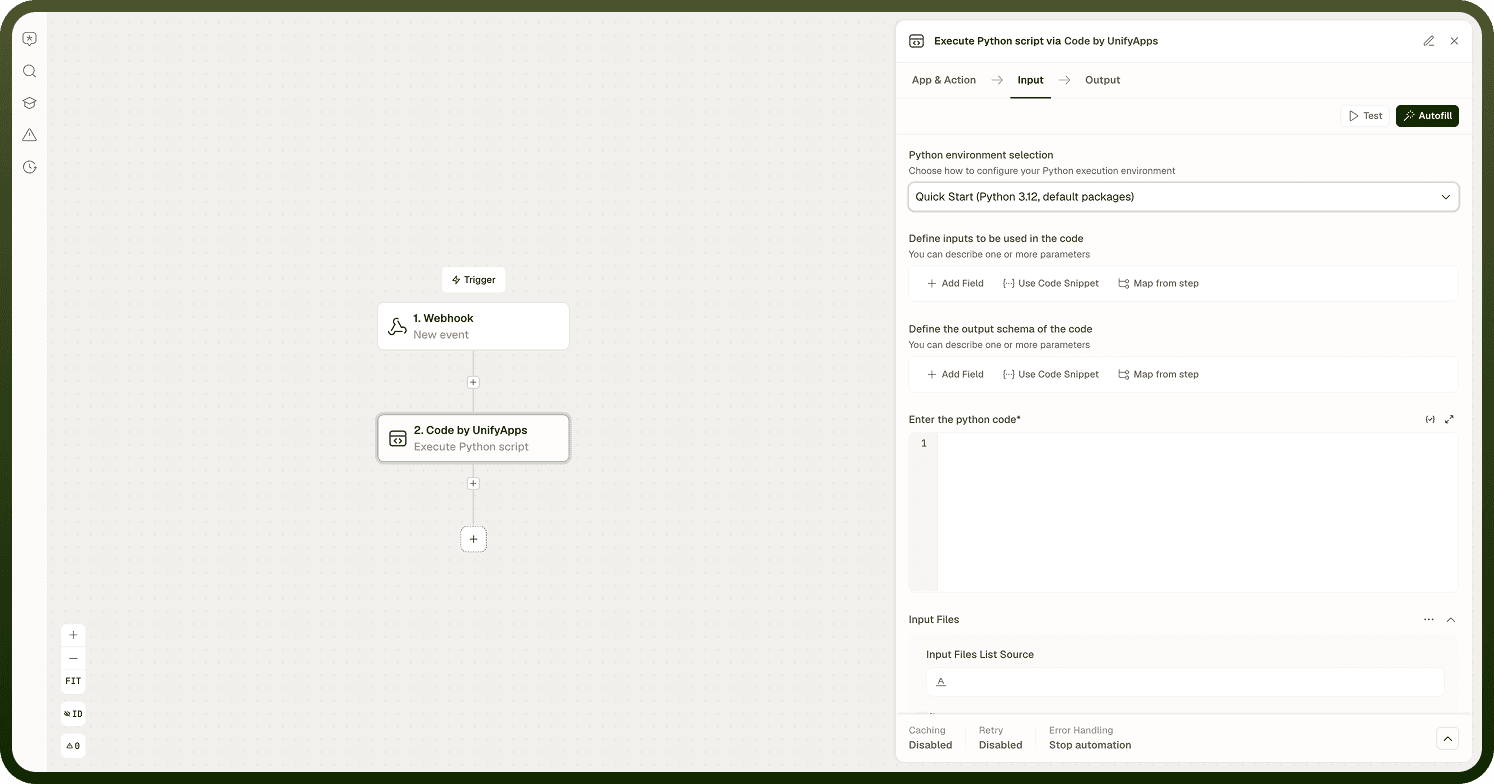

Execute Python script action showing environment selection, version, packages, and the code editor

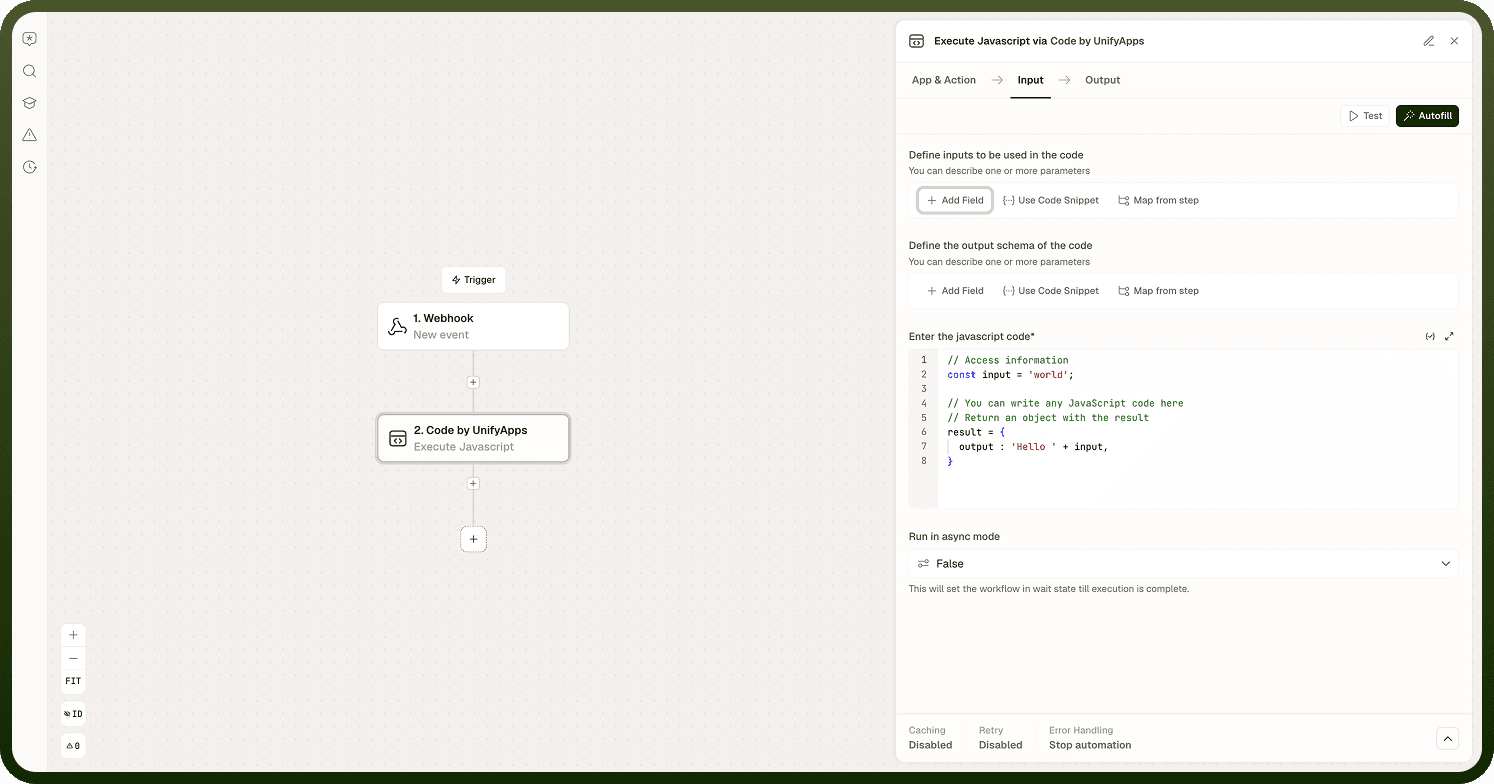

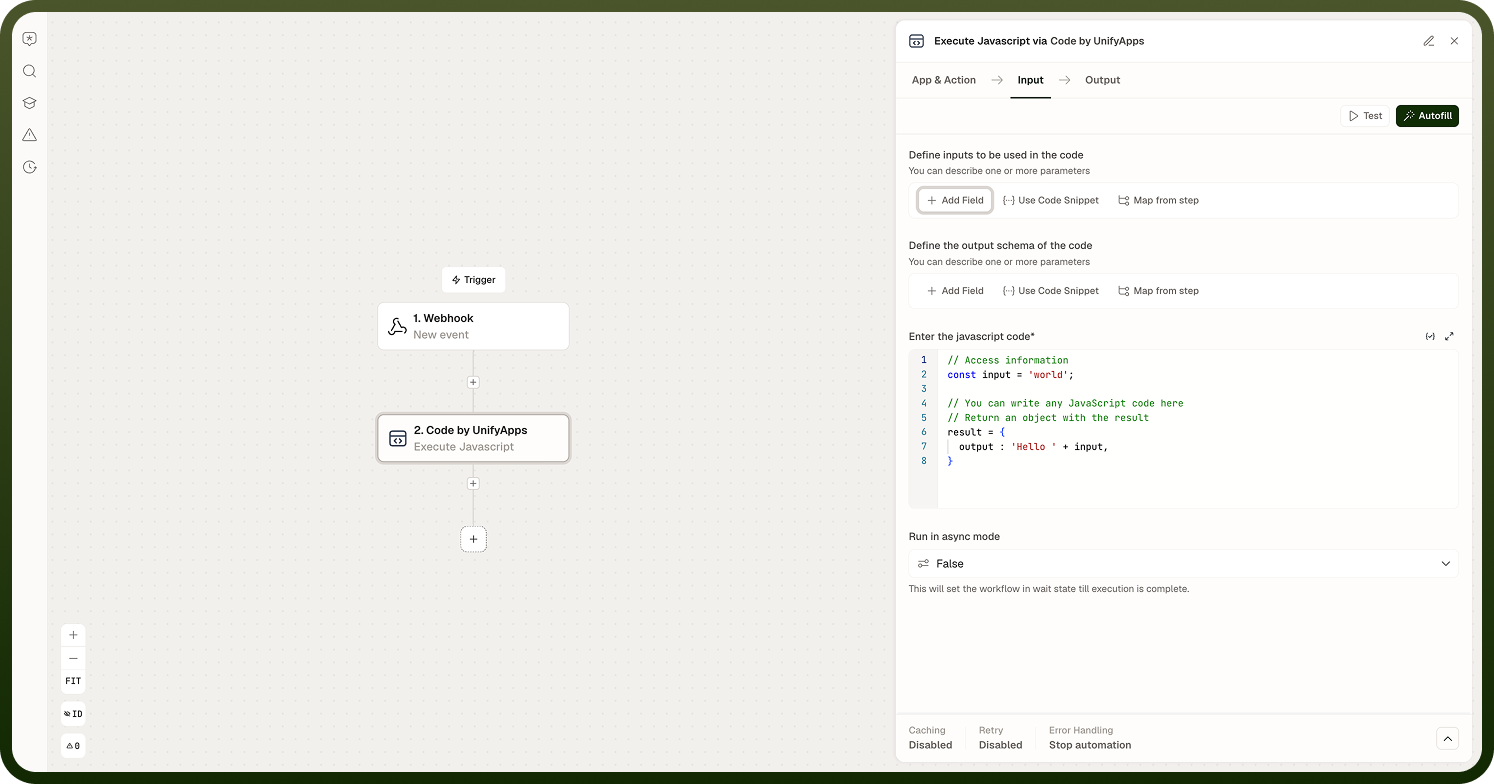

Execute Javascript

The leanest of the six actions: input schema, output schema, code editor, and async mode. There is no package configuration and no file handling — for work that needs libraries or files, use Python or one of the JVM actions.

Example. Input orders (Array of Object), outputs total (Number) and count (Integer):

const total = orders.reduce((sum, o) => sum + o.amount, 0); return { total: total, count: orders.length };

Output. Returns result, mapped to the declared output schema. Standard output is not captured for this action — return any diagnostic values you need as part of the result.

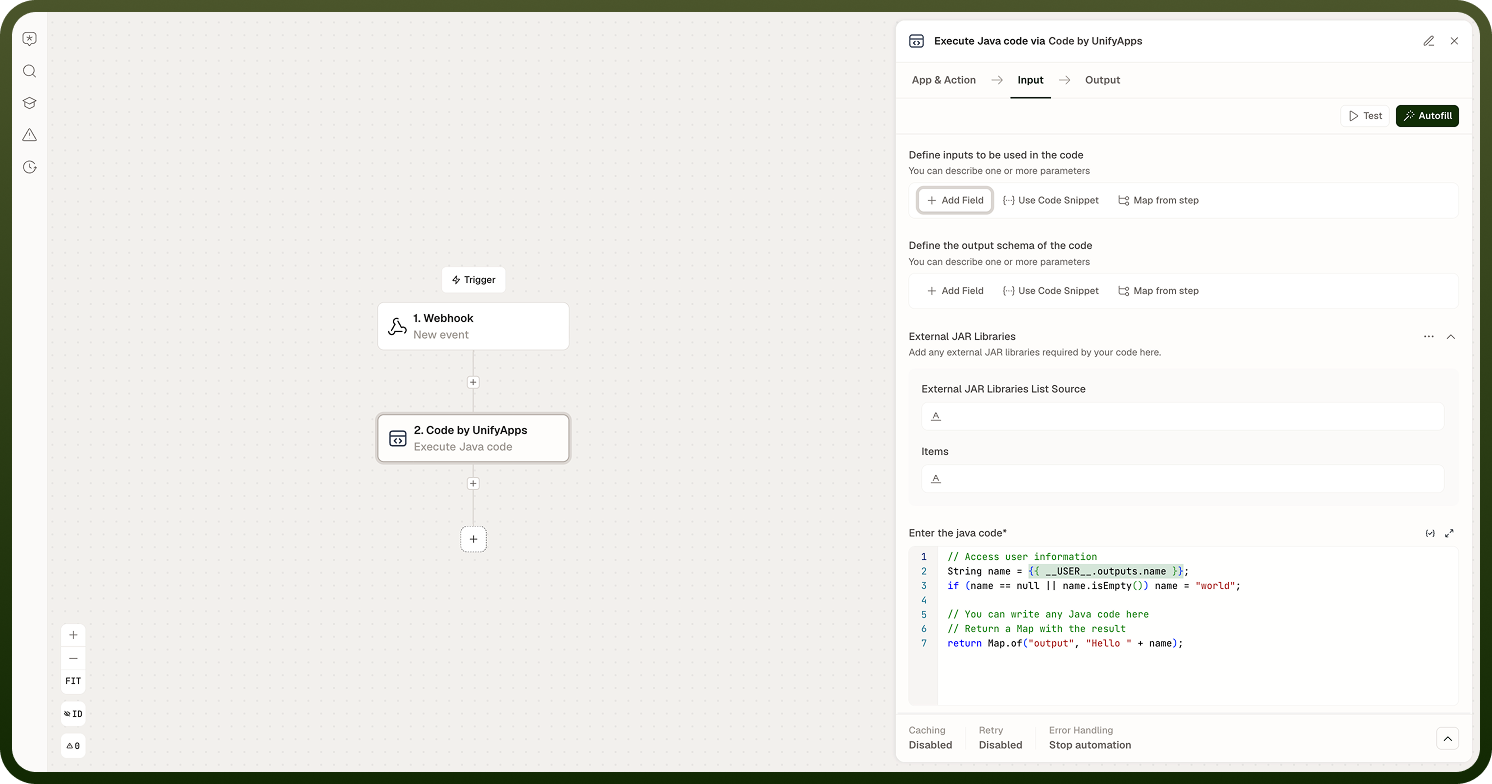

Execute Java code

Runs Java on the JVM, with the option to bring in external JAR libraries. There is no async mode for this action — Java steps run synchronously, so keep the work bounded.

Example. Input customerName (String), outputs normalized (String) and length (Integer):

Map<String, Object> result = new HashMap<>(); String normalized = customerName.trim().toUpperCase(); result.put("normalized", normalized); result.put("length", normalized.length()); return result;

Output. Returns result, mapped to the declared output schema.

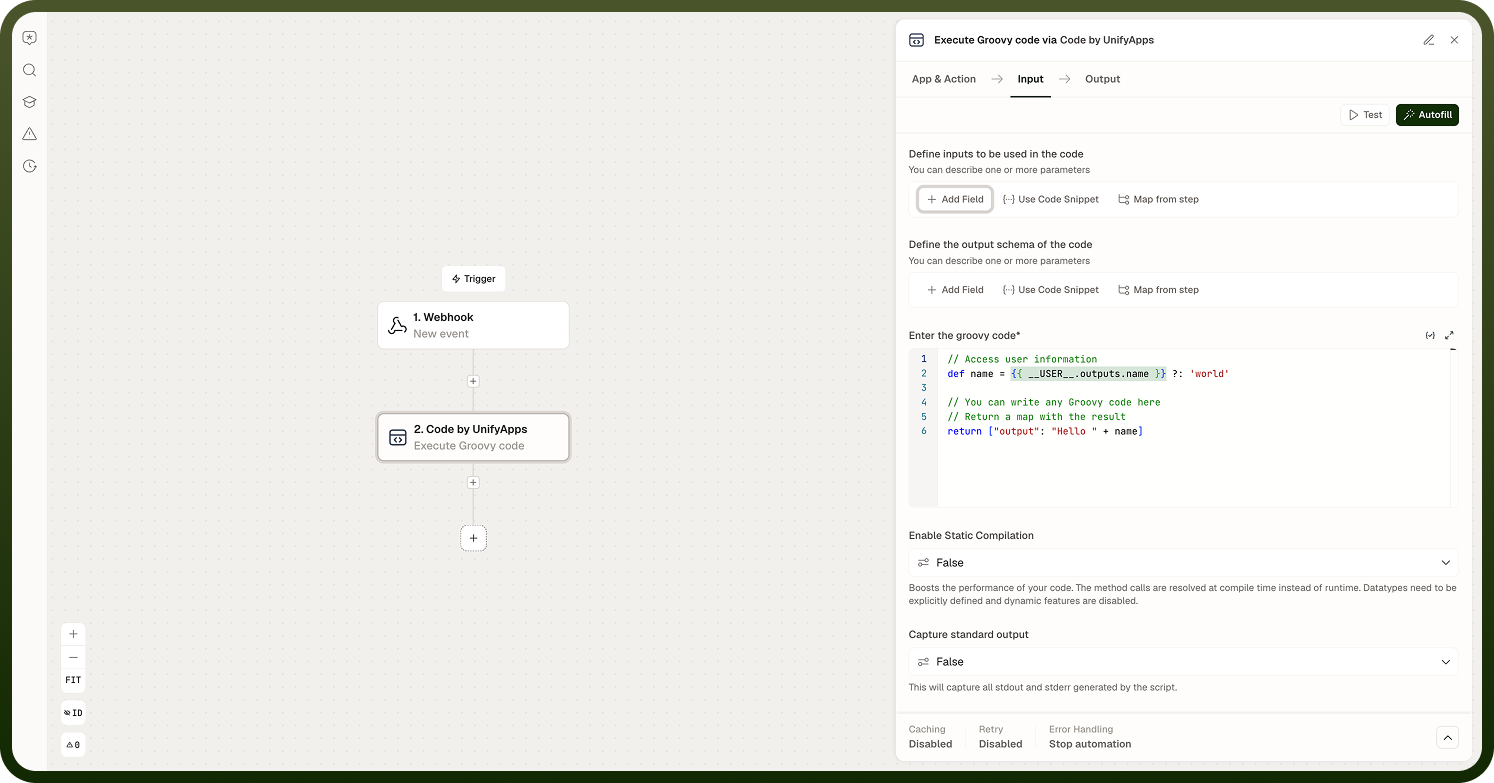

Execute Groovy code

Runs Groovy on the JVM. Groovy is a good fit when you want concise scripting with access to Java libraries. This action adds a static compilation switch and offers no async mode.

Example. Input amount (Number), output formatted (String):

String formatted = String.format("%.2f", amount) return [ formatted: formatted ]

Output. Returns result, mapped to the declared output schema.

Static compilation is a trade-off. It speeds execution but disables dynamic dispatch, so untyped variables and dynamic method calls that work with it off will fail to compile with it on. Turn it on when your script already declares types throughout.

Execute CSharp script

Runs a C# script. External libraries are not selected in the node — you declare NuGet package references at the top of the script itself.

Example. Input payload (String), output itemCount (Integer), using a NuGet reference:

#r "nuget: Newtonsoft.Json" using Newtonsoft.Json.Linq; var parsed = JArray.Parse(payload); return new { itemCount = parsed.Count };

Output. Returns result, mapped to the declared output schema.

Execute method from classpath

Calls a method that already exists on the classpath instead of running a script you write. Use it to reuse enterprise business logic without re-implementing it in a Code node. There is no code editor for this action — you supply the class, the method, and the arguments, then describe what comes back.

Output. Returns result, mapped to the return object schema you defined.

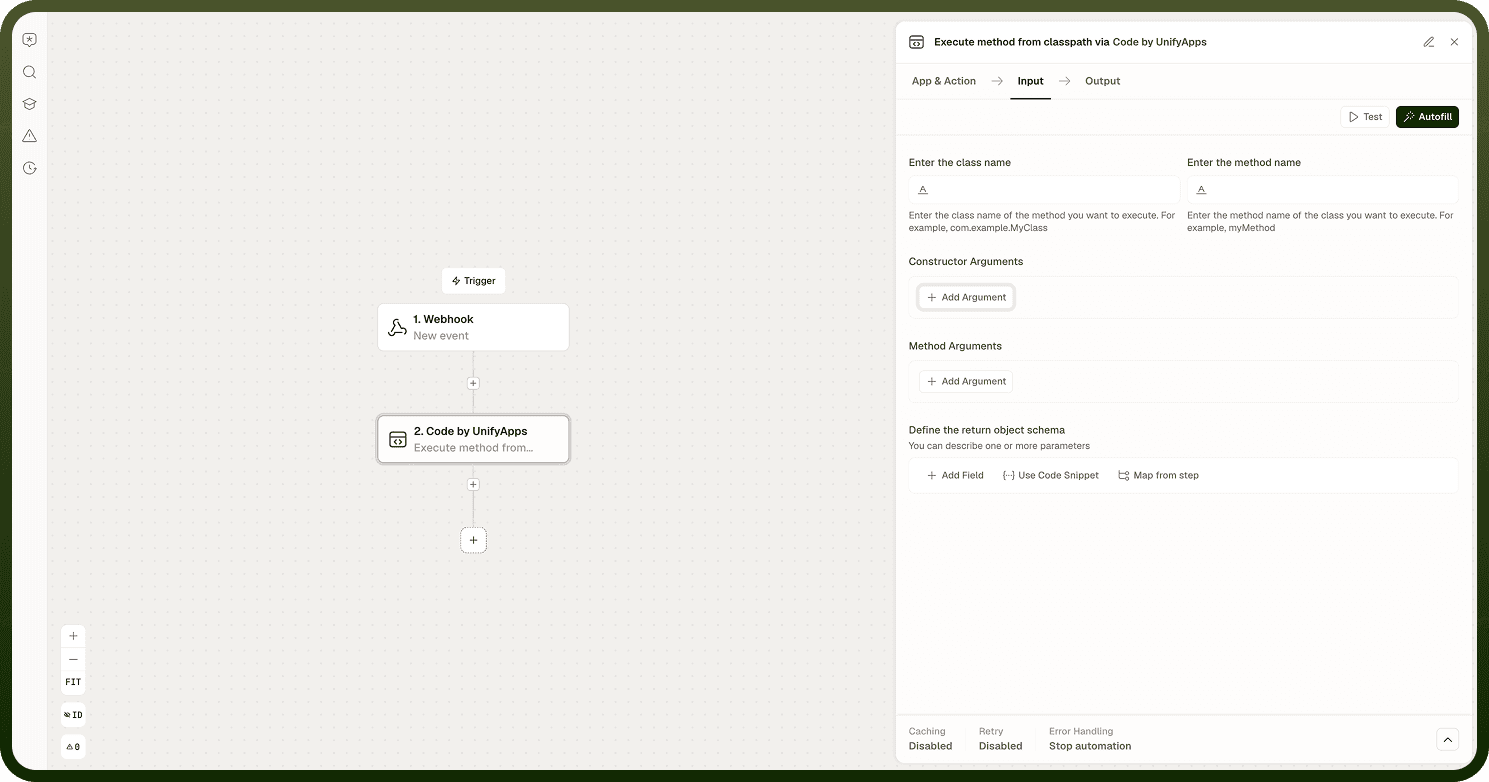

Execute method from classpath action showing class name, method name, constructor arguments, and method arguments

Capabilities by Action

Not every option is offered for every language. Use this table to pick the action before you start writing.

Notes

• Input and output keys are used verbatim in your code. Match the casing exactly — a mismatch produces an undefined variable, not a mapping error.

• The declared output shape is for builder convenience and is not strictly enforced at runtime. Return every key you declare, or downstream steps will read empty values.

• Python defaults to version 3.12 under Quick Start. Choose Custom Setup to select any version from 3.8 to 3.13, and match it to the syntax your script uses.

• Quick Start ships the default package set, so simple data-transformation scripts need no package configuration. Use Custom Setup for anything beyond that set, and a pre-configured virtual environment when several automations must run on identical versions and packages.

• Python input files are addressed by the name you assign in Input Files, not by their original filename. Output files are collected only if they match the Output Files Pattern; the default * uploads everything.

• Async mode exists only for Python, JavaScript, and C#. Java, Groovy, and classpath invocations run synchronously — split heavy work rather than letting a step run long.

• Standard output capture exists for Python, Java, Groovy, and C#, but not for JavaScript. Return diagnostic values in the result if you need them from a JavaScript step.

• Groovy's Enable Static Compilation requires explicitly declared data types and disables dynamic features. Leave it off unless the script is written for it.

• All scripts run isolated in a sandbox — no implicit access to the host system or to other scripts' state. Pass everything the script needs in as a declared input.

• Library availability differs by language. See the Code by UnifyApps introduction page for the supported Python library list; for Java, JavaScript, and Groovy libraries not already available, contact support@unifyapps.com.

Prefer the language your team maintains most comfortably. Use the Code node as an escape hatch for the parts of an automation that built-in nodes cannot cover, and keep the rest of the automation in standard nodes.
