What is the difference between Execute REST Request and Execute REST Multipart Request?

Use Execute REST Request for standard JSON, form-encoded, or plain-text payloads. Use Execute REST Multipart Request when the API expects file uploads or a mixed payload of files and text fields encoded as multipart/form-data.

Is the response body always a string?

Yes. The node returns the raw response body as a string regardless of its content type. Use a JSON parse step or expression in the next node to access nested properties if the body is JSON.

How do I send a JSON body?

Set the Request Body field to your JSON string and add a Header entry with key Content-Type and value application/json.

Should I put query parameters in the URL directly or in the Query Parameters field?

Use the Query Parameters field. It handles URL encoding automatically and keeps the URL readable. Values placed directly in the URL string are passed as-is and may cause errors if they contain special characters.

Execute REST request- UnifyApps

Execute REST Request sends a standard HTTP call to any URL with full control over the method, headers, query parameters, and body. Use it to call any REST API endpoint that does not require file uploads or streaming responses.

Overview

The Execute REST Request action is the standard, general-purpose HTTP call within the Custom HTTP node. You specify the HTTP method, the endpoint URL, any request headers, query parameters to append to the URL, and an optional request body. The remote server's response — including its status code, headers, and body — is returned as output for use in subsequent steps.

HTTP error statuses such as 4xx and 5xx are returned as part of the response rather than being raised as automation failures. This lets your automation inspect the status code and take the appropriate action — retry on a 429, handle a 404 differently from a 401 — rather than stopping unconditionally on any error response.

Input

Field	Description	Required*
Method	HTTP method for the request: GET, POST, PUT, PATCH, DELETE, HEAD, or OPTIONS.	Yes
URL	The full endpoint URL for the request (e.g., https://api.example.com/users/123).	Yes
Headers	Key-value pairs added to the HTTP request headers, such as Content-Type, Accept, or Authorization.	No
Query Parameters	Key-value pairs appended to the URL as a query string (e.g., page=1&limit=25). Values are URL-encoded automatically.	No
Request Body	The body payload sent with the request. Typically JSON or plain text; set Content-Type in Headers to match the body format.	No
Authentication Type	Authentication scheme: None, Basic, or Custom.	No
Username	Username for Basic authentication. Active only when Authentication Type is Basic.	No
Password	Password for Basic authentication. Active only when Authentication Type is Basic.	No
Custom Auth Configuration	Configuration object for a custom authentication scheme. Active only when Authentication Type is Custom.	No
SSL Verification	Verify the server's TLS certificate. Enabled by default; disable only in fully trusted, non-production environments.	No
Proxy URL	Route the request through an HTTP or HTTPS proxy. Use when the target host is reachable only via a proxy.	No
Run Asynchronously	Execute the request in the background; the automation continues immediately and the response is delivered when the call completes.	No

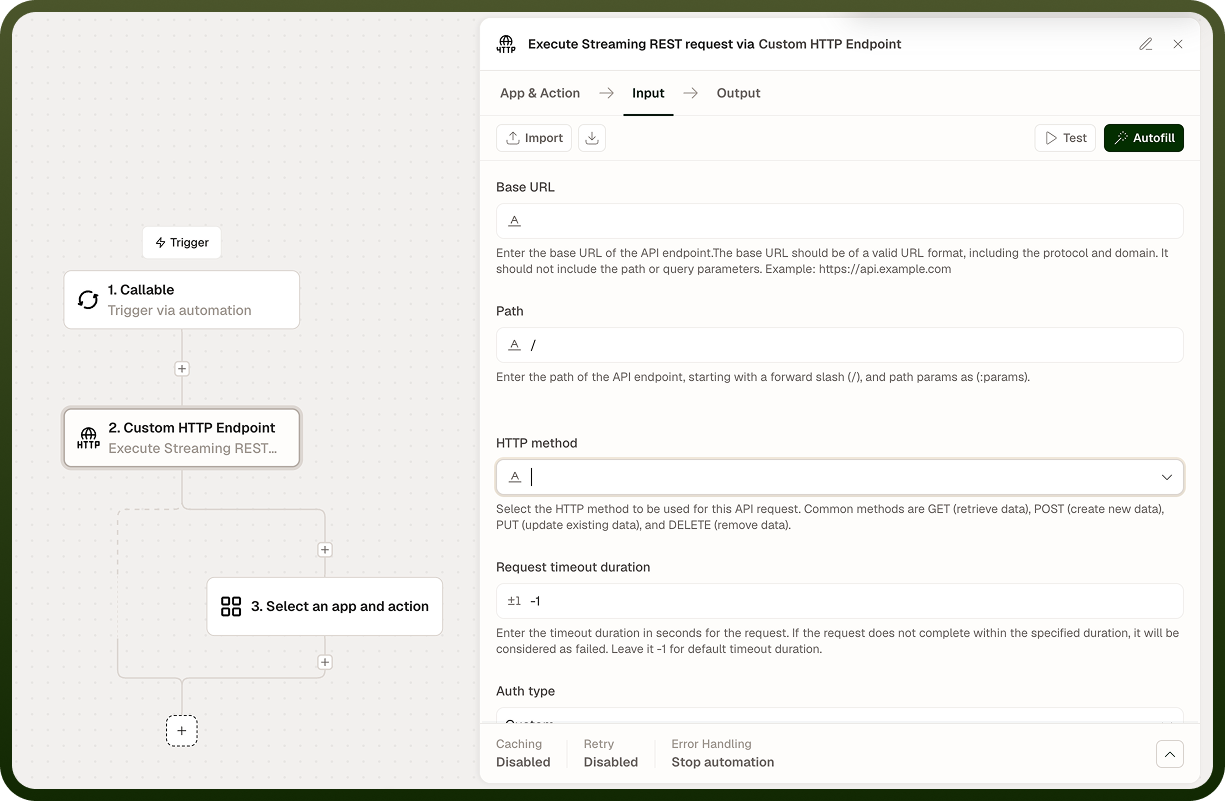

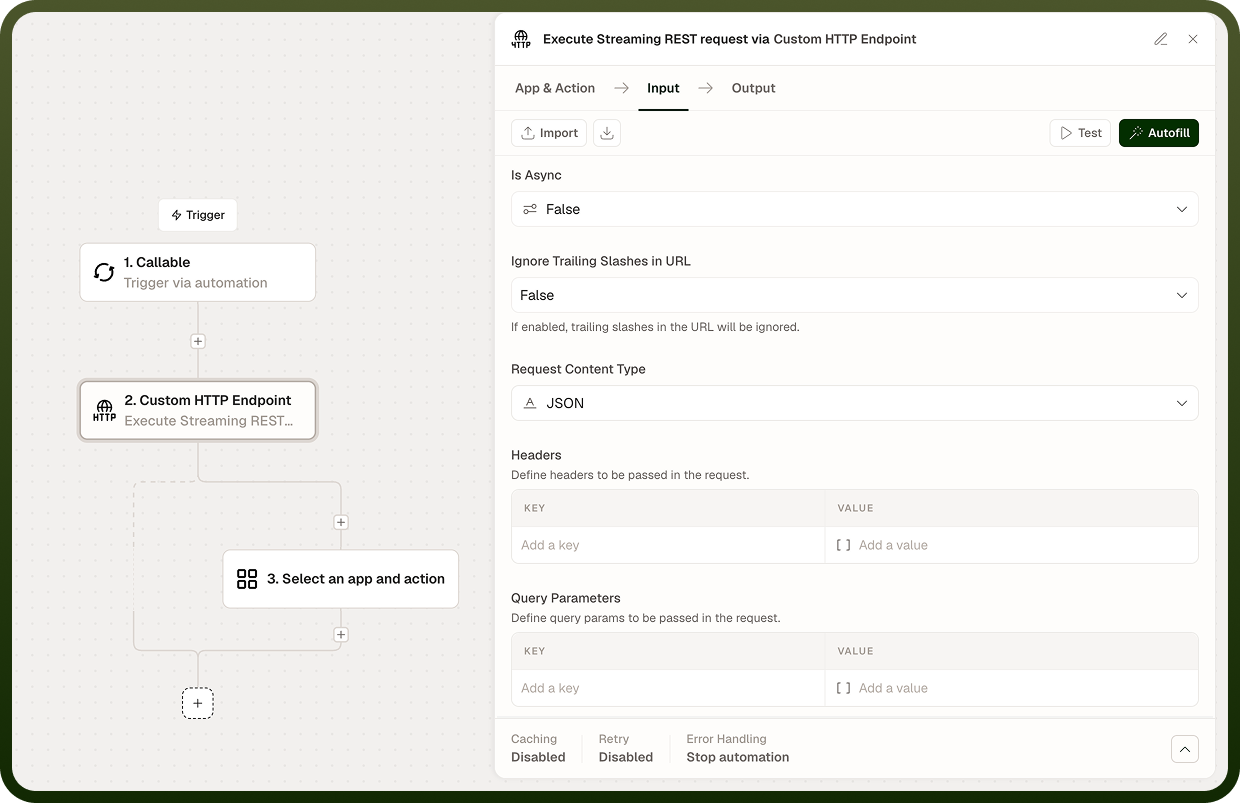

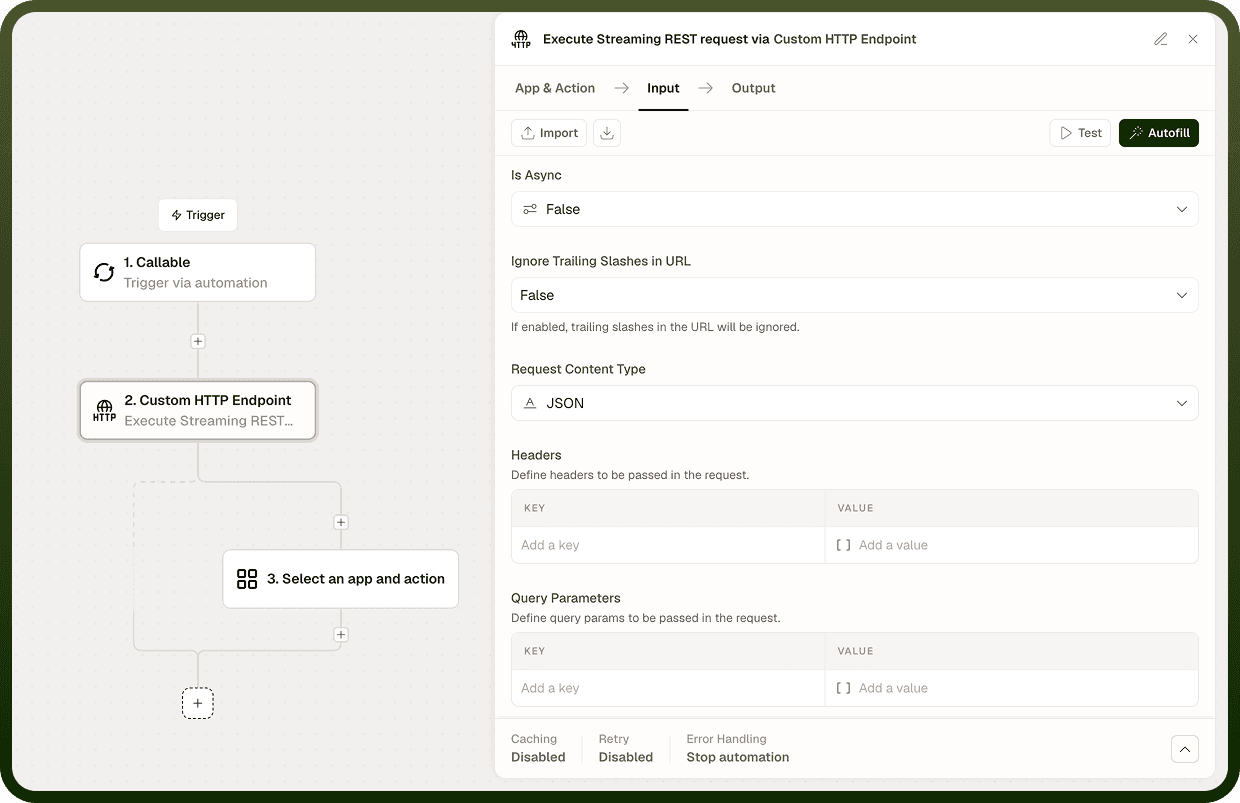

Execute REST Request node Input tab showing method, URL, headers, query parameters, and request body configured

* Required fields must be populated for the node to run.

Output

Field	Description
Status Code	The HTTP status code returned by the remote server (e.g., 200, 404, 500).
Response Body	The raw response body as a string. Parse it in a subsequent step to access nested fields.
Response Headers	A map of the response header names and values returned by the server.

Execute REST Request node Output tab showing status code, response body, and response headers

Notes

GET and HEAD requests should not include a body; body content sent with them may be ignored or rejected by some servers.
Set Content-Type: application/json in Headers when sending a JSON body. The node does not infer Content-Type from the body format.
Query Parameters are URL-encoded automatically. Do not manually encode values already placed in this field — double-encoding will break the request.
HTTP 4xx and 5xx responses are returned in Output and do not halt the node. Check Status Code before treating any response as successful.
The response body is always returned as a raw string. Use a JSON parse expression in the next step to access individual fields.
A connection-level failure (host unreachable, TLS error) is a true node error and halts the automation; this is distinct from an HTTP error status returned by a reachable server.
